Collection: Mounts - Levelling Studded - Standard - Gold Chromate

Mounts -> Levelling Studded -> Standard -> Gold Chromate

There are 21 products in the sub-categories of Mounts - Levelling Studded - Standard - Gold Chromate. Scroll down or follow the link to Mounts - Levelling Studded - Standard - Gold Chromate in the products table to see all these items combined into a handy table with filters.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

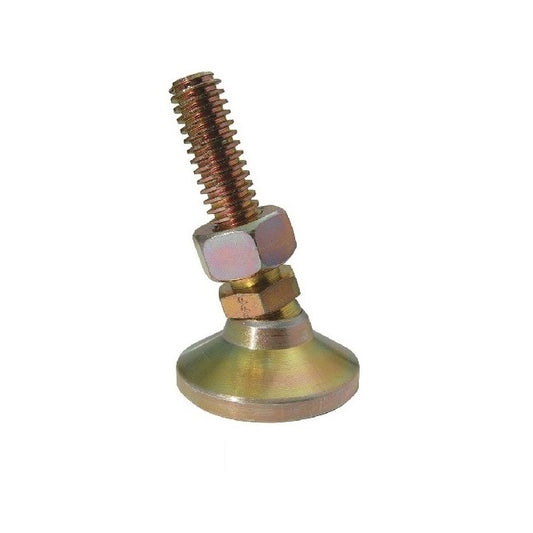

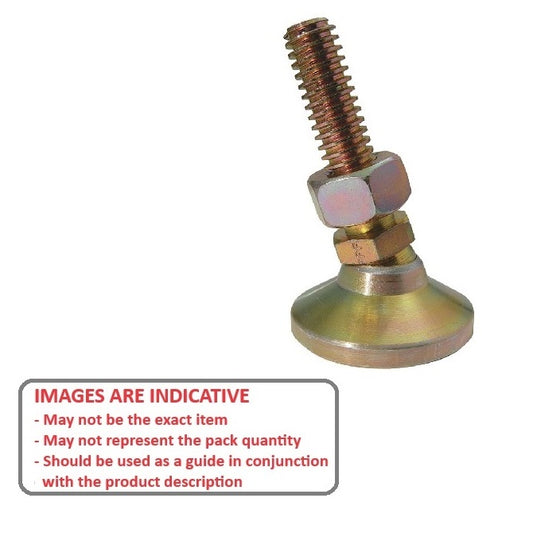

A selection of Gold Chromate Standard Levelling Studded Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.

An expanded range may be available on special order. Please enquire.
Load is distributed over 120^o of full radial contact rather than a single radial contact point, providing greater weight distribution between the ball and pad.
Zinc plated steel with case hardened ball.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Mounts - Levelling Studded - Standard - Gold Chromate category on the Small Parts & Bearings online store.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm	Base Height (E) 2.78 mm	Overall Height 38.9 mm
Material: Steel Load Rating: 315 Kg Finish: Gold Chromate Hex Flats (B): 9.525 mm
Part Number: MLM-048F-025-CGC (50 Pcs) Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19,194.41 AUD Regular price Sale price $19,194.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 38.9 mm Load Rating: 315 Kg Finish: Gold Chromate Hex Flats (B): 9.525 mm
Part Number: MLM-048F-025-CGC (50 Pcs) Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19,194.41 AUD Regular price Sale price $19,194.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-048F-025-CGC (50 Pcs) --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount MLM-048F-025-CGC (50 Pcs) --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Regular price $19,194.41 AUD Regular price Sale price $19,194.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm	Base Height (E) 2.78 mm	Overall Height 64.3 mm
Material: Steel Load Rating: 315 Kg Finish: Gold Chromate Hex Flats (B): 9.525 mm
Part Number: MLM-048F-051-CGC Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $15.05 AUD Regular price ~~$18.05 AUD~~ Sale price $15.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 2.78 mm Overall Height: 64.3 mm Load Rating: 315 Kg Finish: Gold Chromate Hex Flats (B): 9.525 mm
Part Number: MLM-048F-051-CGC Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $15.05 AUD Regular price ~~$18.05 AUD~~ Sale price $15.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-048F-051-CGC --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Sale MLM-048F-051-CGC --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Steel Mount Regular price $15.05 AUD Regular price ~~$18.05 AUD~~ Sale price $15.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm	Base Height (E) 2.80 mm	Overall Height 38.9 mm
Material: Steel Load Rating: 315 Kg Finish: Gold Chromate Hex Flats (B): 10.00 mm
Part Number: MLM-060M-025-CGC Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm
Material: Steel Base Height (E): 2.80 mm Overall Height: 38.9 mm Load Rating: 315 Kg Finish: Gold Chromate Hex Flats (B): 10.00 mm
Part Number: MLM-060M-025-CGC Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-060M-025-CGC --- Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Sale MLM-060M-025-CGC --- Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Steel Mount Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm	Base Height (E) 3.97 mm	Overall Height 49.7 mm
Material: Steel Load Rating: 500 Kg Finish: Gold Chromate Hex Flats (B): 12.700 mm
Part Number: MLM-064C-032-CGC Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $172.32 AUD Regular price ~~$206.78 AUD~~ Sale price $172.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 49.7 mm Load Rating: 500 Kg Finish: Gold Chromate Hex Flats (B): 12.700 mm
Part Number: MLM-064C-032-CGC Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $172.32 AUD Regular price ~~$206.78 AUD~~ Sale price $172.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-064C-032-CGC --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Sale MLM-064C-032-CGC --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Regular price $172.32 AUD Regular price ~~$206.78 AUD~~ Sale price $172.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 38.1 mm	Base Height (E) 3.97 mm	Overall Height 56.0 mm
Material: Steel Load Rating: 500 Kg Finish: Gold Chromate Hex Flats (B): 12.700 mm
Part Number: MLM-064C-038-CGC Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 38.1 mm
Material: Steel Base Height (E): 3.97 mm Overall Height: 56.0 mm Load Rating: 500 Kg Finish: Gold Chromate Hex Flats (B): 12.700 mm
Part Number: MLM-064C-038-CGC Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-064C-038-CGC --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Sale MLM-064C-038-CGC --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Steel Mount Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.8 mm (Equiv. 0.701 in.)	Thread Length (F) 31.8 mm	Base Height (E) 3.80 mm	Overall Height 49.6 mm
Material: Steel Load Rating: 500 Kg Finish: Gold Chromate Hex Flats (B): 13.00 mm
Part Number: MLM-080M-032-CGC Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.8 mm (Equiv. 0.701 in.)	Thread Length (F) 31.8 mm
Material: Steel Base Height (E): 3.80 mm Overall Height: 49.6 mm Load Rating: 500 Kg Finish: Gold Chromate Hex Flats (B): 13.00 mm
Part Number: MLM-080M-032-CGC Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-032-CGC --- Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Sale MLM-080M-032-CGC --- Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Steel Mount Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm	Base Height (E) 4.76 mm	Overall Height 123.8 mm
Material: Steel Load Rating: 1700 Kg Finish: Gold Chromate Hex Flats (B): 15.875 mm
Part Number: MLM-095C-102-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 123.8 mm Load Rating: 1700 Kg Finish: Gold Chromate Hex Flats (B): 15.875 mm
Part Number: MLM-095C-102-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-102-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Sale MLM-095C-102-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm	Base Height (E) 4.76 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Gold Chromate Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $182.86 AUD Regular price ~~$219.44 AUD~~ Sale price $182.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 4.76 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Gold Chromate Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CGC Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $182.86 AUD Regular price ~~$219.44 AUD~~ Sale price $182.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-051-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Sale MLM-095C-051-CGC --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount Regular price $182.86 AUD Regular price ~~$219.44 AUD~~ Sale price $182.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm	Base Height (E) 5.00 mm	Overall Height 73.0 mm
Material: Steel Load Rating: 1700 Kg Finish: Gold Chromate Hex Flats (B): 17.00 mm
Part Number: MLM-100M-051-CGC Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $24.23 AUD Regular price ~~$29.07 AUD~~ Sale price $24.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 5.00 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Finish: Gold Chromate Hex Flats (B): 17.00 mm
Part Number: MLM-100M-051-CGC Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $24.23 AUD Regular price ~~$29.07 AUD~~ Sale price $24.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-051-CGC --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Sale MLM-100M-051-CGC --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Steel Mount Regular price $24.23 AUD Regular price ~~$29.07 AUD~~ Sale price $24.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm	Base Height (E) 6.00 mm	Overall Height 80.0 mm
Material: Steel Load Rating: 2270 Kg Finish: Gold Chromate Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-CGC Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $41.14 AUD Regular price ~~$49.36 AUD~~ Sale price $41.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 6.00 mm Overall Height: 80.0 mm Load Rating: 2270 Kg Finish: Gold Chromate Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-CGC Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $41.14 AUD Regular price ~~$49.36 AUD~~ Sale price $41.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-051-CGC --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Sale MLM-120M-051-CGC --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Steel Mount Regular price $41.14 AUD Regular price ~~$49.36 AUD~~ Sale price $41.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm	Base Height (E) 6.35 mm	Overall Height 130.2 mm
Material: Steel Load Rating: 2270 Kg Finish: Gold Chromate Hex Flats (B): 19.05 mm
Part Number: MLM-127C-102-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 130.2 mm Load Rating: 2270 Kg Finish: Gold Chromate Hex Flats (B): 19.05 mm
Part Number: MLM-127C-102-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-127C-102-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Sale MLM-127C-102-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Regular price $45.23 AUD Regular price ~~$54.27 AUD~~ Sale price $45.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm	Base Height (E) 6.35 mm	Overall Height 79.4 mm
Material: Steel Load Rating: 2270 Kg Finish: Gold Chromate Hex Flats (B): 19.050 mm
Part Number: MLM-127C-051-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $202.68 AUD Regular price ~~$243.22 AUD~~ Sale price $202.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 6.35 mm Overall Height: 79.4 mm Load Rating: 2270 Kg Finish: Gold Chromate Hex Flats (B): 19.050 mm
Part Number: MLM-127C-051-CGC Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $202.68 AUD Regular price ~~$243.22 AUD~~ Sale price $202.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-127C-051-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Sale MLM-127C-051-CGC --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount Regular price $202.68 AUD Regular price ~~$243.22 AUD~~ Sale price $202.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm	Base Height (E) 7.93 mm	Overall Height 133.4 mm
Material: Steel Load Rating: 2720 Kg Finish: Gold Chromate Hex Flats (B): 22.225 mm
Part Number: MLM-159C-102-CGC Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $67.14 AUD Regular price ~~$80.56 AUD~~ Sale price $67.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 7.93 mm Overall Height: 133.4 mm Load Rating: 2720 Kg Finish: Gold Chromate Hex Flats (B): 22.225 mm
Part Number: MLM-159C-102-CGC Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $67.14 AUD Regular price ~~$80.56 AUD~~ Sale price $67.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-159C-102-CGC --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Sale MLM-159C-102-CGC --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Regular price $67.14 AUD Regular price ~~$80.56 AUD~~ Sale price $67.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm	Base Height (E) 7.93 mm	Overall Height 82.6 mm
Material: Steel Load Rating: 2720 Kg Finish: Gold Chromate Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CGC (50 Pcs) Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $25,205.41 AUD Regular price Sale price $25,205.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 7.93 mm Overall Height: 82.6 mm Load Rating: 2720 Kg Finish: Gold Chromate Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CGC (50 Pcs) Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $25,205.41 AUD Regular price Sale price $25,205.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-159C-051-CGC (50 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount MLM-159C-051-CGC (50 Pcs) --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount Regular price $25,205.41 AUD Regular price Sale price $25,205.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm (Equiv. 2.52 in.)	Foot Height (C) 32.0 mm (Equiv. 1.26 in.)	Thread Length (F) 51.0 mm	Base Height (E) 8.00 mm	Overall Height 83.0 mm
Material: Steel Load Rating: 2720 Kg Finish: Gold Chromate Hex Flats (B): 24.00 mm
Part Number: MLM-160M-051-CGC Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $69.68 AUD Regular price ~~$83.62 AUD~~ Sale price $69.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 64.0 mm (Equiv. 2.52 in.)	Foot Height (C) 32.0 mm (Equiv. 1.26 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 8.00 mm Overall Height: 83.0 mm Load Rating: 2720 Kg Finish: Gold Chromate Hex Flats (B): 24.00 mm
Part Number: MLM-160M-051-CGC Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $69.68 AUD Regular price ~~$83.62 AUD~~ Sale price $69.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-160M-051-CGC --- Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Sale MLM-160M-051-CGC --- Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Standard - Steel Mount Regular price $69.68 AUD Regular price ~~$83.62 AUD~~ Sale price $69.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 101.6 mm	Base Height (E) 12.70 mm	Overall Height 139.7 mm
Material: Steel Load Rating: 3270 Kg Finish: Gold Chromate Hex Flats (B): 26.988 mm
Part Number: MLM-191C-102-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $103.95 AUD Regular price ~~$124.75 AUD~~ Sale price $103.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 101.6 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 139.7 mm Load Rating: 3270 Kg Finish: Gold Chromate Hex Flats (B): 26.988 mm
Part Number: MLM-191C-102-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $103.95 AUD Regular price ~~$124.75 AUD~~ Sale price $103.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-191C-102-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Sale MLM-191C-102-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Regular price $103.95 AUD Regular price ~~$124.75 AUD~~ Sale price $103.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm	Base Height (E) 12.70 mm	Overall Height 88.9 mm
Material: Steel Load Rating: 3270 Kg Finish: Gold Chromate Hex Flats (B): 26.975 mm
Part Number: MLM-191C-051-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $280.50 AUD Regular price ~~$336.60 AUD~~ Sale price $280.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/4-10 UNC (19.05mm)	Base Diameter (D) 76.2 mm (Equiv. 3 in.)	Foot Height (C) 38.1 mm (Equiv. 1.5 in.)	Thread Length (F) 50.8 mm
Material: Steel Base Height (E): 12.70 mm Overall Height: 88.9 mm Load Rating: 3270 Kg Finish: Gold Chromate Hex Flats (B): 26.975 mm
Part Number: MLM-191C-051-CGC Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $280.50 AUD Regular price ~~$336.60 AUD~~ Sale price $280.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-191C-051-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Sale MLM-191C-051-CGC --- Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount Regular price $280.50 AUD Regular price ~~$336.60 AUD~~ Sale price $280.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm (Equiv. 2.992 in.)	Foot Height (C) 38.0 mm (Equiv. 1.496 in.)	Thread Length (F) 51.0 mm	Base Height (E) 13.00 mm	Overall Height 89.0 mm
Material: Steel Load Rating: 3270 Kg Finish: Gold Chromate Hex Flats (B): 30.00 mm
Part Number: MLM-200M-051-CGC Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $108.41 AUD Regular price ~~$130.09 AUD~~ Sale price $108.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M20 (20x2.5mm)	Base Diameter (D) 76.0 mm (Equiv. 2.992 in.)	Foot Height (C) 38.0 mm (Equiv. 1.496 in.)	Thread Length (F) 51.0 mm
Material: Steel Base Height (E): 13.00 mm Overall Height: 89.0 mm Load Rating: 3270 Kg Finish: Gold Chromate Hex Flats (B): 30.00 mm
Part Number: MLM-200M-051-CGC Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $108.41 AUD Regular price ~~$130.09 AUD~~ Sale price $108.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-200M-051-CGC --- Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Sale MLM-200M-051-CGC --- Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Standard - Steel Mount Regular price $108.41 AUD Regular price ~~$130.09 AUD~~ Sale price $108.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M24 (24x3mm)	Base Diameter (D) 102.0 mm (Equiv. 4.016 in.)	Foot Height (C) 48.0 mm (Equiv. 1.89 in.)	Thread Length (F) 108.0 mm	Base Height (E) 10.00 mm	Overall Height 156.0 mm
Material: Steel Load Rating: 9980 Kg Finish: Gold Chromate Hex Flats (B): 36.00 mm
Part Number: MLM-240M-108-CGC Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $202.41 AUD Regular price ~~$242.89 AUD~~ Sale price $202.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M24 (24x3mm)	Base Diameter (D) 102.0 mm (Equiv. 4.016 in.)	Foot Height (C) 48.0 mm (Equiv. 1.89 in.)	Thread Length (F) 108.0 mm
Material: Steel Base Height (E): 10.00 mm Overall Height: 156.0 mm Load Rating: 9980 Kg Finish: Gold Chromate Hex Flats (B): 36.00 mm
Part Number: MLM-240M-108-CGC Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $202.41 AUD Regular price ~~$242.89 AUD~~ Sale price $202.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-240M-108-CGC --- Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Sale MLM-240M-108-CGC --- Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Standard - Steel Mount Regular price $202.41 AUD Regular price ~~$242.89 AUD~~ Sale price $202.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm	Base Height (E) 10.32 mm	Overall Height 155.6 mm
Material: Steel Load Rating: 9980 Kg Finish: Gold Chromate Hex Flats (B): 34.925 mm
Part Number: MLM-254C-108-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $379.41 AUD Regular price ~~$455.29 AUD~~ Sale price $379.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 108.0 mm
Material: Steel Base Height (E): 10.32 mm Overall Height: 155.6 mm Load Rating: 9980 Kg Finish: Gold Chromate Hex Flats (B): 34.925 mm
Part Number: MLM-254C-108-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $379.41 AUD Regular price ~~$455.29 AUD~~ Sale price $379.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-254C-108-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Sale MLM-254C-108-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Regular price $379.41 AUD Regular price ~~$455.29 AUD~~ Sale price $379.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 203.2 mm	Base Height (E) 10.32 mm	Overall Height 250.8 mm
Material: Steel Load Rating: 9980 Kg Finish: Gold Chromate Hex Flats (B): 34.925 mm
Part Number: MLM-254C-203-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $229.41 AUD Regular price ~~$275.29 AUD~~ Sale price $229.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1-8 UNC (25.4mm)	Base Diameter (D) 101.6 mm (Equiv. 4 in.)	Foot Height (C) 47.6 mm (Equiv. 1.874 in.)	Thread Length (F) 203.2 mm
Material: Steel Base Height (E): 10.32 mm Overall Height: 250.8 mm Load Rating: 9980 Kg Finish: Gold Chromate Hex Flats (B): 34.925 mm
Part Number: MLM-254C-203-CGC Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $229.41 AUD Regular price ~~$275.29 AUD~~ Sale price $229.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-254C-203-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Sale MLM-254C-203-CGC --- Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Standard - Steel Mount Regular price $229.41 AUD Regular price ~~$275.29 AUD~~ Sale price $229.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
