Mounts - Levelling Studded - Standard - Black Chromate

Mounts -> Levelling Studded -> Standard -> Black Chromate

There are 4 products in the sub-categories of Mounts - Levelling Studded - Standard - Black Chromate. Browse the Mounts - Levelling Studded - Standard - Black Chromate products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

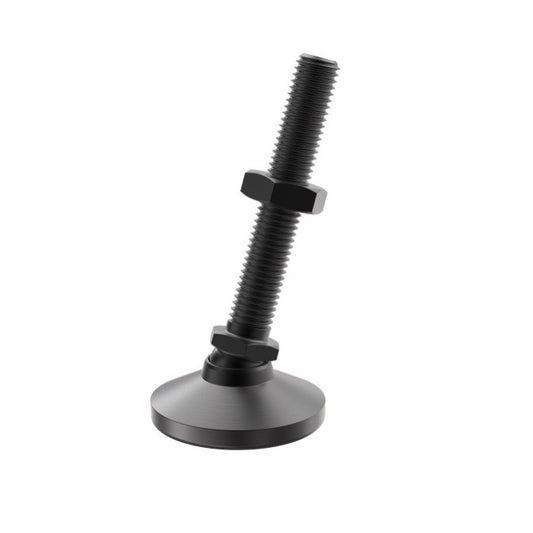

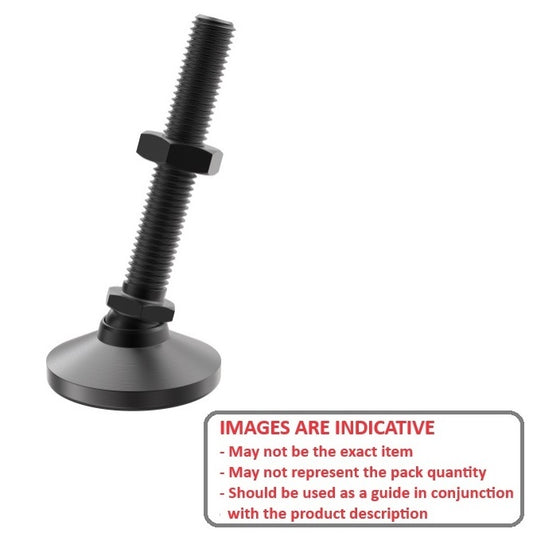

A selection of Black Chromate Standard Levelling Studded Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.

  • An expanded range may be available on special order. Please enquire.
  • Load is distributed over 120o of full radial contact rather than a single radial contact point, providing greater weight distribution between the ball and pad.
  • Zinc plated steel with case hardened ball.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Studded - Standard - Black Chromate category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Thread Length (F)
50.8
mm
Base Height (E)
4.75
mm
Overall Height
73.0
mm
Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Load Rating: 1700 Kg    Finish: Black Chromate    Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CBC
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$221.41 AUD
$221.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Base Height (E): 4.75 mm    Overall Height: 73.0 mm    Load Rating: 1700 Kg    Finish: Black Chromate    Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-CBC
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$221.41 AUD
$221.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Thread Length (F)
50.8
mm
Base Height (E)
6.35
mm
Overall Height
79.4
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Material: Steel    Load Rating: 2270 Kg    Finish: Black Chromate    Hex Flats (B): 19.050 mm
Part Number: MLM-127C-051-CBC (50 Pcs)
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$20,261.50 AUD
$20,261.50 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Material: Steel    Base Height (E): 6.35 mm    Overall Height: 79.4 mm    Load Rating: 2270 Kg    Finish: Black Chromate    Hex Flats (B): 19.050 mm
Part Number: MLM-127C-051-CBC (50 Pcs)
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$20,261.50 AUD
$20,261.50 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
50.8
mm
Base Height (E)
7.93
mm
Overall Height
82.6
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Load Rating: 2720 Kg    Finish: Black Chromate    Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CBC (50 Pcs)
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$23,020.32 AUD
$23,020.32 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Base Height (E): 7.93 mm    Overall Height: 82.6 mm    Load Rating: 2720 Kg    Finish: Black Chromate    Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-CBC (50 Pcs)
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$23,020.32 AUD
$23,020.32 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Thread Length (F)
50.8
mm
Base Height (E)
12.70
mm
Overall Height
88.9
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Finish: Black Chromate    Hex Flats (B): 26.975 mm
Part Number: MLM-191C-051-CBC (50 Pcs)
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$28,395.86 AUD
$28,395.86 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 88.9 mm    Load Rating: 3270 Kg    Finish: Black Chromate    Hex Flats (B): 26.975 mm
Part Number: MLM-191C-051-CBC (50 Pcs)
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Standard - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$28,395.86 AUD
$28,395.86 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
