Collection: Mounts - Levelling Studded - Standard - 303 Stainless

Mounts -> Levelling Studded -> Standard -> 303 Stainless

There are 37 products in the sub-categories of Mounts - Levelling Studded - Standard - 303 Stainless. Scroll down or follow the link to Mounts - Levelling Studded - Standard - 303 Stainless in the products table to see all these items combined into a handy table with filters.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

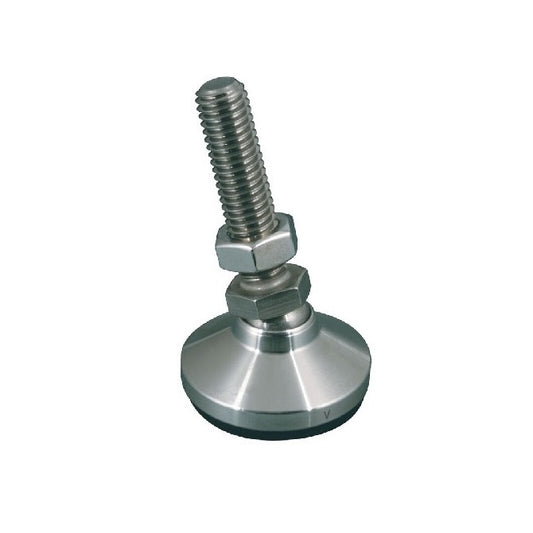

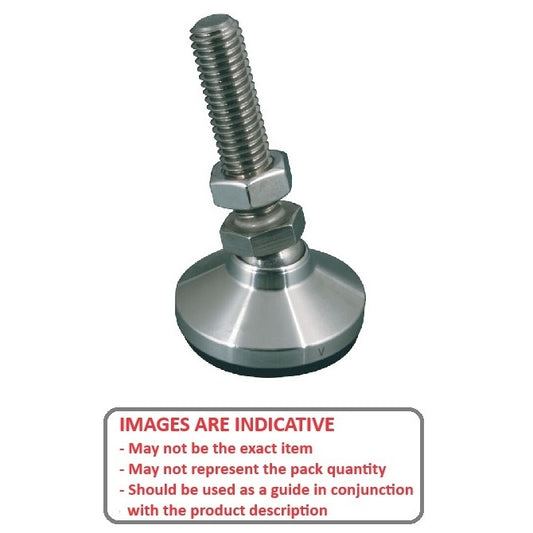

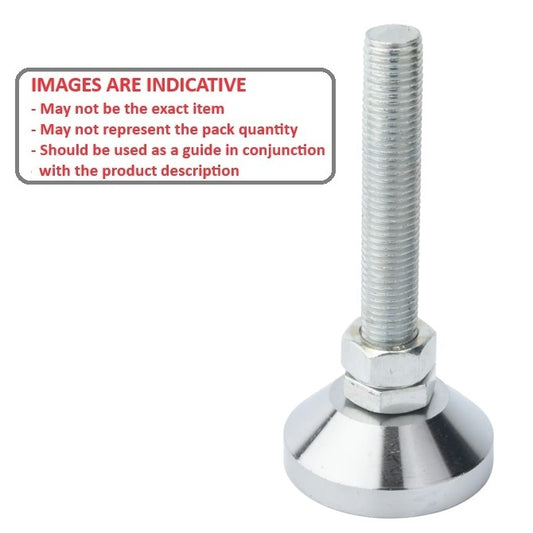

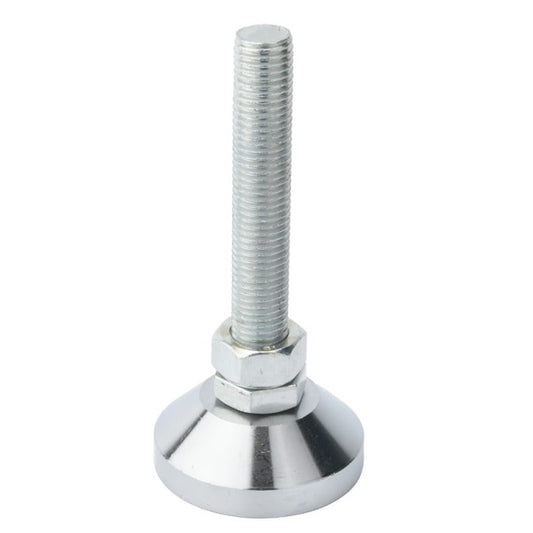

A selection of 303 Stainless Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. 303 stainless steel.

An expanded range may be available on special order. Please enquire.
Large diameter base for added support.
15^o off centre swivel for quick leveling on sloped surfaces.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Mounts - Levelling Studded - Standard - 303 Stainless category on the Small Parts & Bearings online store.

Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Base Height (E)	Overall Height
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm	Base Height (E) 2.78 mm	Overall Height 38.9 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 410 Kg Hex Flats (B): 9.525 mm
Part Number: MLM-048F-025-S3 Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $21.05 AUD Regular price ~~$25.25 AUD~~ Sale price $21.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A)	Base Diameter (D)	Foot Height (C)	Thread Length (F)	Indicative Image
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 2.78 mm Overall Height: 38.9 mm Load Rating: 410 Kg Hex Flats (B): 9.525 mm
Part Number: MLM-048F-025-S3 Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $21.05 AUD Regular price ~~$25.25 AUD~~ Sale price $21.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-048F-025-S3 --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-048F-025-S3 --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $21.05 AUD Regular price ~~$25.25 AUD~~ Sale price $21.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm	Base Height (E) 2.78 mm	Overall Height 64.3 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 315 Kg Hex Flats (B): 9.525 mm
Part Number: MLM-048F-051-S3 Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 10-32 UNF (4.76mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 50.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 2.78 mm Overall Height: 64.3 mm Load Rating: 315 Kg Hex Flats (B): 9.525 mm
Part Number: MLM-048F-051-S3 Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-048F-051-S3 --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-048F-051-S3 --- Levelling Studded Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm	Base Height (E) 2.80 mm	Overall Height 38.9 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 315 Kg Hex Flats (B): 10.00 mm
Part Number: MLM-060M-025-S3 Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $34.95 AUD Regular price ~~$41.95 AUD~~ Sale price $34.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M6 (6x1mm)	Base Diameter (D) 19.1 mm (Equiv. 0.752 in.)	Foot Height (C) 13.5 mm (Equiv. 0.531 in.)	Thread Length (F) 25.4 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 2.80 mm Overall Height: 38.9 mm Load Rating: 315 Kg Hex Flats (B): 10.00 mm
Part Number: MLM-060M-025-S3 Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $34.95 AUD Regular price ~~$41.95 AUD~~ Sale price $34.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-060M-025-S3 --- Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-060M-025-S3 --- Levelling Studded Mounts - M6 - 6x1mm - 19.1x13.5 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $34.95 AUD Regular price ~~$41.95 AUD~~ Sale price $34.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm	Base Height (E) 3.97 mm	Overall Height 49.7 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 670 Kg Hex Flats (B): 12.700 mm
Part Number: MLM-064C-032-S3 Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 31.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 3.97 mm Overall Height: 49.7 mm Load Rating: 670 Kg Hex Flats (B): 12.700 mm
Part Number: MLM-064C-032-S3 Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-064C-032-S3 --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-064C-032-S3 --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 38.1 mm	Base Height (E) 3.97 mm	Overall Height 56.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg Hex Flats (B): 12.700 mm
Part Number: MLM-064C-038-S3 Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/4-20 UNC (6.35mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.9 mm (Equiv. 0.705 in.)	Thread Length (F) 38.1 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 3.97 mm Overall Height: 56.0 mm Load Rating: 500 Kg Hex Flats (B): 12.700 mm
Part Number: MLM-064C-038-S3 Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-064C-038-S3 --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-064C-038-S3 --- Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.9 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.8 mm (Equiv. 0.701 in.)	Thread Length (F) 31.8 mm	Base Height (E) 3.80 mm	Overall Height 49.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg Hex Flats (B): 13.00 mm
Part Number: MLM-080M-032-S3 Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $36.95 AUD Regular price ~~$44.35 AUD~~ Sale price $36.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 25.4 mm (Equiv. 1 in.)	Foot Height (C) 17.8 mm (Equiv. 0.701 in.)	Thread Length (F) 31.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 3.80 mm Overall Height: 49.6 mm Load Rating: 500 Kg Hex Flats (B): 13.00 mm
Part Number: MLM-080M-032-S3 Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $36.95 AUD Regular price ~~$44.35 AUD~~ Sale price $36.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-032-S3 --- Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-080M-032-S3 --- Levelling Studded Mounts - M8 - 8x1.25mm - 25.4x17.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $36.95 AUD Regular price ~~$44.35 AUD~~ Sale price $36.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 50.00 mm	Base Height (E) 17.50 mm	Overall Height 76.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 400 Kg Hex Flats (B): 13.00 mm
Part Number: MLM-080M-050-S4 (4 Pcs) Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $69.32 AUD Regular price ~~$83.18 AUD~~ Sale price $69.32 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 50.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 17.50 mm Overall Height: 76.5 mm Load Rating: 400 Kg Hex Flats (B): 13.00 mm
Part Number: MLM-080M-050-S4 (4 Pcs) Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $69.32 AUD Regular price ~~$83.18 AUD~~ Sale price $69.32 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-050-S4 (4 Pcs) --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-080M-050-S4 (4 Pcs) --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $69.32 AUD Regular price ~~$83.18 AUD~~ Sale price $69.32 AUD Unit price per 4 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 80.00 mm	Base Height (E) 17.50 mm	Overall Height 106.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 400 Kg Hex Flats (B): 13.00 mm
Part Number: MLM-080M-080-S4 Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M8 (8x1.25mm)	Base Diameter (D) 50.00 mm (Equiv. 1.969 in.)	Foot Height (C) 26.50 mm (Equiv. 1.043 in.)	Thread Length (F) 80.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 17.50 mm Overall Height: 106.5 mm Load Rating: 400 Kg Hex Flats (B): 13.00 mm
Part Number: MLM-080M-080-S4 Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-080M-080-S4 --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-080M-080-S4 --- Levelling Studded Mounts - M8 - 8x1.25mm - 50x26.5 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $18.68 AUD Regular price ~~$22.42 AUD~~ Sale price $18.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm	Base Height (E) 4.76 mm	Overall Height 123.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1700 Kg Hex Flats (B): 15.875 mm
Part Number: MLM-095C-102-S3 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $40.68 AUD Regular price ~~$48.82 AUD~~ Sale price $40.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 101.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 4.76 mm Overall Height: 123.8 mm Load Rating: 1700 Kg Hex Flats (B): 15.875 mm
Part Number: MLM-095C-102-S3 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $40.68 AUD Regular price ~~$48.82 AUD~~ Sale price $40.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-102-S3 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-095C-102-S3 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $40.68 AUD Regular price ~~$48.82 AUD~~ Sale price $40.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm	Base Height (E) 4.76 mm	Overall Height 73.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1700 Kg Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-S3 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $34.23 AUD Regular price ~~$41.07 AUD~~ Sale price $34.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Base Diameter (D) 31.8 mm (Equiv. 1.252 in.)	Foot Height (C) 22.2 mm (Equiv. 0.874 in.)	Thread Length (F) 50.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 4.76 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Hex Flats (B): 15.875 mm
Part Number: MLM-095C-051-S3 Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $34.23 AUD Regular price ~~$41.07 AUD~~ Sale price $34.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-095C-051-S3 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-095C-051-S3 --- Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $34.23 AUD Regular price ~~$41.07 AUD~~ Sale price $34.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm	Base Height (E) 5.00 mm	Overall Height 73.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 1700 Kg Hex Flats (B): 17.00 mm
Part Number: MLM-100M-051-S3 Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $50.95 AUD Regular price ~~$61.15 AUD~~ Sale price $50.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 32.0 mm (Equiv. 1.26 in.)	Foot Height (C) 22.0 mm (Equiv. 0.866 in.)	Thread Length (F) 51.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 5.00 mm Overall Height: 73.0 mm Load Rating: 1700 Kg Hex Flats (B): 17.00 mm
Part Number: MLM-100M-051-S3 Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $50.95 AUD Regular price ~~$61.15 AUD~~ Sale price $50.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-051-S3 --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-100M-051-S3 --- Levelling Studded Mounts - M10 - 10x1.5mm - 32x22 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $50.95 AUD Regular price ~~$61.15 AUD~~ Sale price $50.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 28.00 mm (Equiv. 1.102 in.)	Thread Length (F) 100.00 mm	Base Height (E) 19.00 mm	Overall Height 128.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg Hex Flats (B): 17.00 mm
Part Number: MLM-100M-100-S4 Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 28.00 mm (Equiv. 1.102 in.)	Thread Length (F) 100.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 19.00 mm Overall Height: 128.0 mm Load Rating: 500 Kg Hex Flats (B): 17.00 mm
Part Number: MLM-100M-100-S4 Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-100-S4 --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-100M-100-S4 --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 28.00 mm (Equiv. 1.102 in.)	Thread Length (F) 80.00 mm	Base Height (E) 19.00 mm	Overall Height 108.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 500 Kg Hex Flats (B): 17.00 mm
Part Number: MLM-100M-080-S4 Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 28.00 mm (Equiv. 1.102 in.)	Thread Length (F) 80.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 19.00 mm Overall Height: 108.0 mm Load Rating: 500 Kg Hex Flats (B): 17.00 mm
Part Number: MLM-100M-080-S4 Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-100M-080-S4 --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-100M-080-S4 --- Levelling Studded Mounts - M10 - 10x1.5mm - 60x28 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $18.95 AUD Regular price ~~$22.75 AUD~~ Sale price $18.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm	Base Height (E) 6.00 mm	Overall Height 80.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2270 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-S3 Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $79.95 AUD Regular price ~~$95.95 AUD~~ Sale price $79.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 48.0 mm (Equiv. 1.89 in.)	Foot Height (C) 29.0 mm (Equiv. 1.142 in.)	Thread Length (F) 51.0 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 6.00 mm Overall Height: 80.0 mm Load Rating: 2270 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-051-S3 Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $79.95 AUD Regular price ~~$95.95 AUD~~ Sale price $79.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-051-S3 --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-120M-051-S3 --- Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $79.95 AUD Regular price ~~$95.95 AUD~~ Sale price $79.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 100.00 mm	Base Height (E) 20.00 mm	Overall Height 129.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 600 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-100-S4 Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 100.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 20.00 mm Overall Height: 129.0 mm Load Rating: 600 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-100-S4 Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-100-S4 --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-120M-100-S4 --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $20.14 AUD Regular price ~~$24.16 AUD~~ Sale price $20.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 150.00 mm	Base Height (E) 20.00 mm	Overall Height 179.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 600 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-150-S4 Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 150.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 20.00 mm Overall Height: 179.0 mm Load Rating: 600 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-150-S4 Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-150-S4 --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-120M-150-S4 --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 80.00 mm	Base Height (E) 20.00 mm	Overall Height 109.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 600 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-080-S4 Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M12 (12x1.75mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 29.00 mm (Equiv. 1.142 in.)	Thread Length (F) 80.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 20.00 mm Overall Height: 109.0 mm Load Rating: 600 Kg Hex Flats (B): 19.00 mm
Part Number: MLM-120M-080-S4 Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-120M-080-S4 --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-120M-080-S4 --- Levelling Studded Mounts - M12 - 12x1.75mm - 60x29 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $19.86 AUD Regular price ~~$23.84 AUD~~ Sale price $19.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm	Base Height (E) 6.35 mm	Overall Height 130.2 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2270 Kg Hex Flats (B): 19.05 mm
Part Number: MLM-127C-102-S3 Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $80.14 AUD Regular price ~~$96.16 AUD~~ Sale price $80.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 101.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 6.35 mm Overall Height: 130.2 mm Load Rating: 2270 Kg Hex Flats (B): 19.05 mm
Part Number: MLM-127C-102-S3 Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $80.14 AUD Regular price ~~$96.16 AUD~~ Sale price $80.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-127C-102-S3 --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-127C-102-S3 --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $80.14 AUD Regular price ~~$96.16 AUD~~ Sale price $80.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm	Base Height (E) 6.35 mm	Overall Height 79.4 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2270 Kg Hex Flats (B): 19.05 mm
Part Number: MLM-127C-051-S3 Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $72.14 AUD Regular price ~~$86.56 AUD~~ Sale price $72.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 1/2-13 UNC (12.7mm)	Base Diameter (D) 47.6 mm (Equiv. 1.874 in.)	Foot Height (C) 28.6 mm (Equiv. 1.126 in.)	Thread Length (F) 50.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 6.35 mm Overall Height: 79.4 mm Load Rating: 2270 Kg Hex Flats (B): 19.05 mm
Part Number: MLM-127C-051-S3 Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $72.14 AUD Regular price ~~$86.56 AUD~~ Sale price $72.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-127C-051-S3 --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-127C-051-S3 --- Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $72.14 AUD Regular price ~~$86.56 AUD~~ Sale price $72.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm	Base Height (E) 7.94 mm	Overall Height 133.4 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2720 Kg Hex Flats (B): 22.225 mm
Part Number: MLM-159C-102-S3 Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $155.86 AUD Regular price ~~$187.04 AUD~~ Sale price $155.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 101.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.94 mm Overall Height: 133.4 mm Load Rating: 2720 Kg Hex Flats (B): 22.225 mm
Part Number: MLM-159C-102-S3 Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $155.86 AUD Regular price ~~$187.04 AUD~~ Sale price $155.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-159C-102-S3 --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-159C-102-S3 --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $155.86 AUD Regular price ~~$187.04 AUD~~ Sale price $155.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm	Base Height (E) 7.94 mm	Overall Height 82.6 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Load Rating: 2720 Kg Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-S3 Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $95.77 AUD Regular price ~~$114.93 AUD~~ Sale price $95.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 5/8-11 UNC (15.88mm)	Base Diameter (D) 63.5 mm (Equiv. 2.5 in.)	Foot Height (C) 31.8 mm (Equiv. 1.252 in.)	Thread Length (F) 50.8 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Base Height (E): 7.94 mm Overall Height: 82.6 mm Load Rating: 2720 Kg Hex Flats (B): 22.225 mm
Part Number: MLM-159C-051-S3 Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 16, 2025 Regular price $95.77 AUD Regular price ~~$114.93 AUD~~ Sale price $95.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-159C-051-S3 --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Sale MLM-159C-051-S3 --- Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount Regular price $95.77 AUD Regular price ~~$114.93 AUD~~ Sale price $95.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 31.00 mm (Equiv. 1.22 in.)	Thread Length (F) 100.00 mm	Base Height (E) 22.00 mm	Overall Height 131.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 700 Kg Hex Flats (B): 24.00 mm
Part Number: MLM-160M-100-S4 Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 31.00 mm (Equiv. 1.22 in.)	Thread Length (F) 100.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 22.00 mm Overall Height: 131.0 mm Load Rating: 700 Kg Hex Flats (B): 24.00 mm
Part Number: MLM-160M-100-S4 Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-160M-100-S4 --- Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-160M-100-S4 --- Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 31.00 mm (Equiv. 1.22 in.)	Thread Length (F) 120.00 mm	Base Height (E) 22.00 mm	Overall Height 151.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 700 Kg Hex Flats (B): 24.00 mm
Part Number: MLM-160M-120-S4 Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $24.41 AUD Regular price ~~$29.29 AUD~~ Sale price $24.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 31.00 mm (Equiv. 1.22 in.)	Thread Length (F) 120.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 22.00 mm Overall Height: 151.0 mm Load Rating: 700 Kg Hex Flats (B): 24.00 mm
Part Number: MLM-160M-120-S4 Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $24.41 AUD Regular price ~~$29.29 AUD~~ Sale price $24.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-160M-120-S4 --- Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-160M-120-S4 --- Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $24.41 AUD Regular price ~~$29.29 AUD~~ Sale price $24.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 31.00 mm (Equiv. 1.22 in.)	Thread Length (F) 150.00 mm	Base Height (E) 22.00 mm	Overall Height 181.0 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Load Rating: 700 Kg Hex Flats (B): 24.00 mm
Part Number: MLM-160M-150-S4 Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $25.14 AUD Regular price ~~$30.16 AUD~~ Sale price $25.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M16 (16x2mm)	Base Diameter (D) 60.00 mm (Equiv. 2.362 in.)	Foot Height (C) 31.00 mm (Equiv. 1.22 in.)	Thread Length (F) 150.00 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Base Height (E): 22.00 mm Overall Height: 181.0 mm Load Rating: 700 Kg Hex Flats (B): 24.00 mm
Part Number: MLM-160M-150-S4 Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 30, 2025 Regular price $25.14 AUD Regular price ~~$30.16 AUD~~ Sale price $25.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
MLM-160M-150-S4 --- Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Sale MLM-160M-150-S4 --- Levelling Studded Mounts - M16 - 16x2mm - 60x31 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount Regular price $25.14 AUD Regular price ~~$30.16 AUD~~ Sale price $25.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Mounts - Levelling Studded - Standard - 303 Stainless

Category Details

Filter

Filter

Subscribe to our emails
