Mounts - Levelling Studded - Light Duty - Rubber Padded

Mounts -> Levelling Studded -> Light Duty -> Rubber Padded

There are 4 products in the sub-categories of Mounts - Levelling Studded - Light Duty - Rubber Padded. Browse the Mounts - Levelling Studded - Light Duty - Rubber Padded products table.

Category Details

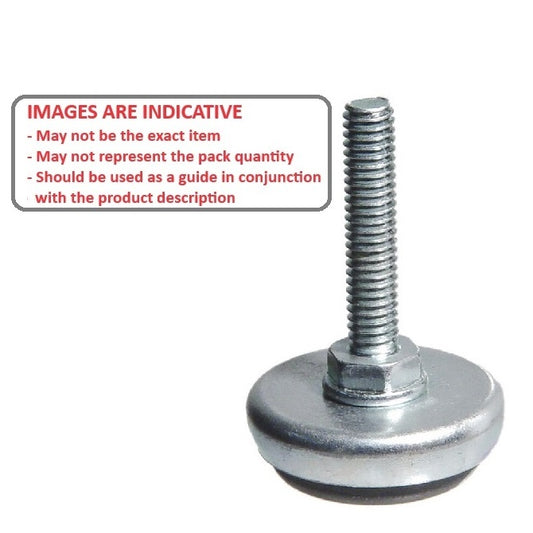

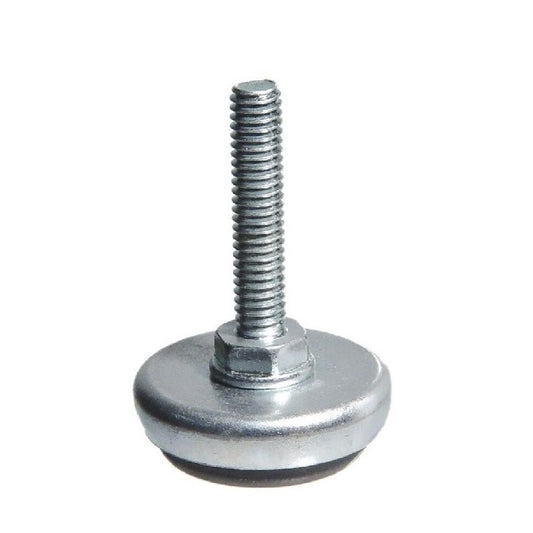

A selection of Rubber Padded Light Duty Levelling Studded Mounts. Levelling adjusters. For light duty levelling applications. Can be used on furniture, light duty machines, tables, cabinets, light weight equipment etc.

  • An expanded range may be available on special order. Please enquire.
  • For non skid applications

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Studded - Light Duty - Rubber Padded category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 38.1x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
38.1
mm
Foot Height (C)
12.7
mm
Thread Length (F)
38.1
mm
Base Height (E)
12.7
mm
Overall Height
50.8
mm
Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 38.1x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Load Rating: 140 Kg    Mount Diameter (C): 38.10    Pad Diameter (d): 30.99 mm    Pad Material: Elastomer    Nut width (n): 12.70 mm
Part Number: MLM-064C-038-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$14.14 AUD
$14.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 38.1x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
1/4-20 UNC (6.35mm)
Base Diameter (D)
38.1
mm
Foot Height (C)
12.7
mm
Thread Length (F)
38.1
mm
Levelling Studded Mounts - 1/4-20 UNC -6.35mm- 38.1x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Base Height (E): 12.7 mm    Overall Height: 50.8 mm    Load Rating: 140 Kg    Mount Diameter (C): 38.10    Pad Diameter (d): 30.99 mm    Pad Material: Elastomer    Nut width (n): 12.70 mm
Part Number: MLM-064C-038-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$14.14 AUD
$14.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 38.1x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
5/16-18 UNC (7.94mm)
Base Diameter (D)
38.1
mm
Foot Height (C)
12.7
mm
Thread Length (F)
38.1
mm
Base Height (E)
12.7
mm
Overall Height
50.8
mm
Levelling Studded Mounts - 5/16-18 UNC -7.94mm- 38.1x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Load Rating: 140 Kg    Mount Diameter (C): 38.10    Pad Diameter (d): 30.99 mm    Pad Material: Elastomer    Nut width (n): 12.70 mm
Part Number: MLM-079C-038-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$11.59 AUD
$13.91 AUD $11.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Studded Mounts - 5/16-18 UNC - 7.94mm - 38.1x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
5/16-18 UNC (7.94mm)
Base Diameter (D)
38.1
mm
Foot Height (C)
12.7
mm
Thread Length (F)
38.1
mm
Levelling Studded Mounts - 5/16-18 UNC -7.94mm- 38.1x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Base Height (E): 12.7 mm    Overall Height: 50.8 mm    Load Rating: 140 Kg    Mount Diameter (C): 38.10    Pad Diameter (d): 30.99 mm    Pad Material: Elastomer    Nut width (n): 12.70 mm
Part Number: MLM-079C-038-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$11.59 AUD
$13.91 AUD $11.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 50.8x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
50.8
mm
Foot Height (C)
12.7
mm
Thread Length (F)
50.8
mm
Base Height (E)
12.7
mm
Overall Height
63.5
mm
Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 50.8x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Load Rating: 140 Kg    Mount Diameter (C): 50.80    Pad Diameter (d): 43.43 mm    Pad Material: Elastomer    Nut width (n): 14.30 mm
Part Number: MLM-095C-051-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$15.14 AUD
$18.16 AUD $15.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Studded Mounts - 3/8-16 UNC - 9.53mm - 50.8x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
3/8-16 UNC (9.53mm)
Base Diameter (D)
50.8
mm
Foot Height (C)
12.7
mm
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 3/8-16 UNC -9.53mm- 50.8x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Base Height (E): 12.7 mm    Overall Height: 63.5 mm    Load Rating: 140 Kg    Mount Diameter (C): 50.80    Pad Diameter (d): 43.43 mm    Pad Material: Elastomer    Nut width (n): 14.30 mm
Part Number: MLM-095C-051-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$15.14 AUD
$18.16 AUD $15.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 50.8x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
50.8
mm
Foot Height (C)
12.7
mm
Thread Length (F)
50.8
mm
Base Height (E)
12.7
mm
Overall Height
63.5
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 50.8x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Load Rating: 140 Kg    Mount Diameter (C): 50.80    Pad Diameter (d): 43.43 mm    Pad Material: Elastomer    Nut width (n): 14.30 mm
Part Number: MLM-127C-051-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$16.59 AUD
$19.91 AUD $16.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 50.8x12.7 mm Light Duty - Zinc Plated Steel Mount
Thread Size (A)
1/2-13 UNC (12.7mm)
Base Diameter (D)
50.8
mm
Foot Height (C)
12.7
mm
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 50.8x12.7 mm - Zinc Plated Steel
Material: Zinc Plated Steel    Base Height (E): 12.7 mm    Overall Height: 63.5 mm    Load Rating: 140 Kg    Mount Diameter (C): 50.80    Pad Diameter (d): 43.43 mm    Pad Material: Elastomer    Nut width (n): 14.30 mm
Part Number: MLM-127C-051-C-LDRP (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$16.59 AUD
$19.91 AUD $16.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
