Mounts - Levelling Studded - Hygienic - Anchoring - One Mounting Hole

Mounts -> Levelling Studded -> Hygienic -> Anchoring -> One Mounting Hole

There are 16 products in the sub-categories of Mounts - Levelling Studded - Hygienic - Anchoring - One Mounting Hole. Browse the Mounts - Levelling Studded - Hygienic - Anchoring - One Mounting Hole products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

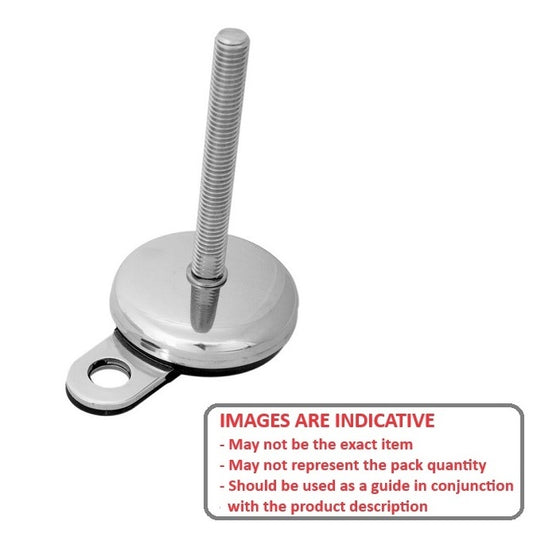

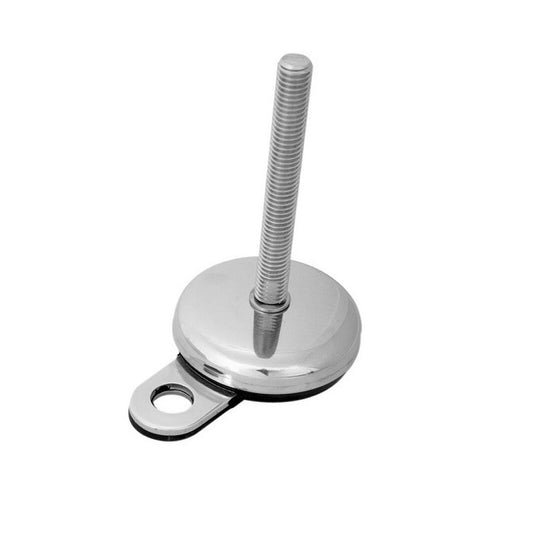

A selection of One Mounting Hole Anchoring Hygienic Levelling Studded Mounts. Levelling adjusters. ANSI 304 stainless steel provides high corrosion resistance. Rounded polished base for fluid run-off during washdown applications.

  • An expanded range may be available on special order. Please enquire.
  • Operating temperature -20 to 100o C.
  • Rubber base meets FDA 177-2600.
  • 5o swivel for good floor contact.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Studded - Hygienic - Anchoring - One Mounting Hole category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
101.6
mm
Base Height (E)
22.1
mm
Overall Height
123.7
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-102-S4-AHY1-075
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$192.50 AUD
$192.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
101.6
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 123.7 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-102-S4-AHY1-075
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$192.50 AUD
$192.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Base Height (E)
22.1
mm
Overall Height
174.5
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-152-S4-AHY1-075
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$167.77 AUD
$201.33 AUD $167.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 174.5 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-152-S4-AHY1-075
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$167.77 AUD
$201.33 AUD $167.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
101.6
mm
Base Height (E)
32.0
mm
Overall Height
133.6
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-102-S4-AHY1-100
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$317.41 AUD
$380.89 AUD $317.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
101.6
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 133.6 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-102-S4-AHY1-100
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$317.41 AUD
$380.89 AUD $317.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Base Height (E)
32.0
mm
Overall Height
184.4
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-152-S4-AHY1-100
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$248.68 AUD
$298.42 AUD $248.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 1/2-13 UNC -12.7mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 184.4 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-127C-152-S4-AHY1-100
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$248.68 AUD
$298.42 AUD $248.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Base Height (E)
22.1
mm
Overall Height
174.5
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-152-S4-AHY1-075
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$251.50 AUD
$301.80 AUD $251.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 174.5 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-152-S4-AHY1-075
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$251.50 AUD
$301.80 AUD $251.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
203.2
mm
Base Height (E)
22.1
mm
Overall Height
225.3
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-203-S4-AHY1-075
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$145.23 AUD
$174.27 AUD $145.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
203.2
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 225.3 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-203-S4-AHY1-075
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$145.23 AUD
$174.27 AUD $145.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Base Height (E)
32.0
mm
Overall Height
184.4
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-152-S4-AHY1-100
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$339.68 AUD
$407.62 AUD $339.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 184.4 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-152-S4-AHY1-100
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$339.68 AUD
$407.62 AUD $339.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
203.2
mm
Base Height (E)
32.0
mm
Overall Height
235.2
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-203-S4-AHY1-100
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$195.32 AUD
$234.38 AUD $195.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
203.2
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 235.2 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-159C-203-S4-AHY1-100
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$195.32 AUD
$234.38 AUD $195.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Base Height (E)
22.1
mm
Overall Height
174.5
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-152-S4-AHY1-075
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$149.14 AUD
$178.96 AUD $149.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 174.5 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-152-S4-AHY1-075
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$149.14 AUD
$178.96 AUD $149.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
203.2
mm
Base Height (E)
22.1
mm
Overall Height
225.3
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-203-S4-075
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$197.41 AUD
$236.89 AUD $197.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
203.2
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 225.3 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-203-S4-075
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$197.41 AUD
$236.89 AUD $197.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Base Height (E)
32.0
mm
Overall Height
184.4
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-152-S4-AHY1-100
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$308.86 AUD
$370.64 AUD $308.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 184.4 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-152-S4-AHY1-100
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$308.86 AUD
$370.64 AUD $308.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
203.2
mm
Base Height (E)
32.0
mm
Overall Height
235.2
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-203-S4-AHY1-100
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$326.41 AUD
$391.69 AUD $326.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
203.2
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 235.2 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-191C-203-S4-AHY1-100
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$326.41 AUD
$391.69 AUD $326.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Base Height (E)
22.1
mm
Overall Height
174.5
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-152-S4-AHY1-075
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$167.59 AUD
$201.11 AUD $167.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 174.5 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-152-S4-AHY1-075
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$167.59 AUD
$201.11 AUD $167.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
203.2
mm
Base Height (E)
22.1
mm
Overall Height
225.3
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-203-S4-AHY1-075
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$185.41 AUD
$222.49 AUD $185.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
74.9
mm

(Equiv. 2.949 in.)
Foot Height (C)
22.1
mm

(Equiv. 0.87 in.)
Thread Length (F)
203.2
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 74.9x22.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 22.1 mm    Overall Height: 225.3 mm    Load Rating: 800 Kg    Distance Thread to Bolt (b): 52.07 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-203-S4-AHY1-075
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 74.9x22.1 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$185.41 AUD
$222.49 AUD $185.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Base Height (E)
32.0
mm
Overall Height
184.4
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-152-S4-AHY1-100
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$206.59 AUD
$247.91 AUD $206.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
152.4
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 184.4 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-152-S4-AHY1-100
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$206.59 AUD
$247.91 AUD $206.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
203.2
mm
Base Height (E)
32.0
mm
Overall Height
235.2
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-203-S4-AHY1-100
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$325.86 AUD
$391.04 AUD $325.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
7/8-9 UNC (22.23mm)

Base Diameter (D)
100.1
mm

(Equiv. 3.941 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
203.2
mm
Levelling Studded Mounts - 7/8-9 UNC -22.23mm- 100.1x32 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Base Height (E): 32.0 mm    Overall Height: 235.2 mm    Load Rating: 1000 Kg    Distance Thread to Bolt (b): 67.06 mm    Bolt Hole Diameter (d): 16.00 mm
Part Number: MLM-222C-203-S4-AHY1-100
Levelling Studded Mounts - 7/8-9 UNC - 22.23mm - 100.1x32 mm Hygienic - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025
$325.86 AUD
$391.04 AUD $325.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
