Mounts - Levelling Socket - Swivel - Gold Chromate - Acetal Base

Mounts -> Levelling Socket -> Swivel -> Gold Chromate -> Acetal Base

There are 7 products in the sub-categories of Mounts - Levelling Socket - Swivel - Gold Chromate - Acetal Base. Browse the Mounts - Levelling Socket - Swivel - Gold Chromate - Acetal Base products table.

Category Details

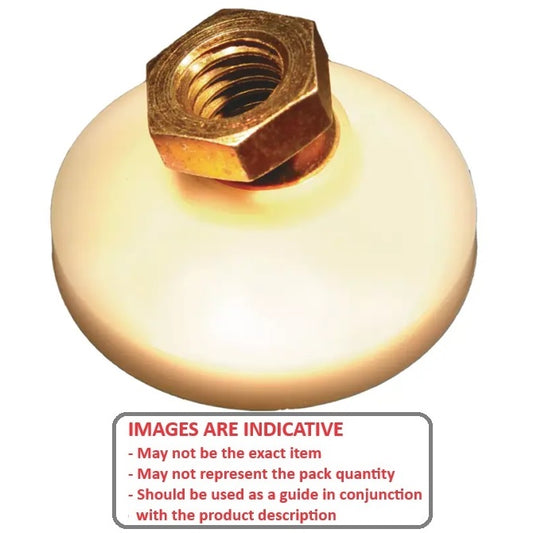

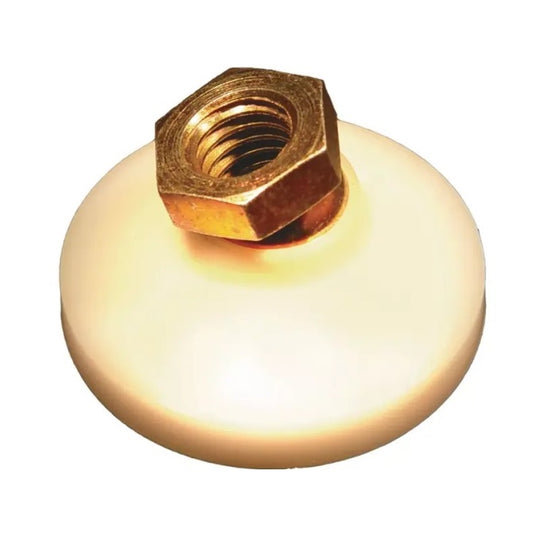

A selection of Acetal Base Gold Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - Gold Chromate - Acetal Base category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Min. Thread Depth
4.3
mm
Base Height (E)
2.79
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel
Material: Steel    Load Rating: 70 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-CGCAP (15 Pcs)
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$289.05 AUD
$289.05 AUD
Excludes GST and overseas Taxes & Duties
Per 15
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Steel
Material: Steel    Base Height (E): 2.79 mm    Load Rating: 70 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-CGCAP (15 Pcs)
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$289.05 AUD
$289.05 AUD
Excludes GST and overseas Taxes & Duties
Per 15
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
17.8
mm

(Equiv. 0.701 in.)
Min. Thread Depth
7.9
mm
Base Height (E)
3.81
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Steel
Material: Steel    Load Rating: 90 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-CGCAP
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$8.41 AUD
$10.09 AUD $8.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
17.8
mm

(Equiv. 0.701 in.)
Min. Thread Depth
7.9
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Steel
Material: Steel    Base Height (E): 3.81 mm    Load Rating: 90 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-CGCAP
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$8.41 AUD
$10.09 AUD $8.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Min. Thread Depth
9.7
mm
Base Height (E)
4.76
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Load Rating: 140 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-CGCAP
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$11.41 AUD
$13.69 AUD $11.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Min. Thread Depth
9.7
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Steel
Material: Steel    Base Height (E): 4.76 mm    Load Rating: 140 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-CGCAP
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$11.41 AUD
$13.69 AUD $11.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
6.35
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Material: Steel    Load Rating: 315 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-CGCAP
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$15.41 AUD
$18.49 AUD $15.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Steel
Material: Steel    Base Height (E): 6.35 mm    Load Rating: 315 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-CGCAP
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$15.41 AUD
$18.49 AUD $15.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
7.94
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Load Rating: 540 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-CGCAP (15 Pcs)
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$524.05 AUD
$524.05 AUD
Excludes GST and overseas Taxes & Duties
Per 15
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Base Height (E): 7.94 mm    Load Rating: 540 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-CGCAP (15 Pcs)
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$524.05 AUD
$524.05 AUD
Excludes GST and overseas Taxes & Duties
Per 15
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Min. Thread Depth
15.8
mm
Base Height (E)
12.70
mm
Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 820 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 26.99 mm
Part Number: MSF-191C-CGCAP (15 Pcs)
Levelling Socket Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$798.14 AUD
$798.14 AUD
Excludes GST and overseas Taxes & Duties
Per 15
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Min. Thread Depth
15.8
mm
Levelling Socket Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Load Rating: 820 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 26.99 mm
Part Number: MSF-191C-CGCAP (15 Pcs)
Levelling Socket Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$798.14 AUD
$798.14 AUD
Excludes GST and overseas Taxes & Duties
Per 15
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1-8 UNC (25.4mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
47.6
mm

(Equiv. 1.874 in.)
Min. Thread Depth
20.6
mm
Base Height (E)
10.32
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel
Material: Steel    Load Rating: 1090 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-CGCAP
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$87.05 AUD
$104.45 AUD $87.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1-8 UNC (25.4mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
47.6
mm

(Equiv. 1.874 in.)
Min. Thread Depth
20.6
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel
Material: Steel    Base Height (E): 10.32 mm    Load Rating: 1090 Kg    Finish: Gold Chromate    Pad Material: Delrin    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-CGCAP
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$87.05 AUD
$104.45 AUD $87.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
