Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded

Mounts -> Levelling Socket -> Swivel -> Clear Chromate -> Rubber Padded

There are 5 products in the sub-categories of Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded. Browse the Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded products table.

Category Details

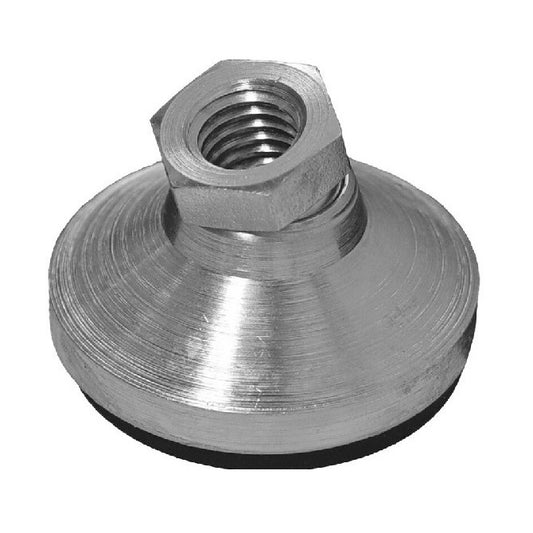

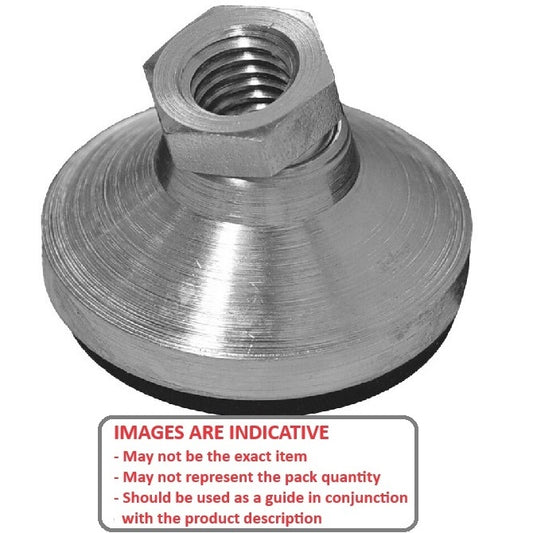

A selection of Rubber Padded Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber Padded category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
16.8
mm

(Equiv. 0.661 in.)
Min. Thread Depth
4.3
mm
Base Height (E)
6.10
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x16.8 mm - Steel
Material: Steel    Load Rating: 240 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-CCCRP (15 Pcs)
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x16.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$326.23 AUD
$326.23 AUD
15 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
16.8
mm

(Equiv. 0.661 in.)
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x16.8 mm - Steel
Material: Steel    Base Height (E): 6.10 mm    Load Rating: 240 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-CCCRP (15 Pcs)
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x16.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$326.23 AUD
$326.23 AUD
15 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
21.1
mm

(Equiv. 0.831 in.)
Min. Thread Depth
7.9
mm
Base Height (E)
7.11
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x21.1 mm - Steel
Material: Steel    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-CCCRP
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x21.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$19.41 AUD
$23.29 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
21.1
mm

(Equiv. 0.831 in.)
Min. Thread Depth
7.9
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x21.1 mm - Steel
Material: Steel    Base Height (E): 7.11 mm    Load Rating: 360 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-CCCRP
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x21.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$19.41 AUD
$23.29 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
25.4
mm

(Equiv. 1 in.)
Min. Thread Depth
9.7
mm
Base Height (E)
7.93
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Material: Steel    Load Rating: 1270 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-CCCRP
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$29.95 AUD
$35.95 AUD $29.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
25.4
mm

(Equiv. 1 in.)
Min. Thread Depth
9.7
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x25.4 mm - Steel
Material: Steel    Base Height (E): 7.93 mm    Load Rating: 1270 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-CCCRP
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x25.4 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$29.95 AUD
$35.95 AUD $29.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
9.53
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Material: Steel    Load Rating: 1700 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-CCCRP (15 Pcs)
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$408.68 AUD
$490.42 AUD $408.68 AUD
15 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x31.8 mm - Steel
Material: Steel    Base Height (E): 9.53 mm    Load Rating: 1700 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-CCCRP (15 Pcs)
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$408.68 AUD
$490.42 AUD $408.68 AUD
15 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
34.9
mm

(Equiv. 1.374 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
11.10
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Load Rating: 2040 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-CCCRP
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x34.9 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$51.50 AUD
$61.80 AUD $51.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
34.9
mm

(Equiv. 1.374 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 5/8-11 UNC -15.88mm- 63.5x34.9 mm - Steel
Material: Steel    Base Height (E): 11.10 mm    Load Rating: 2040 Kg    Finish: Clear Chromate    Pad Thickness: 3.2 mm    Pad Material: Elastomer    Hex Flats (B): 22.23 mm
Part Number: MSF-159C-CCCRP
Levelling Socket Mounts - 5/8-11 UNC - 15.88mm - 63.5x34.9 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$51.50 AUD
$61.80 AUD $51.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
