Mounts - Levelling Socket - Swivel - Acme Thread - Gold Chromate

Mounts -> Levelling Socket -> Swivel -> Acme Thread -> Gold Chromate

There are 2 products in the sub-categories of Mounts - Levelling Socket - Swivel - Acme Thread - Gold Chromate. Browse the Mounts - Levelling Socket - Swivel - Acme Thread - Gold Chromate products table.

Category Details

A selection of Gold Chromate Acme Thread Swivel Levelling Socket Mounts. Levelling adjusters. Use acme thread to make a custom stud.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - Acme Thread - Gold Chromate category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Thread Size (A)
1/2-10 (12.7 mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Min. Thread Depth
14.3
mm

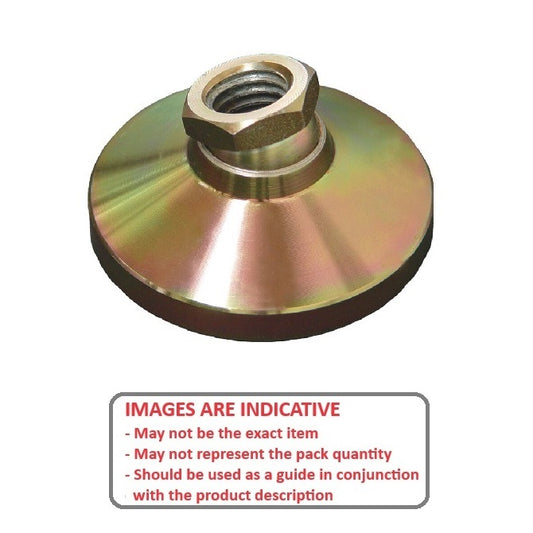

Levelling Socket Mounts - 1/2-10 -12.7 mm- 47.6x28.6 mm - Steel
Material: Steel    Load Rating: 3400 Kg    Hex Flats (E): 19.05 mm
Part Number: MLF-127A-CGC
Levelling Socket Mounts - 1/2-10 - 12.7 mm - 47.6x28.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$38.32 AUD
$38.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Thread Size (A)
1/2-10 (12.7 mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Min. Thread Depth
14.3
mm
Levelling Socket Mounts - 1/2-10 -12.7 mm- 47.6x28.6 mm - Steel
Material: Steel    Load Rating: 3400 Kg    Hex Flats (E): 19.05 mm
Part Number: MLF-127A-CGC
Levelling Socket Mounts - 1/2-10 - 12.7 mm - 47.6x28.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$38.32 AUD
$38.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-6 (19.1 mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Min. Thread Depth
19.1
mm

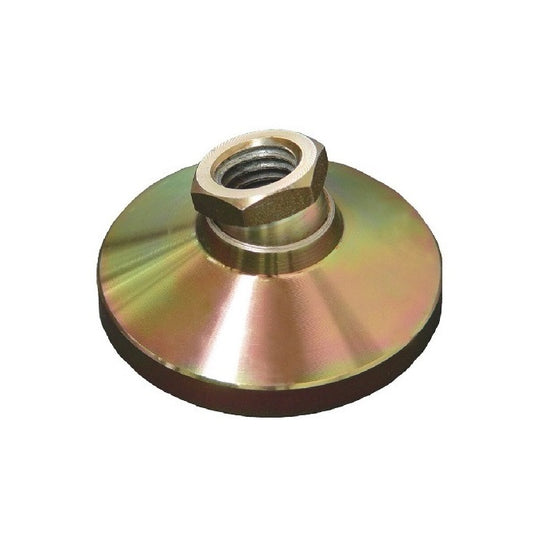

Levelling Socket Mounts - 3/4-6 -19.1 mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 5030 Kg    Hex Flats (E): 26.98 mm
Part Number: MLF-191A-CGC
Levelling Socket Mounts - 3/4-6 - 19.1 mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$107.50 AUD
$129.00 AUD $107.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-6 (19.1 mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Min. Thread Depth
19.1
mm
Levelling Socket Mounts - 3/4-6 -19.1 mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 5030 Kg    Hex Flats (E): 26.98 mm
Part Number: MLF-191A-CGC
Levelling Socket Mounts - 3/4-6 - 19.1 mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$107.50 AUD
$129.00 AUD $107.50 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
