Linear - Thomson Super Housings - Flanged

Linear -> Thomson Super Housings -> Flanged

There are 6 products in the sub-categories of Linear - Thomson Super Housings - Flanged. Browse the Linear - Thomson Super Housings - Flanged products table.

Category Details

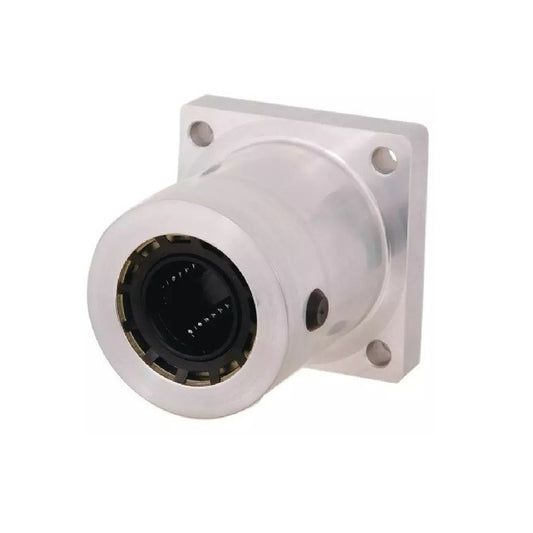

A selection of Flanged Thomson Super Housings Linear. Includes Bearings.

  • Provides 3 times the load capacity or 27 times the travel life of conventional linear bearings. Installed into a housing.
  • Increased load capacity, self-aligning, lightweight and adjustable with a low coefficient of friction.
  • Quick and easy replacement for high friction plain bearings. Wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Thomson Super Housings - Flanged category on the Small Parts & Bearings online store.
Nominal Diameter Flange Length and Width (B) Bolt Distance and Dia. (S x E) Length (L) Width (D) Flange Height (V) Indicative

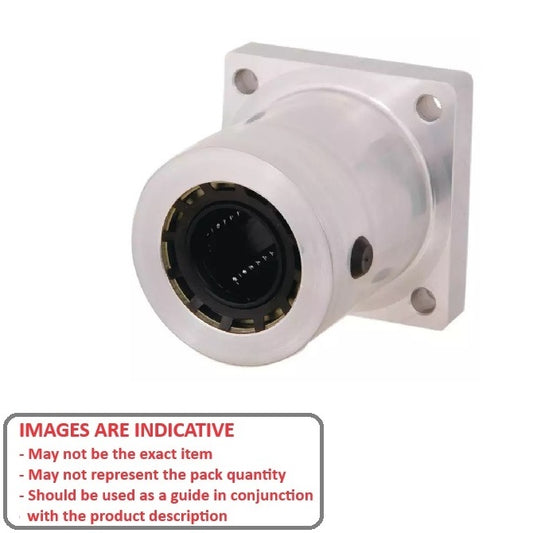

Thomson Super Housings Linear - 12.7x41.4 - 1/4-20 x 31.75 Flanged
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Flange Length and Width (B)
41.40
mm

(Equiv. 1.63 in.)
Bolt Distance and Dia. (S x E)
1/4-20 x 31.75
mm

(Equiv. 0.039 in.)
Length (L)
81.28
mm
Width (D)
31.75
mm
Flange Height (V)
22.86
mm
Thomson Super Housings Linear - 12.7x41.4 - 31.75 x 1/4-20
Lube Hole Distance (G1): 37.59 mm    Type: Twin    Dynamic Load Capacity: 237 kgf
Part Number: LCHF-0127-081-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$632.95 AUD
$759.55 AUD $632.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Diameter Flange Length and Width (B) Bolt Distance and Dia. (S x E) Length (L) Indicative
Thomson Super Housings Linear - 12.7x41.4 - 1/4-20 x 31.75 Flanged
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Flange Length and Width (B)
41.40
mm

(Equiv. 1.63 in.)
Bolt Distance and Dia. (S x E)
1/4-20 x 31.75
mm

(Equiv. 0.039 in.)
Length (L)
81.28
mm
Thomson Super Housings Linear - 12.7x41.4 - 31.75 x 1/4-20
Width (D): 31.75 mm    Flange Height (V): 22.86 mm    Lube Hole Distance (G1): 37.59 mm    Type: Twin    Dynamic Load Capacity: 237 kgf
Part Number: LCHF-0127-081-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$632.95 AUD
$759.55 AUD $632.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 12.7x41.4 - 4.8 x 31.75 Flanged
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Flange Length and Width (B)
41.40
mm

(Equiv. 1.63 in.)
Bolt Distance and Dia. (S x E)
4.8 x 31.75
mm

(Equiv. 0.189 in.)
Length (L)
42.93
mm
Width (D)
31.75
mm
Flange Height (V)
6.35
mm
Thomson Super Housings Linear - 12.7x41.4 - 31.75 x 4.826
Lube Hole Distance (G1): 18.29 mm    Type: Single    Dynamic Load Capacity: 118 kgf
Part Number: LCHF-0127-043-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$391.41 AUD
$391.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 12.7x41.4 - 4.8 x 31.75 Flanged
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Flange Length and Width (B)
41.40
mm

(Equiv. 1.63 in.)
Bolt Distance and Dia. (S x E)
4.8 x 31.75
mm

(Equiv. 0.189 in.)
Length (L)
42.93
mm
Thomson Super Housings Linear - 12.7x41.4 - 31.75 x 4.826
Width (D): 31.75 mm    Flange Height (V): 6.35 mm    Lube Hole Distance (G1): 18.29 mm    Type: Single    Dynamic Load Capacity: 118 kgf
Part Number: LCHF-0127-043-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$391.41 AUD
$391.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 19.05x60.45 - 1/4 -20 x 44.45 Flanged
Nominal Diameter
19.05
mm

(Equiv. 0.75 in.)
Flange Length and Width (B)
60.45
mm

(Equiv. 2.38 in.)
Bolt Distance and Dia. (S x E)
1/4 -20 x 44.45
mm

(Equiv. 0.039 in.)
Length (L)
100.33
mm
Width (D)
44.45
mm
Flange Height (V)
22.86
mm
Thomson Super Housings Linear - 19.05x60.45 - 44.45 x 1/4-20
Lube Hole Distance (G1): 50.29 mm    Type: Twin    Dynamic Load Capacity: 1009 kgf
Part Number: LCHF-0191-100-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$801.86 AUD
$962.24 AUD $801.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 19.05x60.45 - 1/4 -20 x 44.45 Flanged
Nominal Diameter
19.05
mm

(Equiv. 0.75 in.)
Flange Length and Width (B)
60.45
mm

(Equiv. 2.38 in.)
Bolt Distance and Dia. (S x E)
1/4 -20 x 44.45
mm

(Equiv. 0.039 in.)
Length (L)
100.33
mm
Thomson Super Housings Linear - 19.05x60.45 - 44.45 x 1/4-20
Width (D): 44.45 mm    Flange Height (V): 22.86 mm    Lube Hole Distance (G1): 50.29 mm    Type: Twin    Dynamic Load Capacity: 1009 kgf
Part Number: LCHF-0191-100-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$801.86 AUD
$962.24 AUD $801.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 19.05x60.45 - 5.6 x 44.45 Flanged
Nominal Diameter
19.05
mm

(Equiv. 0.75 in.)
Flange Length and Width (B)
60.45
mm

(Equiv. 2.38 in.)
Bolt Distance and Dia. (S x E)
5.6 x 44.45
mm

(Equiv. 0.22 in.)
Length (L)
52.32
mm
Width (D)
44.45
mm
Flange Height (V)
9.65
mm
Thomson Super Housings Linear - 19.05x60.45 - 44.45 x 5.588
Lube Hole Distance (G1): 22.61 mm    Type: Single    Dynamic Load Capacity: 504 kgf
Part Number: LCHF-0191-052-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$394.23 AUD
$473.07 AUD $394.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 19.05x60.45 - 5.6 x 44.45 Flanged
Nominal Diameter
19.05
mm

(Equiv. 0.75 in.)
Flange Length and Width (B)
60.45
mm

(Equiv. 2.38 in.)
Bolt Distance and Dia. (S x E)
5.6 x 44.45
mm

(Equiv. 0.22 in.)
Length (L)
52.32
mm
Thomson Super Housings Linear - 19.05x60.45 - 44.45 x 5.588
Width (D): 44.45 mm    Flange Height (V): 9.65 mm    Lube Hole Distance (G1): 22.61 mm    Type: Single    Dynamic Load Capacity: 504 kgf
Part Number: LCHF-0191-052-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$394.23 AUD
$473.07 AUD $394.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 25.4x69.85 - 5/16-18 x 54.0 Flanged
Nominal Diameter
25.40
mm

(Equiv. 1 in.)
Flange Length and Width (B)
69.85
mm

(Equiv. 2.75 in.)
Bolt Distance and Dia. (S x E)
5/16-18 x 54.0
mm

(Equiv. 0.197 in.)
Length (L)
135.38
mm
Width (D)
57.15
mm
Flange Height (V)
22.86
mm
Thomson Super Housings Linear - 25.4x69.85 - 53.98 x 5/16-18
Lube Hole Distance (G1): 67.82 mm    Type: Twin    Dynamic Load Capacity: 1696 kgf
Part Number: LCHF-0254-135-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$1,222.86 AUD
$1,467.44 AUD $1,222.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 25.4x69.85 - 5/16-18 x 54.0 Flanged
Nominal Diameter
25.40
mm

(Equiv. 1 in.)
Flange Length and Width (B)
69.85
mm

(Equiv. 2.75 in.)
Bolt Distance and Dia. (S x E)
5/16-18 x 54.0
mm

(Equiv. 0.197 in.)
Length (L)
135.38
mm
Thomson Super Housings Linear - 25.4x69.85 - 53.98 x 5/16-18
Width (D): 57.15 mm    Flange Height (V): 22.86 mm    Lube Hole Distance (G1): 67.82 mm    Type: Twin    Dynamic Load Capacity: 1696 kgf
Part Number: LCHF-0254-135-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$1,222.86 AUD
$1,467.44 AUD $1,222.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 25.4x69.85 - 7.1 x 53.98 Flanged
Nominal Diameter
25.40
mm

(Equiv. 1 in.)
Flange Length and Width (B)
69.85
mm

(Equiv. 2.75 in.)
Bolt Distance and Dia. (S x E)
7.1 x 53.98
mm

(Equiv. 0.28 in.)
Length (L)
71.37
mm
Width (D)
57.15
mm
Flange Height (V)
12.70
mm
Thomson Super Housings Linear - 25.4x69.85 - 53.98 x 7.112
Lube Hole Distance (G1): 32.26 mm    Type: Single    Dynamic Load Capacity: 848 kgf
Part Number: LCHF-0254-071-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$632.59 AUD
$759.11 AUD $632.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thomson Super Housings Linear - 25.4x69.85 - 7.1 x 53.98 Flanged
Nominal Diameter
25.40
mm

(Equiv. 1 in.)
Flange Length and Width (B)
69.85
mm

(Equiv. 2.75 in.)
Bolt Distance and Dia. (S x E)
7.1 x 53.98
mm

(Equiv. 0.28 in.)
Length (L)
71.37
mm
Thomson Super Housings Linear - 25.4x69.85 - 53.98 x 7.112
Width (D): 57.15 mm    Flange Height (V): 12.70 mm    Lube Hole Distance (G1): 32.26 mm    Type: Single    Dynamic Load Capacity: 848 kgf
Part Number: LCHF-0254-071-TS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026
$632.59 AUD
$759.11 AUD $632.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
