Linear - Sliding Bearings - Frelon Gold Lined - Open - Standard

Linear -> Sliding Bearings -> Frelon Gold Lined -> Open -> Standard

There are 5 products in the sub-categories of Linear - Sliding Bearings - Frelon Gold Lined - Open - Standard. Browse the Linear - Sliding Bearings - Frelon Gold Lined - Open - Standard products table.

Category Details

A selection of Standard Open Frelon Gold Lined Sliding Bearings Linear. Self lubricating. Eliminates galling and shaft damage. Dampens vibration for quiet smooth operation. High load capacity. Absorbs shock loads. Maintenance free. Chemically inert. Temp range -240 Deg C to +260 Deg C

  • Frelon Gold = 20000 PV
  • Dry Running Max Surface Speed Frelon Gold = 1.5 mtrs / sec (300 ft / min).
  • With Lubrication Max Surface Speed Frelon Gold = 4.1 mtrs / sec (825 ft / min)
  • Interaction of the Frelon Gold material and the shafting creates a microscopic transfer of Frelon Gold to the running surfaces filling the valleys during the initial break-in period.
  • Standard type has slightly larger running clearances.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Sliding Bearings - Frelon Gold Lined - Open - Standard category on the Small Parts & Bearings online store.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Groove Distance (D) Groove Width Indicative
Nominal Shaft Size (T)
12.700
mm

(Equiv. 0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(Equiv. 0.875 in.)
Overall Length (L)
31.750
mm

(Equiv. 1.25 in.)
Max. Load
442.252
N
Groove Distance (D)
22.225
mm
Groove Width
1.21
mm

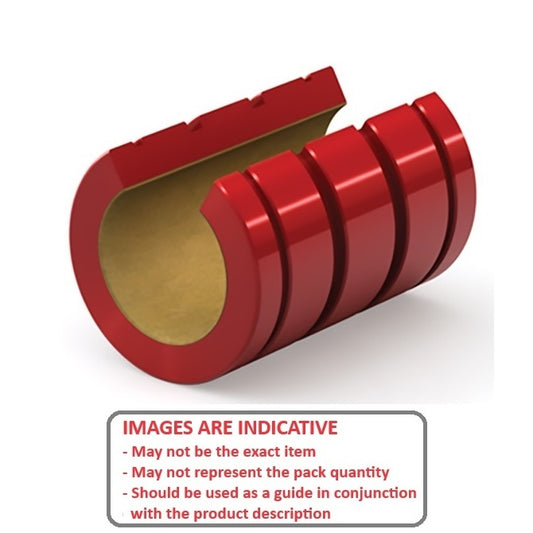

Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Compensated    Type: Open    Opening Distance: 7.950 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0127-022-032-FG
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$124.86 AUD
$124.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Indicative
Nominal Shaft Size (T)
12.700
mm

(Equiv. 0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(Equiv. 0.875 in.)
Overall Length (L)
31.750
mm

(Equiv. 1.25 in.)
Max. Load
442.252
N
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 22.225 mm    Groove Width: 1.21 mm    Series: Compensated    Type: Open    Opening Distance: 7.950 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0127-022-032-FG
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$124.86 AUD
$124.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
19.050
mm

(Equiv. 0.75 in.)
Nom. Outer Diameter (D)
31.750
mm

(Equiv. 1.25 in.)
Overall Length (L)
41.275
mm

(Equiv. 1.625 in.)
Max. Load
864.093
N
Groove Distance (D)
26.975
mm
Groove Width
1.47
mm
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Compensated    Type: Open    Opening Distance: 11.125 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0191-032-041-FG
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$112.59 AUD
$135.11 AUD $112.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
19.050
mm

(Equiv. 0.75 in.)
Nom. Outer Diameter (D)
31.750
mm

(Equiv. 1.25 in.)
Overall Length (L)
41.275
mm

(Equiv. 1.625 in.)
Max. Load
864.093
N
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 26.975 mm    Groove Width: 1.47 mm    Series: Compensated    Type: Open    Opening Distance: 11.125 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0191-032-041-FG
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$112.59 AUD
$135.11 AUD $112.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.400
mm

(Equiv. 1 in.)
Nom. Outer Diameter (D)
39.688
mm

(Equiv. 1.563 in.)
Overall Length (L)
57.150
mm

(Equiv. 2.25 in.)
Max. Load
1598.912
N
Groove Distance (D)
41.300
mm
Groove Width
1.78
mm
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Compensated    Type: Open    Opening Distance: 14.300 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0254-040-057-FG
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$192.23 AUD
$230.67 AUD $192.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.400
mm

(Equiv. 1 in.)
Nom. Outer Diameter (D)
39.688
mm

(Equiv. 1.563 in.)
Overall Length (L)
57.150
mm

(Equiv. 2.25 in.)
Max. Load
1598.912
N
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 41.300 mm    Groove Width: 1.78 mm    Series: Compensated    Type: Open    Opening Distance: 14.300 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0254-040-057-FG
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$192.23 AUD
$230.67 AUD $192.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
31.750
mm

(Equiv. 1.25 in.)
Nom. Outer Diameter (D)
50.800
mm

(Equiv. 2 in.)
Overall Length (L)
66.675
mm

(Equiv. 2.625 in.)
Max. Load
2333.731
N
Groove Distance (D)
47.625
mm
Groove Width
1.78
mm
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Compensated    Type: Open    Opening Distance: 15.875 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0318-051-067-FG
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$318.59 AUD
$382.31 AUD $318.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
31.750
mm

(Equiv. 1.25 in.)
Nom. Outer Diameter (D)
50.800
mm

(Equiv. 2 in.)
Overall Length (L)
66.675
mm

(Equiv. 2.625 in.)
Max. Load
2333.731
N
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 47.625 mm    Groove Width: 1.78 mm    Series: Compensated    Type: Open    Opening Distance: 15.875 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0318-051-067-FG
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$318.59 AUD
$382.31 AUD $318.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
38.100
mm

(Equiv. 1.5 in.)
Nom. Outer Diameter (D)
60.325
mm

(Equiv. 2.375 in.)
Overall Length (L)
76.200
mm

(Equiv. 3 in.)
Max. Load
3197.824
N
Groove Distance (D)
57.150
mm
Groove Width
2.26
mm
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Compensated    Type: Open    Opening Distance: 19.050 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0381-060-076-FG
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$370.41 AUD
$444.49 AUD $370.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
38.100
mm

(Equiv. 1.5 in.)
Nom. Outer Diameter (D)
60.325
mm

(Equiv. 2.375 in.)
Overall Length (L)
76.200
mm

(Equiv. 3 in.)
Max. Load
3197.824
N
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 57.150 mm    Groove Width: 2.26 mm    Series: Compensated    Type: Open    Opening Distance: 19.050 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0381-060-076-FG
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$370.41 AUD
$444.49 AUD $370.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
