Linear - Sliding Bearings - Frelon Gold Lined - Open - Precision

Linear -> Sliding Bearings -> Frelon Gold Lined -> Open -> Precision

There are 5 products in the sub-categories of Linear - Sliding Bearings - Frelon Gold Lined - Open - Precision. Browse the Linear - Sliding Bearings - Frelon Gold Lined - Open - Precision products table.

Category Details

A selection of Precision Open Frelon Gold Lined Sliding Bearings Linear. Self lubricating. Eliminates galling and shaft damage. Dampens vibration for quiet smooth operation. High load capacity. Absorbs shock loads. Maintenance free. Chemically inert. Temp range -240 Deg C to +260 Deg C

  • Frelon Gold = 20000 PV
  • Dry Running Max Surface Speed Frelon Gold = 1.5 mtrs / sec (300 ft / min).
  • With Lubrication Max Surface Speed Frelon Gold = 4.1 mtrs / sec (825 ft / min)
  • Interaction of the Frelon Gold material and the shafting creates a microscopic transfer of Frelon Gold to the running surfaces filling the valleys during the initial break-in period.
  • Precision type has closer running clearances.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Sliding Bearings - Frelon Gold Lined - Open - Precision category on the Small Parts & Bearings online store.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Groove Distance (D) Groove Width Indicative
Nominal Shaft Size (T)
12.700
mm

(Equiv. 0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(Equiv. 0.875 in.)
Overall Length (L)
31.750
mm

(Equiv. 1.25 in.)
Max. Load
442.252
N
Groove Distance (D)
22.225
mm
Groove Width
1.21
mm

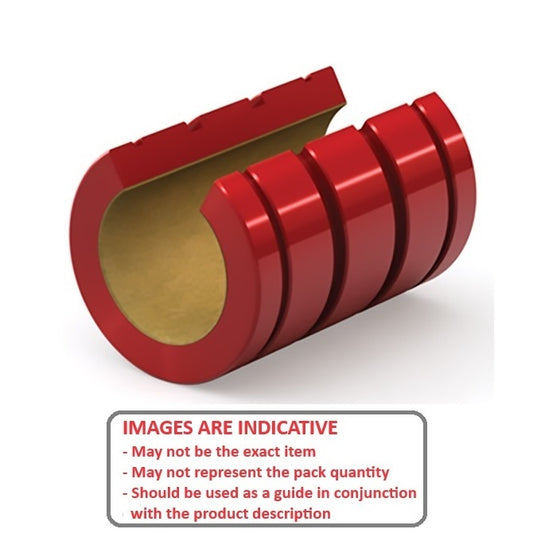

Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Open    Opening Distance: 7.950 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0127-022-032-FGP
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$113.95 AUD
$113.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Indicative
Nominal Shaft Size (T)
12.700
mm

(Equiv. 0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(Equiv. 0.875 in.)
Overall Length (L)
31.750
mm

(Equiv. 1.25 in.)
Max. Load
442.252
N
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 22.225 mm    Groove Width: 1.21 mm    Series: Precision    Type: Open    Opening Distance: 7.950 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0127-022-032-FGP
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$113.95 AUD
$113.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
15.875
mm

(Equiv. 0.625 in.)
Nom. Outer Diameter (D)
28.575
mm

(Equiv. 1.125 in.)
Overall Length (L)
38.100
mm

(Equiv. 1.5 in.)
Max. Load
666.780
N
Groove Distance (D)
25.400
mm
Groove Width
1.48
mm
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Open    Opening Distance: 9.525 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0159-029-038-FGP
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$107.86 AUD
$129.44 AUD $107.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
15.875
mm

(Equiv. 0.625 in.)
Nom. Outer Diameter (D)
28.575
mm

(Equiv. 1.125 in.)
Overall Length (L)
38.100
mm

(Equiv. 1.5 in.)
Max. Load
666.780
N
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 25.400 mm    Groove Width: 1.48 mm    Series: Precision    Type: Open    Opening Distance: 9.525 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0159-029-038-FGP
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$107.86 AUD
$129.44 AUD $107.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
19.050
mm

(Equiv. 0.75 in.)
Nom. Outer Diameter (D)
31.750
mm

(Equiv. 1.25 in.)
Overall Length (L)
41.275
mm

(Equiv. 1.625 in.)
Max. Load
864.093
N
Groove Distance (D)
26.975
mm
Groove Width
1.48
mm
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Open    Opening Distance: 11.113 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0191-032-041-FGP
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$105.50 AUD
$126.60 AUD $105.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
19.050
mm

(Equiv. 0.75 in.)
Nom. Outer Diameter (D)
31.750
mm

(Equiv. 1.25 in.)
Overall Length (L)
41.275
mm

(Equiv. 1.625 in.)
Max. Load
864.093
N
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 26.975 mm    Groove Width: 1.48 mm    Series: Precision    Type: Open    Opening Distance: 11.113 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0191-032-041-FGP
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$105.50 AUD
$126.60 AUD $105.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.400
mm

(Equiv. 1 in.)
Nom. Outer Diameter (D)
39.688
mm

(Equiv. 1.563 in.)
Overall Length (L)
57.150
mm

(Equiv. 2.25 in.)
Max. Load
1598.912
N
Groove Distance (D)
41.275
mm
Groove Width
1.78
mm
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Open    Opening Distance: 14.300 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0254-040-057-FGP
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$192.23 AUD
$230.67 AUD $192.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.400
mm

(Equiv. 1 in.)
Nom. Outer Diameter (D)
39.688
mm

(Equiv. 1.563 in.)
Overall Length (L)
57.150
mm

(Equiv. 2.25 in.)
Max. Load
1598.912
N
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 41.275 mm    Groove Width: 1.78 mm    Series: Precision    Type: Open    Opening Distance: 14.300 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0254-040-057-FGP
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$192.23 AUD
$230.67 AUD $192.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
31.750
mm

(Equiv. 1.25 in.)
Nom. Outer Diameter (D)
50.800
mm

(Equiv. 2 in.)
Overall Length (L)
66.675
mm

(Equiv. 2.625 in.)
Max. Load
2333.731
N
Groove Distance (D)
47.625
mm
Groove Width
1.78
mm
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Open    Opening Distance: 15.875 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0318-051-067-FGP
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$323.41 AUD
$388.09 AUD $323.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
31.750
mm

(Equiv. 1.25 in.)
Nom. Outer Diameter (D)
50.800
mm

(Equiv. 2 in.)
Overall Length (L)
66.675
mm

(Equiv. 2.625 in.)
Max. Load
2333.731
N
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 47.625 mm    Groove Width: 1.78 mm    Series: Precision    Type: Open    Opening Distance: 15.875 mm    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LOP-0318-051-067-FGP
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$323.41 AUD
$388.09 AUD $323.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
