Linear - Sliding Bearings - Frelon Gold Lined - Closed - Precision

Linear -> Sliding Bearings -> Frelon Gold Lined -> Closed -> Precision

There are 15 products in the sub-categories of Linear - Sliding Bearings - Frelon Gold Lined - Closed - Precision. Browse the Linear - Sliding Bearings - Frelon Gold Lined - Closed - Precision products table.

Category Details

A selection of Precision Closed Frelon Gold Lined Sliding Bearings Linear. Self lubricating. Eliminates galling and shaft damage. Dampens vibration for quiet smooth operation. High load capacity. Absorbs shock loads. Maintenance free. Chemically inert. Temp range -240 Deg C to +260 Deg C

  • Frelon Gold = 20000 PV
  • Dry Running Max Surface Speed Frelon Gold = 1.5 mtrs / sec (300 ft / min).
  • With Lubrication Max Surface Speed Frelon Gold = 4.1 mtrs / sec (825 ft / min)
  • Interaction of the Frelon Gold material and the shafting creates a microscopic transfer of Frelon Gold to the running surfaces filling the valleys during the initial break-in period.
  • Precision type has closer running clearances.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Sliding Bearings - Frelon Gold Lined - Closed - Precision category on the Small Parts & Bearings online store.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Groove Distance (D) Groove Width Indicative
Nominal Shaft Size (T)
4.750
mm

(Equiv. 0.187 in.)
Nom. Outer Diameter (D)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
14.275
mm

(Equiv. 0.562 in.)
Max. Load
49.895
N
Groove Distance (D)
9.525
mm
Groove Width
0.76
mm

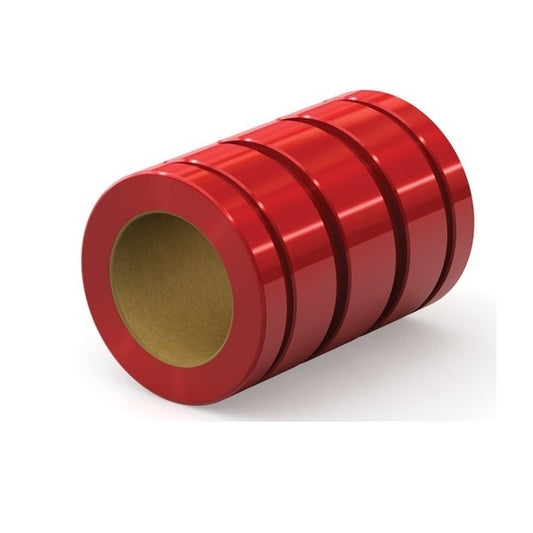

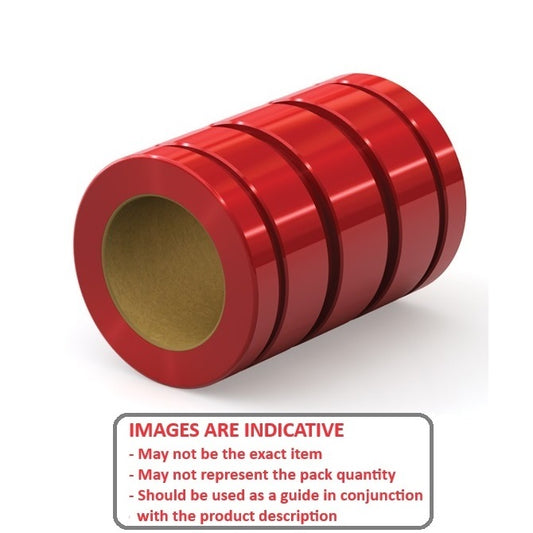

Sliding Bearings Linear - 4.75x9.525x14.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0048-010-014-FGP
Sliding Bearings Linear - 4.75x9.525x14.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$76.50 AUD
$76.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Overall Length (L) Max. Load Indicative
Nominal Shaft Size (T)
4.750
mm

(Equiv. 0.187 in.)
Nom. Outer Diameter (D)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
14.275
mm

(Equiv. 0.562 in.)
Max. Load
49.895
N
Sliding Bearings Linear - 4.75x9.525x14.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 9.525 mm    Groove Width: 0.76 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0048-010-014-FGP
Sliding Bearings Linear - 4.75x9.525x14.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$76.50 AUD
$76.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
6.350
mm

(Equiv. 0.25 in.)
Nom. Outer Diameter (D)
12.700
mm

(Equiv. 0.5 in.)
Overall Length (L)
19.050
mm

(Equiv. 0.75 in.)
Max. Load
136.078
N
Groove Distance (D)
11.100
mm
Groove Width
1.04
mm
Sliding Bearings Linear - 6.35x12.7x19.05 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0064-013-019-FGP
Sliding Bearings Linear - 6.35x12.7x19.05 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$57.59 AUD
$69.11 AUD $57.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
6.350
mm

(Equiv. 0.25 in.)
Nom. Outer Diameter (D)
12.700
mm

(Equiv. 0.5 in.)
Overall Length (L)
19.050
mm

(Equiv. 0.75 in.)
Max. Load
136.078
N
Sliding Bearings Linear - 6.35x12.7x19.05 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 11.100 mm    Groove Width: 1.04 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0064-013-019-FGP
Sliding Bearings Linear - 6.35x12.7x19.05 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$57.59 AUD
$69.11 AUD $57.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
9.525
mm

(Equiv. 0.375 in.)
Nom. Outer Diameter (D)
15.875
mm

(Equiv. 0.625 in.)
Overall Length (L)
22.225
mm

(Equiv. 0.875 in.)
Max. Load
231.332
N
Groove Distance (D)
14.275
mm
Groove Width
1.04
mm
Sliding Bearings Linear - 9.525x15.875x22.225 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0095-016-022-FGP
Sliding Bearings Linear - 9.525x15.875x22.225 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$68.77 AUD
$82.53 AUD $68.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
9.525
mm

(Equiv. 0.375 in.)
Nom. Outer Diameter (D)
15.875
mm

(Equiv. 0.625 in.)
Overall Length (L)
22.225
mm

(Equiv. 0.875 in.)
Max. Load
231.332
N
Sliding Bearings Linear - 9.525x15.875x22.225 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 14.275 mm    Groove Width: 1.04 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0095-016-022-FGP
Sliding Bearings Linear - 9.525x15.875x22.225 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$68.77 AUD
$82.53 AUD $68.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
10.000
mm

(Equiv. 0.394 in.)
Nom. Outer Diameter (D)
19.000
mm

(Equiv. 0.748 in.)
Overall Length (L)
29.000
mm

(Equiv. 1.142 in.)
Max. Load
305.000
N
Groove Distance (D)
19.400
mm
Groove Width
1.32
mm
Sliding Bearings Linear - 10x19x29 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0100-019-029-FGP
Sliding Bearings Linear - 10x19x29 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$75.77 AUD
$90.93 AUD $75.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
10.000
mm

(Equiv. 0.394 in.)
Nom. Outer Diameter (D)
19.000
mm

(Equiv. 0.748 in.)
Overall Length (L)
29.000
mm

(Equiv. 1.142 in.)
Max. Load
305.000
N
Sliding Bearings Linear - 10x19x29 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 19.400 mm    Groove Width: 1.32 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0100-019-029-FGP
Sliding Bearings Linear - 10x19x29 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$75.77 AUD
$90.93 AUD $75.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
12.000
mm

(Equiv. 0.472 in.)
Nom. Outer Diameter (D)
22.000
mm

(Equiv. 0.866 in.)
Overall Length (L)
32.000
mm

(Equiv. 1.26 in.)
Max. Load
403.000
N
Groove Distance (D)
20.000
mm
Groove Width
1.32
mm
Sliding Bearings Linear - 12x22x32 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0120-022-032-FGP
Sliding Bearings Linear - 12x22x32 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$72.14 AUD
$86.56 AUD $72.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
12.000
mm

(Equiv. 0.472 in.)
Nom. Outer Diameter (D)
22.000
mm

(Equiv. 0.866 in.)
Overall Length (L)
32.000
mm

(Equiv. 1.26 in.)
Max. Load
403.000
N
Sliding Bearings Linear - 12x22x32 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 20.000 mm    Groove Width: 1.32 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0120-022-032-FGP
Sliding Bearings Linear - 12x22x32 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$72.14 AUD
$86.56 AUD $72.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
12.700
mm

(Equiv. 0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(Equiv. 0.875 in.)
Overall Length (L)
31.750
mm

(Equiv. 1.25 in.)
Max. Load
442.252
N
Groove Distance (D)
22.225
mm
Groove Width
1.22
mm
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0127-022-032-FGP
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$72.14 AUD
$86.56 AUD $72.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
12.700
mm

(Equiv. 0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(Equiv. 0.875 in.)
Overall Length (L)
31.750
mm

(Equiv. 1.25 in.)
Max. Load
442.252
N
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 22.225 mm    Groove Width: 1.22 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0127-022-032-FGP
Sliding Bearings Linear - 12.7x22.225x31.75 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$72.14 AUD
$86.56 AUD $72.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
15.875
mm

(Equiv. 0.625 in.)
Nom. Outer Diameter (D)
28.575
mm

(Equiv. 1.125 in.)
Overall Length (L)
38.100
mm

(Equiv. 1.5 in.)
Max. Load
666.780
N
Groove Distance (D)
25.400
mm
Groove Width
1.47
mm
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0159-029-038-FGP
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$81.68 AUD
$98.02 AUD $81.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
15.875
mm

(Equiv. 0.625 in.)
Nom. Outer Diameter (D)
28.575
mm

(Equiv. 1.125 in.)
Overall Length (L)
38.100
mm

(Equiv. 1.5 in.)
Max. Load
666.780
N
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 25.400 mm    Groove Width: 1.47 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0159-029-038-FGP
Sliding Bearings Linear - 15.875x28.575x38.1 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$81.68 AUD
$98.02 AUD $81.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
16.000
mm

(Equiv. 0.63 in.)
Nom. Outer Diameter (D)
26.000
mm

(Equiv. 1.024 in.)
Overall Length (L)
36.000
mm

(Equiv. 1.417 in.)
Max. Load
605.000
N
Groove Distance (D)
22.000
mm
Groove Width
1.32
mm
Sliding Bearings Linear - 16x26x36 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0160-026-036-FGP
Sliding Bearings Linear - 16x26x36 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$86.86 AUD
$104.24 AUD $86.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
16.000
mm

(Equiv. 0.63 in.)
Nom. Outer Diameter (D)
26.000
mm

(Equiv. 1.024 in.)
Overall Length (L)
36.000
mm

(Equiv. 1.417 in.)
Max. Load
605.000
N
Sliding Bearings Linear - 16x26x36 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 22.000 mm    Groove Width: 1.32 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0160-026-036-FGP
Sliding Bearings Linear - 16x26x36 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$86.86 AUD
$104.24 AUD $86.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
19.050
mm

(Equiv. 0.75 in.)
Nom. Outer Diameter (D)
31.750
mm

(Equiv. 1.25 in.)
Overall Length (L)
41.275
mm

(Equiv. 1.625 in.)
Max. Load
864.093
N
Groove Distance (D)
26.975
mm
Groove Width
1.47
mm
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0191-032-041-FGP
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$76.32 AUD
$91.58 AUD $76.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
19.050
mm

(Equiv. 0.75 in.)
Nom. Outer Diameter (D)
31.750
mm

(Equiv. 1.25 in.)
Overall Length (L)
41.275
mm

(Equiv. 1.625 in.)
Max. Load
864.093
N
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 26.975 mm    Groove Width: 1.47 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0191-032-041-FGP
Sliding Bearings Linear - 19.05x31.75x41.275 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$76.32 AUD
$91.58 AUD $76.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
20.000
mm

(Equiv. 0.787 in.)
Nom. Outer Diameter (D)
32.000
mm

(Equiv. 1.26 in.)
Overall Length (L)
45.000
mm

(Equiv. 1.772 in.)
Max. Load
945.000
N
Groove Distance (D)
28.000
mm
Groove Width
1.63
mm
Sliding Bearings Linear - 20x32x45 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0200-032-045-FGP
Sliding Bearings Linear - 20x32x45 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$89.23 AUD
$107.07 AUD $89.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
20.000
mm

(Equiv. 0.787 in.)
Nom. Outer Diameter (D)
32.000
mm

(Equiv. 1.26 in.)
Overall Length (L)
45.000
mm

(Equiv. 1.772 in.)
Max. Load
945.000
N
Sliding Bearings Linear - 20x32x45 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 28.000 mm    Groove Width: 1.63 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0200-032-045-FGP
Sliding Bearings Linear - 20x32x45 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$89.23 AUD
$107.07 AUD $89.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.000
mm

(Equiv. 0.984 in.)
Nom. Outer Diameter (D)
40.000
mm

(Equiv. 1.575 in.)
Overall Length (L)
58.000
mm

(Equiv. 2.283 in.)
Max. Load
1523.000
N
Groove Distance (D)
40.000
mm
Groove Width
1.90
mm
Sliding Bearings Linear - 25x40x58 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0250-040-058-FGP
Sliding Bearings Linear - 25x40x58 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$169.68 AUD
$203.62 AUD $169.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.000
mm

(Equiv. 0.984 in.)
Nom. Outer Diameter (D)
40.000
mm

(Equiv. 1.575 in.)
Overall Length (L)
58.000
mm

(Equiv. 2.283 in.)
Max. Load
1523.000
N
Sliding Bearings Linear - 25x40x58 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 40.000 mm    Groove Width: 1.90 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0250-040-058-FGP
Sliding Bearings Linear - 25x40x58 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$169.68 AUD
$203.62 AUD $169.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.400
mm

(Equiv. 1 in.)
Nom. Outer Diameter (D)
39.688
mm

(Equiv. 1.563 in.)
Overall Length (L)
57.150
mm

(Equiv. 2.25 in.)
Max. Load
1598.912
N
Groove Distance (D)
41.275
mm
Groove Width
1.78
mm
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0254-040-057-FGP
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$154.77 AUD
$185.73 AUD $154.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
25.400
mm

(Equiv. 1 in.)
Nom. Outer Diameter (D)
39.688
mm

(Equiv. 1.563 in.)
Overall Length (L)
57.150
mm

(Equiv. 2.25 in.)
Max. Load
1598.912
N
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 41.275 mm    Groove Width: 1.78 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0254-040-057-FGP
Sliding Bearings Linear - 25.4x39.688x57.15 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$154.77 AUD
$185.73 AUD $154.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
31.750
mm

(Equiv. 1.25 in.)
Nom. Outer Diameter (D)
50.800
mm

(Equiv. 2 in.)
Overall Length (L)
66.675
mm

(Equiv. 2.625 in.)
Max. Load
2333.731
N
Groove Distance (D)
47.625
mm
Groove Width
1.78
mm
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0318-051-067-FGP
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$255.86 AUD
$307.04 AUD $255.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
31.750
mm

(Equiv. 1.25 in.)
Nom. Outer Diameter (D)
50.800
mm

(Equiv. 2 in.)
Overall Length (L)
66.675
mm

(Equiv. 2.625 in.)
Max. Load
2333.731
N
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 47.625 mm    Groove Width: 1.78 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0318-051-067-FGP
Sliding Bearings Linear - 31.75x50.8x66.675 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$255.86 AUD
$307.04 AUD $255.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
38.100
mm

(Equiv. 1.5 in.)
Nom. Outer Diameter (D)
60.325
mm

(Equiv. 2.375 in.)
Overall Length (L)
76.200
mm

(Equiv. 3 in.)
Max. Load
3197.824
N
Groove Distance (D)
57.150
mm
Groove Width
2.26
mm
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0381-060-076-FGP
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$304.77 AUD
$365.73 AUD $304.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
38.100
mm

(Equiv. 1.5 in.)
Nom. Outer Diameter (D)
60.325
mm

(Equiv. 2.375 in.)
Overall Length (L)
76.200
mm

(Equiv. 3 in.)
Max. Load
3197.824
N
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 57.150 mm    Groove Width: 2.26 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0381-060-076-FGP
Sliding Bearings Linear - 38.1x60.325x76.2 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$304.77 AUD
$365.73 AUD $304.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
50.800
mm

(Equiv. 2 in.)
Nom. Outer Diameter (D)
76.200
mm

(Equiv. 3 in.)
Overall Length (L)
101.600
mm

(Equiv. 4 in.)
Max. Load
5681.240
N
Groove Distance (D)
76.200
mm
Groove Width
2.67
mm
Sliding Bearings Linear - 50.8x76.2x101.6 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0508-076-102-FGP
Sliding Bearings Linear - 50.8x76.2x101.6 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$600.77 AUD
$720.93 AUD $600.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Shaft Size (T)
50.800
mm

(Equiv. 2 in.)
Nom. Outer Diameter (D)
76.200
mm

(Equiv. 3 in.)
Overall Length (L)
101.600
mm

(Equiv. 4 in.)
Max. Load
5681.240
N
Sliding Bearings Linear - 50.8x76.2x101.6 mm - Frelon Gold Lined
Material: Frelon Gold Lined    Groove Distance (D): 76.200 mm    Groove Width: 2.67 mm    Series: Precision    Type: Closed    Max Speed Dry: 42.600 m/s    Max Speed Lubricated: 122.000 m/s
Part Number: LCP-0508-076-102-FGP
Sliding Bearings Linear - 50.8x76.2x101.6 mm - Frelon Gold Lined Bearing
Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 05, 2025
$600.77 AUD
$720.93 AUD $600.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
