Collection: Linear - Rail Supports - With Shaft
Linear -> Rail Supports -> With ShaftThere are 14 products in the sub-categories of Linear - Rail Supports - With Shaft. Browse the Linear - Rail Supports - With Shaft products table. To narrow down the selection, please choose a sub-category from the links below.

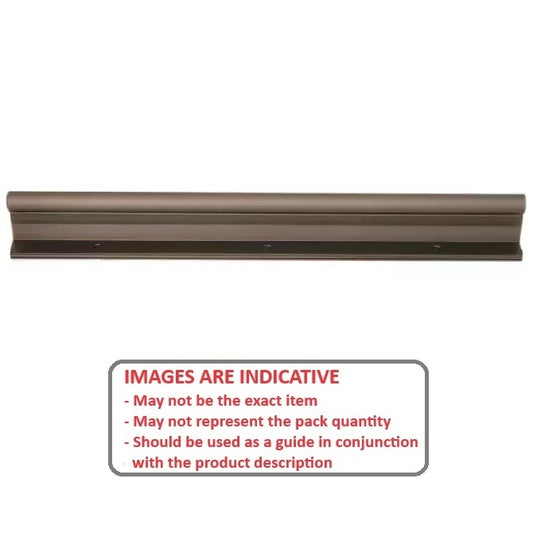

Linear - Rail Supports - With Shaft - One Piece
A selection of One Piece With Shaft Rail Supports Linear. One piece...

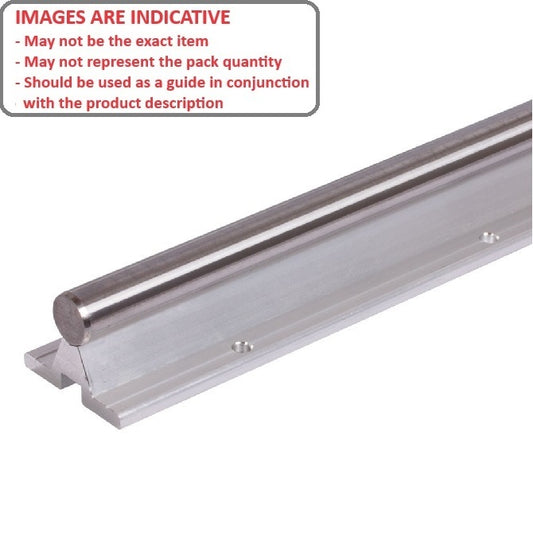

Linear - Rail Supports - With Shaft - Standard
A selection of Standard With Shaft Rail Supports Linear. Includes linear shafting....
Category Details
This category includes various types of rail supports linear.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Linear - Rail Supports - With Shaft category on the Small Parts & Bearings online store.
| Suitable Shaft Size (d) | Height to Shaft Centre (H) | Length (+0/-1.59mm) | Foot Height (V) | Base Width (A) | Support Angle (a) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Suitable Shaft Size (d)
12.70
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
304.80
mm (Equiv. 12 in.) |
Foot Height (V)
4.78
mm |
Base Width (A)
38.10
mm |
Support Angle (a)
101.6
°
|
|
|
Hole Spacing (T): 4.29 mm
Base Mtg. Hole (U): 25.40 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL305RS (Each)

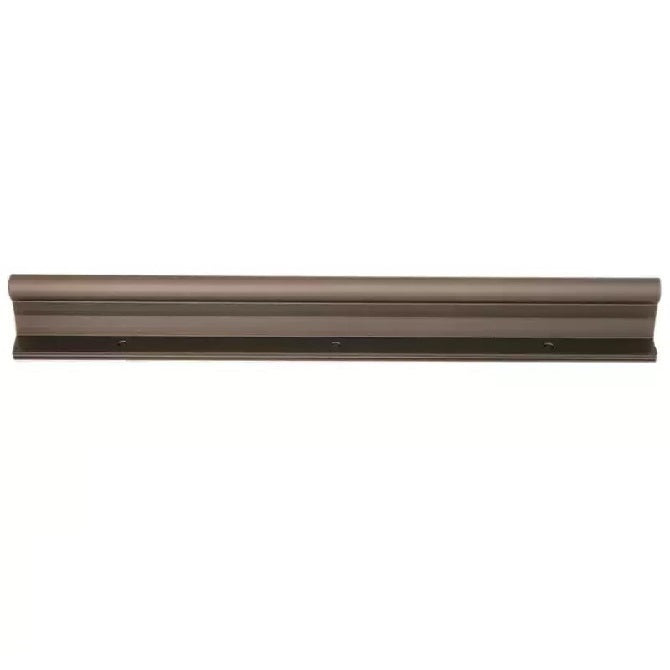

Rail Supports Linear - 12.7x28.58x304.8 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$265.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Suitable Shaft Size (d) | Height to Shaft Centre (H) | Length (+0/-1.59mm) | Foot Height (V) |
Indicative Image |
||
|
Suitable Shaft Size (d)
12.70
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
304.80
mm (Equiv. 12 in.) |
Foot Height (V)
4.78
mm |
|
||
|
Base Width (A): 38.10 mm
Support Angle (a): 101.6 °
Hole Spacing (T): 4.29 mm
Base Mtg. Hole (U): 25.40 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL305RS (Each)
Rail Supports Linear - 12.7x28.58x304.8 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$265.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
12.70
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
609.60
mm (Equiv. 24 in.) |
Foot Height (V)
4.78
mm |
Base Width (A)
38.10
mm |
Support Angle (a)
101.6
°
|
|
|
Hole Spacing (T): 4.29 mm
Base Mtg. Hole (U): 25.40 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL310RS (Each)
Rail Supports Linear - 12.7x28.58x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$562.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
12.70
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
609.60
mm (Equiv. 24 in.) |
Foot Height (V)
4.78
mm |
|
||
|
Base Width (A): 38.10 mm
Support Angle (a): 101.6 °
Hole Spacing (T): 4.29 mm
Base Mtg. Hole (U): 25.40 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL310RS (Each)
Rail Supports Linear - 12.7x28.58x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$562.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
12.700
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
4.826
mm |
Base Width (A)
38.1
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.318 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1950RS (Each)
Rail Supports Linear - 12.7x28.58x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$752.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
12.700
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
4.826
mm |
|
||
|
Base Width (A): 38.1 mm
Support Angle (a): 20 °
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.318 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1950RS (Each)
Rail Supports Linear - 12.7x28.58x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$752.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
12.700
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
4.826
mm |
Base Width (A)
38.1
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.318 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1956RS (Each)

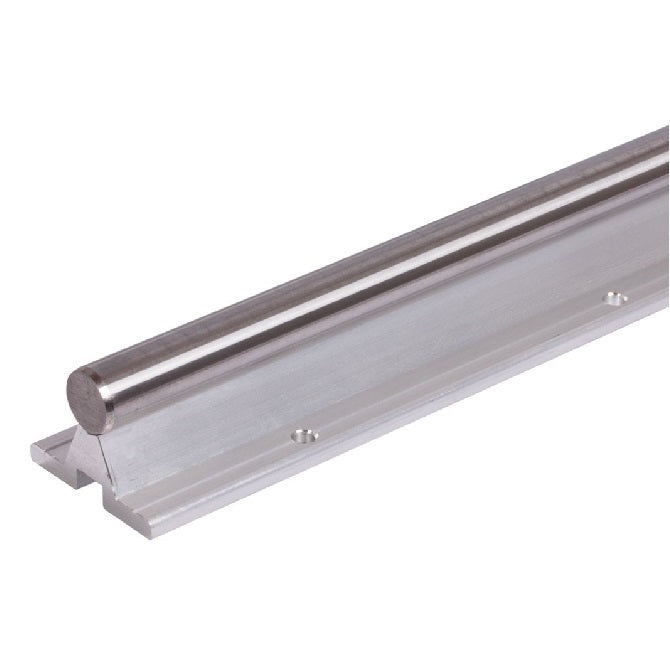

Rail Supports Linear - 12.7x28.58x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,071.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
12.700
mm (Equiv. 0.5 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
4.826
mm |
|
||
|
Base Width (A): 38.1 mm
Support Angle (a): 20 °
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.318 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1956RS (Each)
Rail Supports Linear - 12.7x28.58x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,071.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
15.875
mm (Equiv. 0.625 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
6.350
mm |
Base Width (A)
41.4
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.826 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1951RS (Each)
Rail Supports Linear - 15.875x28.58x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$721.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
15.875
mm (Equiv. 0.625 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
6.350
mm |
|
||
|
Base Width (A): 41.4 mm
Support Angle (a): 20 °
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.826 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1951RS (Each)
Rail Supports Linear - 15.875x28.58x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$721.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
15.875
mm (Equiv. 0.625 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
6.350
mm |
Base Width (A)
41.4
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.826 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1957RS (Each)
Rail Supports Linear - 15.875x28.58x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,237.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
15.875
mm (Equiv. 0.625 in.) |
Height to Shaft Centre (H)
28.58
mm (Equiv. 1.125 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
6.350
mm |
|
||
|
Base Width (A): 41.4 mm
Support Angle (a): 20 °
Hole Spacing (T): 101.6 mm
Base Mtg. Hole (U): 4.826 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1957RS (Each)
Rail Supports Linear - 15.875x28.58x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,237.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
19.05
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.10
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
304.80
mm (Equiv. 12 in.) |
Foot Height (V)
6.35
mm |
Base Width (A)
44.45
mm |
Support Angle (a)
152.4
°
|
|
|
Hole Spacing (T): 5.61 mm
Base Mtg. Hole (U): 31.75 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL315RS (Each)
Rail Supports Linear - 19.05x38.1x304.8 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$325.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
19.05
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.10
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
304.80
mm (Equiv. 12 in.) |
Foot Height (V)
6.35
mm |
|
||
|
Base Width (A): 44.45 mm
Support Angle (a): 152.4 °
Hole Spacing (T): 5.61 mm
Base Mtg. Hole (U): 31.75 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL315RS (Each)
Rail Supports Linear - 19.05x38.1x304.8 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$325.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
19.05
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.10
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
609.60
mm (Equiv. 24 in.) |
Foot Height (V)
6.35
mm |
Base Width (A)
44.45
mm |
Support Angle (a)
152.4
°
|
|
|
Hole Spacing (T): 5.61 mm
Base Mtg. Hole (U): 31.75 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL320RS (Each)
Rail Supports Linear - 19.05x38.1x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$675.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
19.05
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.10
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
609.60
mm (Equiv. 24 in.) |
Foot Height (V)
6.35
mm |
|
||
|
Base Width (A): 44.45 mm
Support Angle (a): 152.4 °
Hole Spacing (T): 5.61 mm
Base Mtg. Hole (U): 31.75 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL320RS (Each)
Rail Supports Linear - 19.05x38.1x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$675.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
19.050
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.1
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
6.350
mm |
Base Width (A)
44.45
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 5.588 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1952RS (Each)
Rail Supports Linear - 19.05x38.1x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$828.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
19.050
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.1
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
6.350
mm |
|
||
|
Base Width (A): 44.45 mm
Support Angle (a): 20 °
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 5.588 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1952RS (Each)
Rail Supports Linear - 19.05x38.1x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$828.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
19.050
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.1
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
6.350
mm |
Base Width (A)
44.45
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 5.588 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1958RS (Each)
Rail Supports Linear - 19.05x38.1x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,711.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
19.050
mm (Equiv. 0.75 in.) |
Height to Shaft Centre (H)
38.1
mm (Equiv. 1.5 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
6.350
mm |
|
||
|
Base Width (A): 44.45 mm
Support Angle (a): 20 °
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 5.588 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1958RS (Each)
Rail Supports Linear - 19.05x38.1x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,711.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
25.40
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
304.80
mm (Equiv. 12 in.) |
Foot Height (V)
6.35
mm |
Base Width (A)
53.98
mm |
Support Angle (a)
152.4
°
|
|
|
Hole Spacing (T): 7.14 mm
Base Mtg. Hole (U): 38.10 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL325RS (Each)
Rail Supports Linear - 25.4x44.45x304.8 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$401.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
25.40
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
304.80
mm (Equiv. 12 in.) |
Foot Height (V)
6.35
mm |
|
||
|
Base Width (A): 53.98 mm
Support Angle (a): 152.4 °
Hole Spacing (T): 7.14 mm
Base Mtg. Hole (U): 38.10 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL325RS (Each)
Rail Supports Linear - 25.4x44.45x304.8 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$401.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
25.40
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
609.60
mm (Equiv. 24 in.) |
Foot Height (V)
6.35
mm |
Base Width (A)
53.98
mm |
Support Angle (a)
152.4
°
|
|
|
Hole Spacing (T): 7.14 mm
Base Mtg. Hole (U): 38.10 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL330RS (Each)
Rail Supports Linear - 25.4x44.45x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$754.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
25.40
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
609.60
mm (Equiv. 24 in.) |
Foot Height (V)
6.35
mm |
|
||
|
Base Width (A): 53.98 mm
Support Angle (a): 152.4 °
Hole Spacing (T): 7.14 mm
Base Mtg. Hole (U): 38.10 mm
Category: Linear - Rail Supports - With Shaft - One Piece |
||||||
|
Part Number: PBL330RS (Each)
Rail Supports Linear - 25.4x44.45x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$754.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
25.400
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
6.350
mm |
Base Width (A)
54.1
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 7.112 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1953RS (Each)
Rail Supports Linear - 25.4x44.45x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,053.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
25.400
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
609.6
mm (Equiv. 24 in.) |
Foot Height (V)
6.350
mm |
|
||
|
Base Width (A): 54.1 mm
Support Angle (a): 20 °
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 7.112 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1953RS (Each)
Rail Supports Linear - 25.4x44.45x609.6 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$1,053.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Suitable Shaft Size (d)
25.400
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
6.350
mm |
Base Width (A)
54.1
mm |
Support Angle (a)
20
°
|
|
|
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 7.112 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1959RS (Each)
Rail Supports Linear - 25.4x44.45x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$2,087.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Suitable Shaft Size (d)
25.400
mm (Equiv. 1 in.) |
Height to Shaft Centre (H)
44.45
mm (Equiv. 1.75 in.) |
Length (+0/-1.59mm)
1219.2
mm (Equiv. 48 in.) |
Foot Height (V)
6.350
mm |
|
||
|
Base Width (A): 54.1 mm
Support Angle (a): 20 °
Hole Spacing (T): 152.4 mm
Base Mtg. Hole (U): 7.112 mm
Category: Linear - Rail Supports - With Shaft - Standard |
||||||
|
Part Number: TLM-1959RS (Each)
Rail Supports Linear - 25.4x44.45x1219.2 mm With Shaft Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 23, 2025 Regular price
$2,087.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
