Collection: Linear - Mini Rail Self-Lubricating

Linear -> Mini Rail Self-Lubricating

There are 23 products in the sub-categories of Linear - Mini Rail Self-Lubricating. Scroll down or follow the link to Linear - Mini Rail Self-Lubricating in the products table to see all these items combined into a handy table with filters.

Category Details

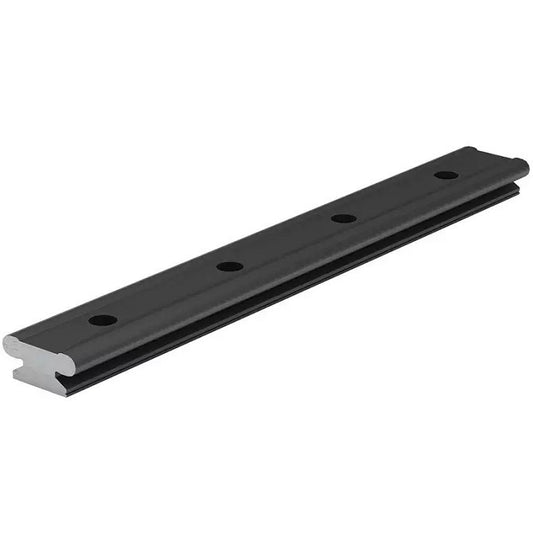

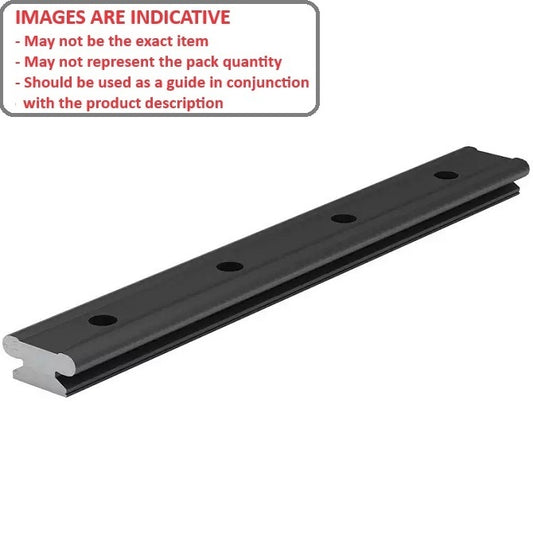

A selection of Mini Rail Self-Lubricating Linear. Rail Only. Carriages sold separately - match by rail width.

Low profile self-lubricating linear guide system with one piece carriage design. Excellent alternative to linear ball bearing systems. Precision series made from RC70 ceramic coated rail with self lubricating Frelon Gold.
Dampens vibration and tolerates shock loads. Will not rust. No metal to metal contact. No balls or rolling elements to trap contamination, skid or damage rail.
Operation is consistent, smooth and quiet. Maintenance free. Used in packaging machines, medical equipment, wash-down and harsh environments.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Linear - Mini Rail Self-Lubricating category on the Small Parts & Bearings online store.

Rail Width (A)	Running Clearance	Overall Height (B)	Rail Height (B1)	Rail Hole Size (H)	Rail Hole Size (H1)
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm	Rail Hole Size (H) 4.20 mm	Rail Hole Size (H1) 2.40 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 70.00 mm
Part Number: PBC-1151RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $39.23 AUD Regular price ~~$47.07 AUD~~ Sale price $39.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A)	Running Clearance	Overall Height (B)	Rail Height (B1)	Indicative Image
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.20 mm Rail Hole Size (H1): 2.40 mm Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 70.00 mm
Part Number: PBC-1151RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $39.23 AUD Regular price ~~$47.07 AUD~~ Sale price $39.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1151RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1151RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Regular price $39.23 AUD Regular price ~~$47.07 AUD~~ Sale price $39.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm	Rail Hole Size (H) 4.20 mm	Rail Hole Size (H1) 2.40 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 85.00 mm
Part Number: PBC-1152RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $46.68 AUD Regular price ~~$56.02 AUD~~ Sale price $46.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.20 mm Rail Hole Size (H1): 2.40 mm Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 85.00 mm
Part Number: PBC-1152RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $46.68 AUD Regular price ~~$56.02 AUD~~ Sale price $46.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1152RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1152RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Regular price $46.68 AUD Regular price ~~$56.02 AUD~~ Sale price $46.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm	Rail Hole Size (H) 4.20 mm	Rail Hole Size (H1) 2.40 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 130.00 mm
Part Number: PBC-1154RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $65.68 AUD Regular price ~~$78.82 AUD~~ Sale price $65.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.20 mm Rail Hole Size (H1): 2.40 mm Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 130.00 mm
Part Number: PBC-1154RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $65.68 AUD Regular price ~~$78.82 AUD~~ Sale price $65.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1154RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1154RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Regular price $65.68 AUD Regular price ~~$78.82 AUD~~ Sale price $65.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm	Rail Hole Size (H) 4.20 mm	Rail Hole Size (H1) 2.40 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 100.00 mm
Part Number: PBC-1153RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $56.23 AUD Regular price ~~$67.47 AUD~~ Sale price $56.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 7.00 mm (Equiv. 0.276 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 8.00 mm (Equiv. 0.315 in.)	Rail Height (B1) 6.20 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.20 mm Rail Hole Size (H1): 2.40 mm Rail Hole Depth (H2): 2.30 mm L: 1.70 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 100.00 mm
Part Number: PBC-1153RS Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $56.23 AUD Regular price ~~$67.47 AUD~~ Sale price $56.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1153RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1153RS --- Mini Rail Self-Lubricating Linear - 7 0.025-0.051 8 mm - Ceramic Coated RC70 with Frelon Gold Regular price $56.23 AUD Regular price ~~$67.47 AUD~~ Sale price $56.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm	Rail Hole Size (H) 4.50 mm	Rail Hole Size (H1) 2.60 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 55.00 mm
Part Number: PBC-1155RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $29.68 AUD Regular price ~~$35.62 AUD~~ Sale price $29.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.50 mm Rail Hole Size (H1): 2.60 mm Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 3.50 mm Bolt for Rail End (S): 5.00 mm Hole Spacing (T): 15.00 mm Rail Length: 55.00 mm
Part Number: PBC-1155RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $29.68 AUD Regular price ~~$35.62 AUD~~ Sale price $29.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1155RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1155RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Regular price $29.68 AUD Regular price ~~$35.62 AUD~~ Sale price $29.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm	Rail Hole Size (H) 4.50 mm	Rail Hole Size (H1) 2.60 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 4.50 mm Bolt for Rail End (S): 7.50 mm Hole Spacing (T): 20.00 mm Rail Length: 95.00 mm
Part Number: PBC-1157RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $53.05 AUD Regular price ~~$63.65 AUD~~ Sale price $53.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.50 mm Rail Hole Size (H1): 2.60 mm Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 4.50 mm Bolt for Rail End (S): 7.50 mm Hole Spacing (T): 20.00 mm Rail Length: 95.00 mm
Part Number: PBC-1157RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $53.05 AUD Regular price ~~$63.65 AUD~~ Sale price $53.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1157RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1157RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Regular price $53.05 AUD Regular price ~~$63.65 AUD~~ Sale price $53.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm	Rail Hole Size (H) 4.50 mm	Rail Hole Size (H1) 2.60 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 4.50 mm Bolt for Rail End (S): 7.50 mm Hole Spacing (T): 20.00 mm Rail Length: 275.00 mm
Part Number: PBC-1161RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $120.41 AUD Regular price ~~$144.49 AUD~~ Sale price $120.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.50 mm Rail Hole Size (H1): 2.60 mm Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 4.50 mm Bolt for Rail End (S): 7.50 mm Hole Spacing (T): 20.00 mm Rail Length: 275.00 mm
Part Number: PBC-1161RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $120.41 AUD Regular price ~~$144.49 AUD~~ Sale price $120.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1161RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1161RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Regular price $120.41 AUD Regular price ~~$144.49 AUD~~ Sale price $120.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm	Rail Hole Size (H) 4.50 mm	Rail Hole Size (H1) 2.60 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 4.50 mm Bolt for Rail End (S): 7.50 mm Hole Spacing (T): 20.00 mm Rail Length: 155.00 mm
Part Number: PBC-1159RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 9.00 mm (Equiv. 0.354 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 10.00 mm (Equiv. 0.394 in.)	Rail Height (B1) 7.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 4.50 mm Rail Hole Size (H1): 2.60 mm Rail Hole Depth (H2): 3.00 mm L: 2.40 mm M: 4.50 mm Bolt for Rail End (S): 7.50 mm Hole Spacing (T): 20.00 mm Rail Length: 155.00 mm
Part Number: PBC-1159RS Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1159RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1159RS --- Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold Regular price $81.86 AUD Regular price ~~$98.24 AUD~~ Sale price $81.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 120.00 mm
Part Number: PBC-1162RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $64.23 AUD Regular price ~~$77.07 AUD~~ Sale price $64.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 120.00 mm
Part Number: PBC-1162RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $64.23 AUD Regular price ~~$77.07 AUD~~ Sale price $64.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1162RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1162RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Regular price $64.23 AUD Regular price ~~$77.07 AUD~~ Sale price $64.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 470.00 mm
Part Number: PBC-1168RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $297.05 AUD Regular price Sale price $297.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 470.00 mm
Part Number: PBC-1168RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $297.05 AUD Regular price Sale price $297.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1168RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold PBC-1168RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Regular price $297.05 AUD Regular price Sale price $297.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 320.00 mm
Part Number: PBC-1166RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $171.14 AUD Regular price ~~$205.36 AUD~~ Sale price $171.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 320.00 mm
Part Number: PBC-1166RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $171.14 AUD Regular price ~~$205.36 AUD~~ Sale price $171.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1166RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1166RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Regular price $171.14 AUD Regular price ~~$205.36 AUD~~ Sale price $171.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 220.00 mm
Part Number: PBC-1164RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $117.14 AUD Regular price ~~$140.56 AUD~~ Sale price $117.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 13.00 mm (Equiv. 0.512 in.)	Rail Height (B1) 8.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 3.50 mm L: 4.60 mm M: 6.00 mm Bolt for Rail End (S): 10.00 mm Hole Spacing (T): 25.00 mm Rail Length: 220.00 mm
Part Number: PBC-1164RS Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $117.14 AUD Regular price ~~$140.56 AUD~~ Sale price $117.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1164RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1164RS --- Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold Regular price $117.14 AUD Regular price ~~$140.56 AUD~~ Sale price $117.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 27.00 mm (Equiv. 1.063 in.)	Overall Height (B) 34.00 mm (Equiv. 1.339 in.)	Rail Height (B1) M3 mm	Rail Hole Size (H) 15.00 mm	Rail Hole Size (H1) 20.00 mm
Material: Aluminium Rail Hole Depth (H2): 10.70 mm L: 3.50 mm

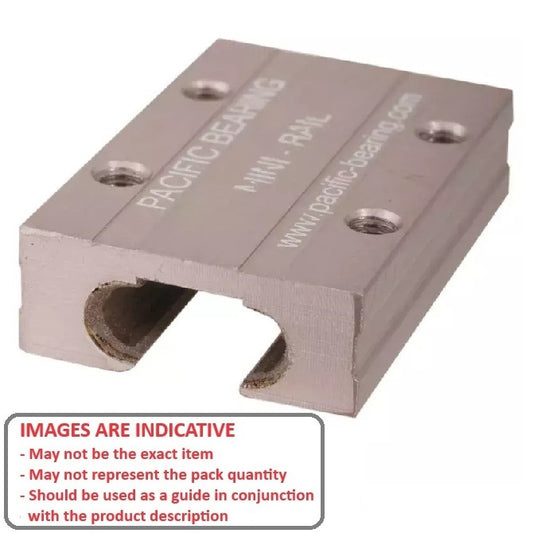

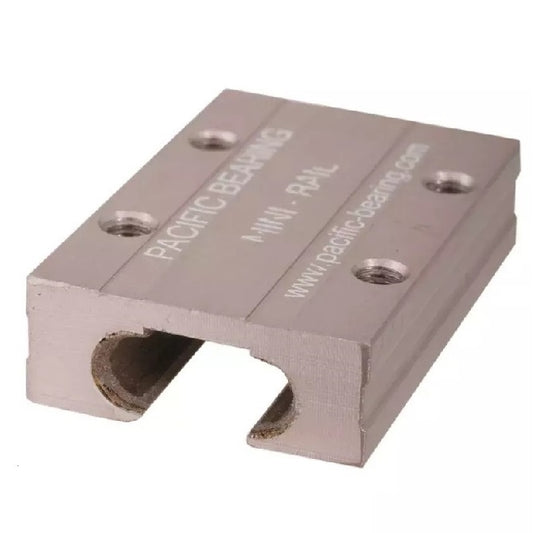

Part Number: PBC-1214RS Mini Rail Carriages Linear - 12x27x34 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $152.95 AUD Regular price Sale price $152.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 12.00 mm (Equiv. 0.472 in.)	Running Clearance 27.00 mm (Equiv. 1.063 in.)	Overall Height (B) 34.00 mm (Equiv. 1.339 in.)	Rail Height (B1) M3 mm
Material: Aluminium Rail Hole Size (H): 15.00 mm Rail Hole Size (H1): 20.00 mm Rail Hole Depth (H2): 10.70 mm L: 3.50 mm
Part Number: PBC-1214RS Mini Rail Carriages Linear - 12x27x34 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $152.95 AUD Regular price Sale price $152.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1214RS --- Mini Rail Carriages Linear - 12x27x34 mm - Aluminium PBC-1214RS --- Mini Rail Carriages Linear - 12x27x34 mm - Aluminium Regular price $152.95 AUD Regular price Sale price $152.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 670.00 mm
Part Number: PBC-1174RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $377.32 AUD Regular price ~~$452.78 AUD~~ Sale price $377.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 670.00 mm
Part Number: PBC-1174RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $377.32 AUD Regular price ~~$452.78 AUD~~ Sale price $377.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1174RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1174RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Regular price $377.32 AUD Regular price ~~$452.78 AUD~~ Sale price $377.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 150.00 mm
Part Number: PBC-1169RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $81.59 AUD Regular price ~~$97.91 AUD~~ Sale price $81.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 150.00 mm
Part Number: PBC-1169RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $81.59 AUD Regular price ~~$97.91 AUD~~ Sale price $81.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1169RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1169RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Regular price $81.59 AUD Regular price ~~$97.91 AUD~~ Sale price $81.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 310.00 mm
Part Number: PBC-1171RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $168.23 AUD Regular price ~~$201.87 AUD~~ Sale price $168.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 310.00 mm
Part Number: PBC-1171RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $168.23 AUD Regular price ~~$201.87 AUD~~ Sale price $168.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1171RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1171RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Regular price $168.23 AUD Regular price ~~$201.87 AUD~~ Sale price $168.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm	Rail Hole Size (H) 6.00 mm	Rail Hole Size (H1) 3.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 470.00 mm
Part Number: PBC-1173RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $252.68 AUD Regular price ~~$303.22 AUD~~ Sale price $252.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 16.00 mm (Equiv. 0.63 in.)	Rail Height (B1) 9.30 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 6.00 mm Rail Hole Size (H1): 3.50 mm Rail Hole Depth (H2): 4.50 mm L: 6.30 mm M: 7.50 mm Bolt for Rail End (S): 15.00 mm Hole Spacing (T): 40.00 mm Rail Length: 470.00 mm
Part Number: PBC-1173RS Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $252.68 AUD Regular price ~~$303.22 AUD~~ Sale price $252.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1173RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1173RS --- Mini Rail Self-Lubricating Linear - 15 0.025-0.051 16 mm - Ceramic Coated RC70 with Frelon Gold Regular price $252.68 AUD Regular price ~~$303.22 AUD~~ Sale price $252.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 32.00 mm (Equiv. 1.26 in.)	Overall Height (B) 42.00 mm (Equiv. 1.654 in.)	Rail Height (B1) M3 mm	Rail Hole Size (H) 20.00 mm	Rail Hole Size (H1) 25.00 mm
Material: Aluminium Rail Hole Depth (H2): 14.10 mm L: 3.50 mm
Part Number: PBC-1215RS Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $146.14 AUD Regular price ~~$175.36 AUD~~ Sale price $146.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 15.00 mm (Equiv. 0.591 in.)	Running Clearance 32.00 mm (Equiv. 1.26 in.)	Overall Height (B) 42.00 mm (Equiv. 1.654 in.)	Rail Height (B1) M3 mm
Material: Aluminium Rail Hole Size (H): 20.00 mm Rail Hole Size (H1): 25.00 mm Rail Hole Depth (H2): 14.10 mm L: 3.50 mm
Part Number: PBC-1215RS Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $146.14 AUD Regular price ~~$175.36 AUD~~ Sale price $146.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1215RS --- Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Sale PBC-1215RS --- Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Regular price $146.14 AUD Regular price ~~$175.36 AUD~~ Sale price $146.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm	Rail Hole Size (H) 9.50 mm	Rail Hole Size (H1) 6.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 340.00 mm
Part Number: PBC-1177RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $185.14 AUD Regular price ~~$222.16 AUD~~ Sale price $185.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 9.50 mm Rail Hole Size (H1): 6.00 mm Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 340.00 mm
Part Number: PBC-1177RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $185.14 AUD Regular price ~~$222.16 AUD~~ Sale price $185.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1177RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1177RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Regular price $185.14 AUD Regular price ~~$222.16 AUD~~ Sale price $185.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm	Rail Hole Size (H) 9.50 mm	Rail Hole Size (H1) 6.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 220.00 mm
Part Number: PBC-1175RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $132.59 AUD Regular price ~~$159.11 AUD~~ Sale price $132.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 9.50 mm Rail Hole Size (H1): 6.00 mm Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 220.00 mm
Part Number: PBC-1175RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $132.59 AUD Regular price ~~$159.11 AUD~~ Sale price $132.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1175RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1175RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Regular price $132.59 AUD Regular price ~~$159.11 AUD~~ Sale price $132.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm	Rail Hole Size (H) 9.50 mm	Rail Hole Size (H1) 6.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 880.00 mm
Part Number: PBC-1180RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $548.23 AUD Regular price ~~$657.87 AUD~~ Sale price $548.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 9.50 mm Rail Hole Size (H1): 6.00 mm Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 880.00 mm
Part Number: PBC-1180RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $548.23 AUD Regular price ~~$657.87 AUD~~ Sale price $548.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1180RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1180RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Regular price $548.23 AUD Regular price ~~$657.87 AUD~~ Sale price $548.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm	Rail Hole Size (H) 9.50 mm	Rail Hole Size (H1) 6.00 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 460.00 mm
Part Number: PBC-1178RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $257.59 AUD Regular price ~~$309.11 AUD~~ Sale price $257.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 0.025-0.051 mm (Equiv. 0.001 in.)	Overall Height (B) 25.00 mm (Equiv. 0.984 in.)	Rail Height (B1) 13.50 mm
Material: Ceramic Coated RC70 with Frelon Gold Rail Hole Size (H): 9.50 mm Rail Hole Size (H1): 6.00 mm Rail Hole Depth (H2): 8.50 mm L: 11.20 mm M: 10.00 mm Bolt for Rail End (S): 20.00 mm Hole Spacing (T): 60.00 mm Rail Length: 460.00 mm
Part Number: PBC-1178RS Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $257.59 AUD Regular price ~~$309.11 AUD~~ Sale price $257.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1178RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Sale PBC-1178RS --- Mini Rail Self-Lubricating Linear - 20 0.025-0.051 25 mm - Ceramic Coated RC70 with Frelon Gold Regular price $257.59 AUD Regular price ~~$309.11 AUD~~ Sale price $257.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 46.00 mm (Equiv. 1.811 in.)	Overall Height (B) 62.00 mm (Equiv. 2.441 in.)	Rail Height (B1) M4 mm	Rail Hole Size (H) 38.00 mm	Rail Hole Size (H1) 38.00 mm
Material: Aluminium Rail Hole Depth (H2): 21.20 mm L: 4.00 mm
Part Number: PBC-1216RS Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $178.50 AUD Regular price ~~$214.20 AUD~~ Sale price $178.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Rail Width (A) 20.00 mm (Equiv. 0.787 in.)	Running Clearance 46.00 mm (Equiv. 1.811 in.)	Overall Height (B) 62.00 mm (Equiv. 2.441 in.)	Rail Height (B1) M4 mm
Material: Aluminium Rail Hole Size (H): 38.00 mm Rail Hole Size (H1): 38.00 mm Rail Hole Depth (H2): 21.20 mm L: 4.00 mm
Part Number: PBC-1216RS Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $178.50 AUD Regular price ~~$214.20 AUD~~ Sale price $178.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1216RS --- Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Sale PBC-1216RS --- Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Regular price $178.50 AUD Regular price ~~$214.20 AUD~~ Sale price $178.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Linear - Mini Rail Self-Lubricating

Category Details

Filter

Filter

Subscribe to our emails
