Collection: Linear - Mini Rail Carriages

Linear -> Mini Rail Carriages

There are 5 products in the sub-categories of Linear - Mini Rail Carriages. Browse the Linear - Mini Rail Carriages products table.

Category Details

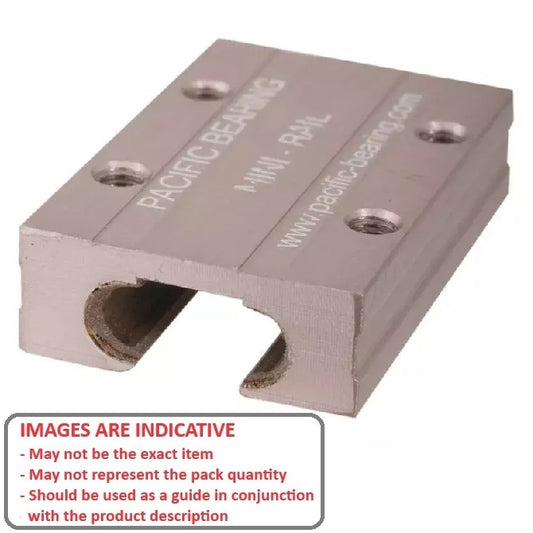

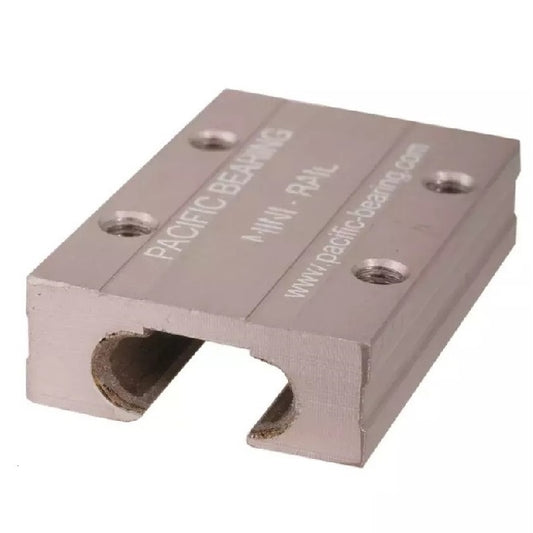

A selection of Mini Rail Carriages Linear. Carriages for the Mini-Rail system. Match by rail width. Rail sold separately.

Low profile self-lubricating linear guide system with one piece carriage design. Excellent alternative to linear ball bearing systems. Precision series made from RC70 ceramic coated rail with self lubricating Frelon Gold.
Dampens vibration and tolerates shock loads. Will not rust. No metal to metal contact. No balls or rolling elements to trap contamination, skid or damage rail.
Operation is consistent, smooth and quiet. Maintenance free. Used in packaging machines, medical equipment, wash-down and harsh environments.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Linear - Mini Rail Carriages category on the Small Parts & Bearings online store.

Suitable Rail Width	Carraige Width (C)	Carriage Length (D)	Carriage Bolt Size (E)	Carriage Bolt Distances Length	Carriage Bolt Distances Width
Suitable Rail Width 7.00 mm (Equiv. 0.276 in.)	Carraige Width (C) 17.00 mm (Equiv. 0.669 in.)	Carriage Length (D) 24.00 mm (Equiv. 0.945 in.)	Carriage Bolt Size (E) M2	Carriage Bolt Distances Length 8.00 mm	Carriage Bolt Distances Width 12.00 mm
Material: Aluminium K: 6.20 mm N: 2.30 mm
Part Number: PBC-1212RS Mini Rail Carriages Linear - 7x17x24 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $137.14 AUD Regular price ~~$164.56 AUD~~ Sale price $137.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width	Carraige Width (C)	Carriage Length (D)	Carriage Bolt Size (E)	Indicative Image
Suitable Rail Width 7.00 mm (Equiv. 0.276 in.)	Carraige Width (C) 17.00 mm (Equiv. 0.669 in.)	Carriage Length (D) 24.00 mm (Equiv. 0.945 in.)	Carriage Bolt Size (E) M2
Material: Aluminium Carriage Bolt Distances Length: 8.00 mm Carriage Bolt Distances Width : 12.00 mm K: 6.20 mm N: 2.30 mm
Part Number: PBC-1212RS Mini Rail Carriages Linear - 7x17x24 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $137.14 AUD Regular price ~~$164.56 AUD~~ Sale price $137.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1212RS --- Mini Rail Carriages Linear - 7x17x24 mm - Aluminium Sale PBC-1212RS --- Mini Rail Carriages Linear - 7x17x24 mm - Aluminium Regular price $137.14 AUD Regular price ~~$164.56 AUD~~ Sale price $137.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Suitable Rail Width 9.00 mm (Equiv. 0.354 in.)	Carraige Width (C) 20.00 mm (Equiv. 0.787 in.)	Carriage Length (D) 30.00 mm (Equiv. 1.181 in.)	Carriage Bolt Size (E) M3	Carriage Bolt Distances Length 13.00 mm	Carriage Bolt Distances Width 15.00 mm
Material: Aluminium K: 8.00 mm N: 2.50 mm
Part Number: PBC-1213RS Mini Rail Carriages Linear - 9x20x30 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $114.32 AUD Regular price ~~$137.18 AUD~~ Sale price $114.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width 9.00 mm (Equiv. 0.354 in.)	Carraige Width (C) 20.00 mm (Equiv. 0.787 in.)	Carriage Length (D) 30.00 mm (Equiv. 1.181 in.)	Carriage Bolt Size (E) M3
Material: Aluminium Carriage Bolt Distances Length: 13.00 mm Carriage Bolt Distances Width : 15.00 mm K: 8.00 mm N: 2.50 mm
Part Number: PBC-1213RS Mini Rail Carriages Linear - 9x20x30 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $114.32 AUD Regular price ~~$137.18 AUD~~ Sale price $114.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1213RS --- Mini Rail Carriages Linear - 9x20x30 mm - Aluminium Sale PBC-1213RS --- Mini Rail Carriages Linear - 9x20x30 mm - Aluminium Regular price $114.32 AUD Regular price ~~$137.18 AUD~~ Sale price $114.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Suitable Rail Width 12.00 mm (Equiv. 0.472 in.)	Carraige Width (C) 27.00 mm (Equiv. 1.063 in.)	Carriage Length (D) 34.00 mm (Equiv. 1.339 in.)	Carriage Bolt Size (E) M3	Carriage Bolt Distances Length 15.00 mm	Carriage Bolt Distances Width 20.00 mm
Material: Aluminium K: 10.70 mm N: 3.50 mm
Part Number: PBC-1214RS Mini Rail Carriages Linear - 12x27x34 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $152.95 AUD Regular price Sale price $152.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width 12.00 mm (Equiv. 0.472 in.)	Carraige Width (C) 27.00 mm (Equiv. 1.063 in.)	Carriage Length (D) 34.00 mm (Equiv. 1.339 in.)	Carriage Bolt Size (E) M3
Material: Aluminium Carriage Bolt Distances Length: 15.00 mm Carriage Bolt Distances Width : 20.00 mm K: 10.70 mm N: 3.50 mm
Part Number: PBC-1214RS Mini Rail Carriages Linear - 12x27x34 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $152.95 AUD Regular price Sale price $152.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1214RS --- Mini Rail Carriages Linear - 12x27x34 mm - Aluminium PBC-1214RS --- Mini Rail Carriages Linear - 12x27x34 mm - Aluminium Regular price $152.95 AUD Regular price Sale price $152.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Suitable Rail Width 15.00 mm (Equiv. 0.591 in.)	Carraige Width (C) 32.00 mm (Equiv. 1.26 in.)	Carriage Length (D) 42.00 mm (Equiv. 1.654 in.)	Carriage Bolt Size (E) M3	Carriage Bolt Distances Length 20.00 mm	Carriage Bolt Distances Width 25.00 mm
Material: Aluminium K: 14.10 mm N: 3.50 mm
Part Number: PBC-1215RS Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $146.14 AUD Regular price ~~$175.36 AUD~~ Sale price $146.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width 15.00 mm (Equiv. 0.591 in.)	Carraige Width (C) 32.00 mm (Equiv. 1.26 in.)	Carriage Length (D) 42.00 mm (Equiv. 1.654 in.)	Carriage Bolt Size (E) M3
Material: Aluminium Carriage Bolt Distances Length: 20.00 mm Carriage Bolt Distances Width : 25.00 mm K: 14.10 mm N: 3.50 mm
Part Number: PBC-1215RS Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $146.14 AUD Regular price ~~$175.36 AUD~~ Sale price $146.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1215RS --- Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Sale PBC-1215RS --- Mini Rail Carriages Linear - 15x32x42 mm - Aluminium Regular price $146.14 AUD Regular price ~~$175.36 AUD~~ Sale price $146.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Suitable Rail Width 20.00 mm (Equiv. 0.787 in.)	Carraige Width (C) 46.00 mm (Equiv. 1.811 in.)	Carriage Length (D) 62.00 mm (Equiv. 2.441 in.)	Carriage Bolt Size (E) M4	Carriage Bolt Distances Length 38.00 mm	Carriage Bolt Distances Width 38.00 mm
Material: Aluminium K: 21.20 mm N: 4.00 mm
Part Number: PBC-1216RS Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $178.50 AUD Regular price ~~$214.20 AUD~~ Sale price $178.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Suitable Rail Width 20.00 mm (Equiv. 0.787 in.)	Carraige Width (C) 46.00 mm (Equiv. 1.811 in.)	Carriage Length (D) 62.00 mm (Equiv. 2.441 in.)	Carriage Bolt Size (E) M4
Material: Aluminium Carriage Bolt Distances Length: 38.00 mm Carriage Bolt Distances Width : 38.00 mm K: 21.20 mm N: 4.00 mm
Part Number: PBC-1216RS Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $178.50 AUD Regular price ~~$214.20 AUD~~ Sale price $178.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PBC-1216RS --- Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Sale PBC-1216RS --- Mini Rail Carriages Linear - 20x46x62 mm - Aluminium Regular price $178.50 AUD Regular price ~~$214.20 AUD~~ Sale price $178.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
