Linear - Guide System Two Piece

Linear -> Guide System Two Piece

There are 5 products in the sub-categories of Linear - Guide System Two Piece. Browse the Linear - Guide System Two Piece products table.

Category Details

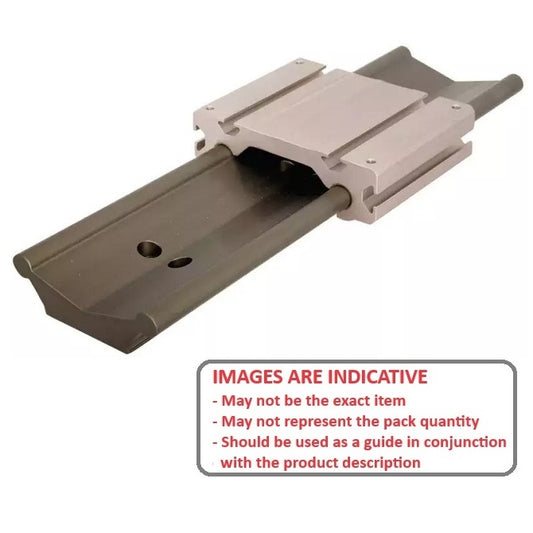

A selection of Guide System Two Piece Linear. Using Frelon Gold plain bearing technology. Rail and carriage are made from 6063-T6 aluminium and come as a set.

  • Rails are ceramic coated to resist corrosion and repel weld spatter and contaminants.
  • Smooth running. Dampens vibration. Guide has slots for T nuts or bolts. Two component system allows for easier installation than traditional rail systems.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Guide System Two Piece category on the Small Parts & Bearings online store.
Rail Top Width (A/B) C Rail Bolt Centres (D) Rail Height (F) Carriage Width (G) Carriage Length (H) Indicative
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
74.930 / 50.800
mm
C
19.050
mm
Rail Bolt Centres (D)
101.600
mm
Rail Height (F)
41.275
mm
Carriage Width (G)
116.840
mm
Carriage Length (H)
88.900
mm
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 609.60 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-755RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$2,669.59 AUD
$3,203.51 AUD $2,669.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Rail Top Width (A/B) C Rail Bolt Centres (D) Rail Height (F) Indicative
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
74.930 / 50.800
mm
C
19.050
mm
Rail Bolt Centres (D)
101.600
mm
Rail Height (F)
41.275
mm
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 116.840 mm    Carriage Length (H): 88.900 mm    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 609.60 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-755RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$2,669.59 AUD
$3,203.51 AUD $2,669.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
74.930 / 50.800
mm
C
19.050
mm
Rail Bolt Centres (D)
101.600
mm
Rail Height (F)
41.275
mm
Carriage Width (G)
116.840
mm
Carriage Length (H)
88.900
mm
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 304.80 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-750RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$1,824.41 AUD
$1,824.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
74.930 / 50.800
mm
C
19.050
mm
Rail Bolt Centres (D)
101.600
mm
Rail Height (F)
41.275
mm
Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 116.840 mm    Carriage Length (H): 88.900 mm    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 304.80 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-750RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$1,824.41 AUD
$1,824.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
100.076 / 66.040
mm
C
25.400
mm
Rail Bolt Centres (D)
152.400
mm
Rail Height (F)
53.975
mm
Carriage Width (G)
154.940
mm
Carriage Length (H)
114.300
mm
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 609.60 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-765RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$3,381.77 AUD
$4,058.13 AUD $3,381.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
100.076 / 66.040
mm
C
25.400
mm
Rail Bolt Centres (D)
152.400
mm
Rail Height (F)
53.975
mm
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 154.940 mm    Carriage Length (H): 114.300 mm    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 609.60 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-765RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$3,381.77 AUD
$4,058.13 AUD $3,381.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
100.076 / 66.040
mm
C
25.400
mm
Rail Bolt Centres (D)
152.400
mm
Rail Height (F)
53.975
mm
Carriage Width (G)
154.940
mm
Carriage Length (H)
114.300
mm
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 304.80 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-760RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$2,406.50 AUD
$2,887.80 AUD $2,406.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Rail Top Width (A/B)
100.076 / 66.040
mm
C
25.400
mm
Rail Bolt Centres (D)
152.400
mm
Rail Height (F)
53.975
mm
Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 154.940 mm    Carriage Length (H): 114.300 mm    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 304.80 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-760RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$2,406.50 AUD
$2,887.80 AUD $2,406.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Rail Top Width (A/B)
124.968 / 83.820
mm
C
31.750
mm
Rail Bolt Centres (D)
152.400
mm
Rail Height (F)
66.675
mm
Carriage Width (G)
193.040
mm
Carriage Length (H)
152.400
mm
Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Carriage Bolt Centre Length (J: 133.350 mm    Carriage Bolt Centre Width (K): 171.450 mm    Overall Length (O): 304.80 mm    P: 101.60 mm    Bolt Size (L): 5/16-18 UNC (7.938mm)    M: 109.982 mm
Part Number: PBC-770RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$2,659.68 AUD
$3,191.62 AUD $2,659.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Rail Top Width (A/B)
124.968 / 83.820
mm
C
31.750
mm
Rail Bolt Centres (D)
152.400
mm
Rail Height (F)
66.675
mm
Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Carriage Width (G): 193.040 mm    Carriage Length (H): 152.400 mm    Carriage Bolt Centre Length (J: 133.350 mm    Carriage Bolt Centre Width (K): 171.450 mm    Overall Length (O): 304.80 mm    P: 101.60 mm    Bolt Size (L): 5/16-18 UNC (7.938mm)    M: 109.982 mm
Part Number: PBC-770RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 08, 2026
$2,659.68 AUD
$3,191.62 AUD $2,659.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
