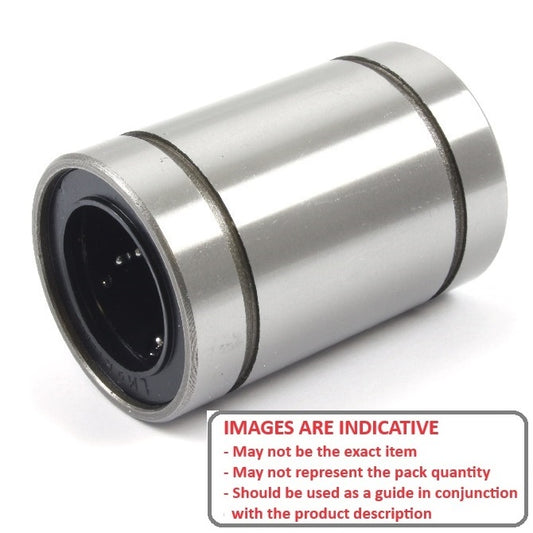

Linear - Ball Bearings - Standard Closed - Stainless Steel

4 Products in this selection
  • Standard closed type to run on standard 60HRC shafts with h6 tolerances. For running on shafts fixed at the ends.
  • Use with hardened precision ground shafting.
  • Shaft tolerance: h6 (Normal Fit), j6 (Close Fit).
  • Housing Tolerance: H7 (Clearance Fit), J7 (Interference Fit).
  • Max Temp: 100 oC Intermittent, 80 Deg C continuous.
Miniature Bearings Australia (Minibearings)

Additional resources:
A more concise listing may be found on the Smallparts store at Linear - Ball Bearings - Standard Closed - Stainless Steel. Smallparts promote the most popular MBA products.
Nom. Shaft Size (T) Nom. Outer Diameter (D) Length ( L / l ) Dynamic Load Static Load Wiper Configuration Indicative
Nom. Shaft Size (T)
6.350
mm

(0.25 in.)
Nom. Outer Diameter (D)
12.700
mm

(0.5 in.)
Length ( L / l )
19.050 / 13.081
mm

(0.75 in.)
Dynamic Load
84.5
N
Ball Bearings Linear - 6.35x12.7 - 19.050 / 13.081 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 0.991 mm    Ball Cicuits (Nr.): 3
Part Number: LCB-0064-013-019-S440 Ball Bearings Linear - 6.35x12.7 - 19.050 / 13.081 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$203.41 AUD
$244.09 AUD $203.41 AUD
Each
Nom. Shaft Size (T) Nom. Outer Diameter (D) Length ( L / l ) Dynamic Load Indicative
Nom. Shaft Size (T)
6.350
mm

(0.25 in.)
Nom. Outer Diameter (D)
12.700
mm

(0.5 in.)
Length ( L / l )
19.050 / 13.081
mm

(0.75 in.)
Dynamic Load
84.5
N
Ball Bearings Linear - 6.35x12.7 - 19.050 / 13.081 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 0.991 mm    Ball Cicuits (Nr.): 3
Part Number: LCB-0064-013-019-S440 Ball Bearings Linear - 6.35x12.7 - 19.050 / 13.081 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$203.41 AUD
$244.09 AUD $203.41 AUD
Each
View the product page first if you are unsure.
Nom. Shaft Size (T)
9.525
mm

(0.375 in.)
Nom. Outer Diameter (D)
15.875
mm

(0.625 in.)
Length ( L / l )
22.225 / 16.256
mm

(0.875 in.)
Dynamic Load
164.6
N
Ball Bearings Linear - 9.525x15.875 - 22.225 / 16.256 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 0.991 mm    Ball Cicuits (Nr.): 4
Part Number: LCB-0095-016-022-S440 Ball Bearings Linear - 9.525x15.875 - 22.225 / 16.256 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$204.77 AUD
$245.73 AUD $204.77 AUD
Each
Nom. Shaft Size (T)
9.525
mm

(0.375 in.)
Nom. Outer Diameter (D)
15.875
mm

(0.625 in.)
Length ( L / l )
22.225 / 16.256
mm

(0.875 in.)
Dynamic Load
164.6
N
Ball Bearings Linear - 9.525x15.875 - 22.225 / 16.256 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 0.991 mm    Ball Cicuits (Nr.): 4
Part Number: LCB-0095-016-022-S440 Ball Bearings Linear - 9.525x15.875 - 22.225 / 16.256 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$204.77 AUD
$245.73 AUD $204.77 AUD
Each
View the product page first if you are unsure.
Nom. Shaft Size (T)
12.700
mm

(0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(0.875 in.)
Length ( L / l )
31.750 / 24.562
mm

(1.25 in.)
Dynamic Load
378.1
N
Ball Bearings Linear - 12.7x22.225 - 31.750 / 24.562 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 1.168 mm    Ball Cicuits (Nr.): 4
Part Number: LCB-0127-022-032-S440 Ball Bearings Linear - 12.7x22.225 - 31.750 / 24.562 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$217.77 AUD
$261.33 AUD $217.77 AUD
Each
Nom. Shaft Size (T)
12.700
mm

(0.5 in.)
Nom. Outer Diameter (D)
22.225
mm

(0.875 in.)
Length ( L / l )
31.750 / 24.562
mm

(1.25 in.)
Dynamic Load
378.1
N
Ball Bearings Linear - 12.7x22.225 - 31.750 / 24.562 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 1.168 mm    Ball Cicuits (Nr.): 4
Part Number: LCB-0127-022-032-S440 Ball Bearings Linear - 12.7x22.225 - 31.750 / 24.562 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$217.77 AUD
$261.33 AUD $217.77 AUD
Each
View the product page first if you are unsure.
Nom. Shaft Size (T)
19.050
mm

(0.75 in.)
Nom. Outer Diameter (D)
31.496
mm

(1.24 in.)
Length ( L / l )
41.275 / 29.312
mm

(1.625 in.)
Dynamic Load
889.6
N
Ball Bearings Linear - 19.05x31.496 - 41.275 / 29.312 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 1.422 mm    Ball Cicuits (Nr.): 5
Part Number: LCB-0191-031-041-S440 Ball Bearings Linear - 19.05x31.496 - 41.275 / 29.312 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$305.68 AUD
$366.82 AUD $305.68 AUD
Each
Nom. Shaft Size (T)
19.050
mm

(0.75 in.)
Nom. Outer Diameter (D)
31.496
mm

(1.24 in.)
Length ( L / l )
41.275 / 29.312
mm

(1.625 in.)
Dynamic Load
889.6
N
Ball Bearings Linear - 19.05x31.496 - 41.275 / 29.312 - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Groove Width (W1): 1.422 mm    Ball Cicuits (Nr.): 5
Part Number: LCB-0191-031-041-S440 Ball Bearings Linear - 19.05x31.496 - 41.275 / 29.312 - Stainless Steel AISI 440C
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 17, 2025
$305.68 AUD
$366.82 AUD $305.68 AUD
Each
View the product page first if you are unsure.
