Linear - Ball Bearings - Miniature Super High Precision

Linear -> Ball Bearings -> Miniature Super High Precision

There is only 1 product in the sub-categories of Linear - Ball Bearings - Miniature Super High Precision. Browse the Linear - Ball Bearings - Miniature Super High Precision products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

A selection of Miniature Super High Precision Ball Bearings Linear. High Precision Corrosion Resistant Miniature Linear Bearings.

  • High Precision Swiss Made, Accurate Guiding, Smooth Running.
  • High Load Capacity.
  • Tolerances --- d (+0.008 / -0.000 mm) D (+0.000 / -0.010 mm).
  • Recommended Outer ring fitted with interferance of 1-3 Microns or retained by Circlips.
  • Shafts (not included) should be 60-63 Rockwell C hardness with tolerances +0.000 / -0.006 mm.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Linear - Ball Bearings - Miniature Super High Precision category on the Small Parts & Bearings online store.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Length ( L / l ) Dynamic Load Static Load Wiper Configuration Indicative
Nominal Shaft Size (T)
3.000
mm

(Equiv. 0.118 in.)
Nom. Outer Diameter (D)
6.000
mm

(Equiv. 0.236 in.)
Length ( L / l )
7.000
mm

(Equiv. 0.276 in.)
Static Load
23
N

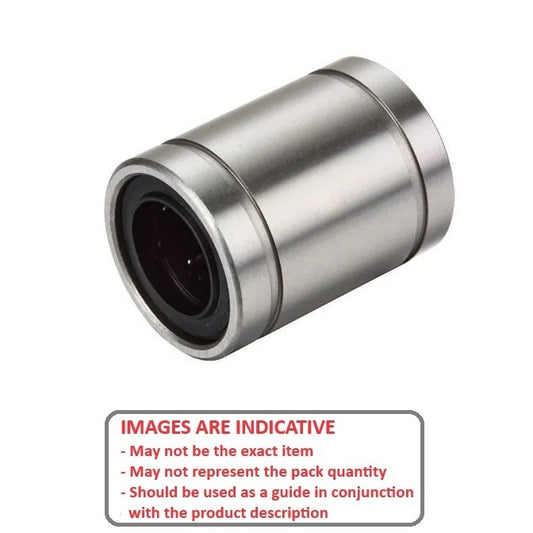

Ball Bearings Linear - 3x6x7 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Ball Diameter: 0.794 mm
Part Number: LCB-0030-006-007-SP-S440
Ball Bearings Linear - 3x6x7 mm Miniature Super High Precision - Stainless Steel AISI 440C Bearing
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$22.00 AUD
$41.80 AUD $22.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Shaft Size (T) Nom. Outer Diameter (D) Length ( L / l ) Dynamic Load Indicative
Nominal Shaft Size (T)
3.000
mm

(Equiv. 0.118 in.)
Nom. Outer Diameter (D)
6.000
mm

(Equiv. 0.236 in.)
Length ( L / l )
7.000
mm

(Equiv. 0.276 in.)
Ball Bearings Linear - 3x6x7 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Static Load: 23 N    Ball Diameter: 0.794 mm
Part Number: LCB-0030-006-007-SP-S440
Ball Bearings Linear - 3x6x7 mm Miniature Super High Precision - Stainless Steel AISI 440C Bearing
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$22.00 AUD
$41.80 AUD $22.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
