Leadscrew - Nut Flanges - For Acme Supernuts

Leadscrew -> Nut Flanges -> For Acme Supernuts

There is only 1 product in the sub-categories of Leadscrew - Nut Flanges - For Acme Supernuts. Browse the Leadscrew - Nut Flanges - For Acme Supernuts products table.

Category Details

A selection of For Acme Supernuts Nut Flanges Leadscrew. Flanges for Acme leadscrew thread supernuts metric and imperial

  • An expanded range may be available on special order. Please enquire.
  • MATERIAL - Aluminum 6062-T6
  • These flanges are screwed onto the outer thread of the red leadscrew nuts
  • This provides a mounting surface to enable location of the leadscrew nut on the surface to be moved

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Leadscrew - Nut Flanges - For Acme Supernuts category on the Small Parts & Bearings online store.
Suitable Nut Mounting Thread Flange OD (A) Flange Thickness (B) Mounting Hole Diameter (D) Mounting Hole Diameter (C) Indicative
Suitable Nut Mounting Thread
9/16-18 UNF (14.29mm)

Flange OD (A)
40.64
mm

(Equiv. 1.6 in.)
Flange Thickness (B)
6.350
mm

(Equiv. 0.25 in.)
Mounting Hole Diameter (D)
4.50
mm
Mounting Hole Diameter (C)
31.5
mm

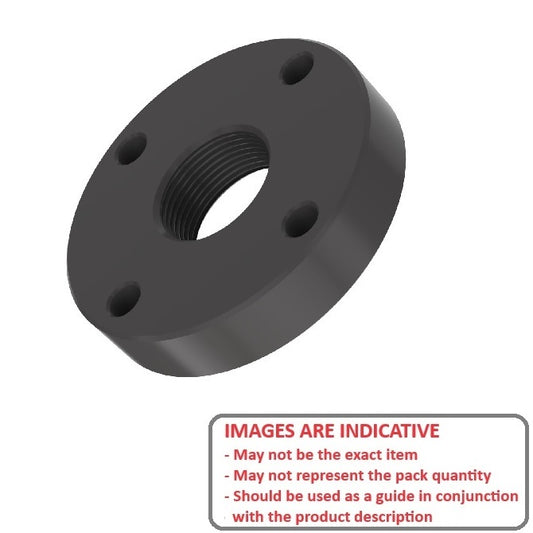

Nut Flanges Leadscrew - 9/16-18 UNF -14.29mm- 40.64x6.35 mm

Deleted Item. Available while stocks last.
Part Number: HB250F-025
Nut Flanges Leadscrew - 9/16-18 UNF - 14.29mm - 40.64x6.35 mm For Acme Supernuts
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$46.00 AUD
$87.40 AUD $46.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Nut Mounting Thread Flange OD (A) Flange Thickness (B) Mounting Hole Diameter (D) Indicative
Suitable Nut Mounting Thread
9/16-18 UNF (14.29mm)

Flange OD (A)
40.64
mm

(Equiv. 1.6 in.)
Flange Thickness (B)
6.350
mm

(Equiv. 0.25 in.)
Mounting Hole Diameter (D)
4.50
mm
Nut Flanges Leadscrew - 9/16-18 UNF -14.29mm- 40.64x6.35 mm
Mounting Hole Diameter (C): 31.5 mm
Deleted Item. Available while stocks last.
Part Number: HB250F-025
Nut Flanges Leadscrew - 9/16-18 UNF - 14.29mm - 40.64x6.35 mm For Acme Supernuts
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$46.00 AUD
$87.40 AUD $46.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
