Knobs - Lobe - Eight Lobe - Female

Knobs -> Lobe -> Eight Lobe -> Female

There are 2 products in the sub-categories of Knobs - Lobe - Eight Lobe - Female. Browse the Knobs - Lobe - Eight Lobe - Female products table.

Category Details

A selection of Female Eight Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Knobs - Lobe - Eight Lobe - Female category on the Small Parts & Bearings online store.
Thread Size Head Diameter (A) Thread Length Colour Hub Diameter © Hub Length (D) Indicative
Thread Size
M10 (10x1.5mm)

Head Diameter (A)
40
mm

(Equiv. 1.575 in.)
Thread Length
17
mm

(Equiv. 0.669 in.)
Colour
Black
Hub Diameter ©
25.00
mm
Hub Length (D)
21.000
mm

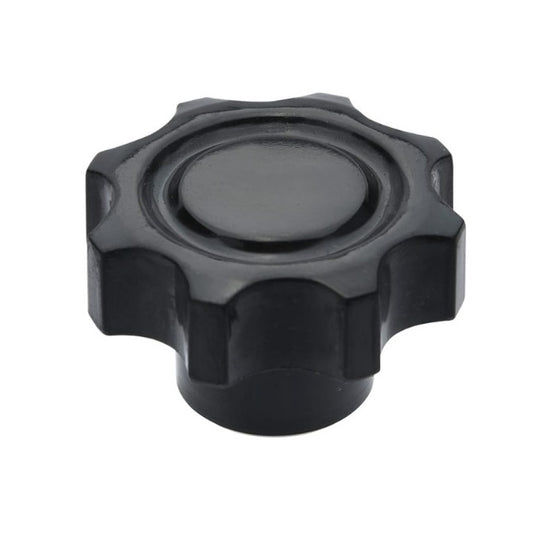

Lobe Knobs - M10 -10x1.5mm- 40x17 mm - Phenolic and Brass
Material: Phenolic and Brass    Knob Height (B): 14.00 mm
Part Number: KF100M-040-8L
Lobe Knobs - M10 - 10x1.5mm - 40x17 mm Eight Lobe - Phenolic and Brass Knob
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$5.41 AUD
$5.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread Size Head Diameter (A) Thread Length Colour Indicative
Thread Size
M10 (10x1.5mm)

Head Diameter (A)
40
mm

(Equiv. 1.575 in.)
Thread Length
17
mm

(Equiv. 0.669 in.)
Colour
Black
Lobe Knobs - M10 -10x1.5mm- 40x17 mm - Phenolic and Brass
Material: Phenolic and Brass    Hub Diameter ©: 25.00 mm    Hub Length (D): 21.000 mm    Knob Height (B): 14.00 mm
Part Number: KF100M-040-8L
Lobe Knobs - M10 - 10x1.5mm - 40x17 mm Eight Lobe - Phenolic and Brass Knob
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$5.41 AUD
$5.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread Size
M12 (12x1.75mm)

Head Diameter (A)
50
mm

(Equiv. 1.969 in.)
Thread Length
21
mm

(Equiv. 0.827 in.)
Colour
Black
Hub Diameter ©
25.00
mm
Hub Length (D)
25.000
mm
Lobe Knobs - M12 -12x1.75mm- 50x21 mm - Phenolic and Brass
Material: Phenolic and Brass    Knob Height (B): 14.00 mm
Part Number: KF120M-050-8L
Lobe Knobs - M12 - 12x1.75mm - 50x21 mm Eight Lobe - Phenolic and Brass Knob
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$5.86 AUD
$7.04 AUD $5.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Thread Size
M12 (12x1.75mm)

Head Diameter (A)
50
mm

(Equiv. 1.969 in.)
Thread Length
21
mm

(Equiv. 0.827 in.)
Colour
Black
Lobe Knobs - M12 -12x1.75mm- 50x21 mm - Phenolic and Brass
Material: Phenolic and Brass    Hub Diameter ©: 25.00 mm    Hub Length (D): 25.000 mm    Knob Height (B): 14.00 mm
Part Number: KF120M-050-8L
Lobe Knobs - M12 - 12x1.75mm - 50x21 mm Eight Lobe - Phenolic and Brass Knob
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$5.86 AUD
$7.04 AUD $5.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
