| Thickness (S) | Basis Diameter (D) | Approx. Height (H) | Approx. Length (L) |
Indicative Image |
|---|---|---|---|---|
|
Thickness (S)
6.35
mm +/- 0.025
(Equiv. 0.25 in.) |
Basis Diameter (D)
38.10
mm +/- 0.250 (Equiv. 1.5 in.) |
Approx. Height (H)
16.0
mm (Equiv. 0.63 in.) |
Approx. Length (L)
37.34
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-064-381-Z

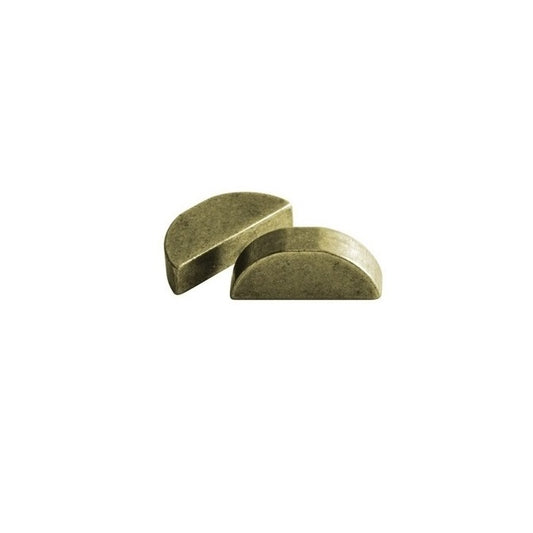

Woodruff Keys - 6.35x38.1x16 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
| Thickness (S) | Basis Diameter (D) | Approx. Height (H) | Approx. Length (L) |
Indicative Image |
|
Thickness (S)
6.35
mm +/- 0.025 (Equiv. 0.25 in.) |
Basis Diameter (D)
38.10
mm +/- 0.250 (Equiv. 1.5 in.) |
Approx. Height (H)
16.0
mm (Equiv. 0.63 in.) |
Approx. Length (L)
37.34
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-064-381-Z
Woodruff Keys - 6.35x38.1x16 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025
(Equiv. 0.313 in.) |
Basis Diameter (D)
25.40
mm +/- 0.250 (Equiv. 1 in.) |
Approx. Height (H)
11.1
mm (Equiv. 0.437 in.) |
Approx. Length (L)
24.89
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-254-Z
Woodruff Keys - 7.94x25.4x11.1 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025 (Equiv. 0.313 in.) |
Basis Diameter (D)
25.40
mm +/- 0.250 (Equiv. 1 in.) |
Approx. Height (H)
11.1
mm (Equiv. 0.437 in.) |
Approx. Length (L)
24.89
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-254-Z
Woodruff Keys - 7.94x25.4x11.1 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025
(Equiv. 0.313 in.) |
Basis Diameter (D)
28.58
mm +/- 0.250 (Equiv. 1.125 in.) |
Approx. Height (H)
12.0
mm (Equiv. 0.472 in.) |
Approx. Length (L)
28.00
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-286-Z
Woodruff Keys - 7.94x28.58x12 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025 (Equiv. 0.313 in.) |
Basis Diameter (D)
28.58
mm +/- 0.250 (Equiv. 1.125 in.) |
Approx. Height (H)
12.0
mm (Equiv. 0.472 in.) |
Approx. Length (L)
28.00
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-286-Z
Woodruff Keys - 7.94x28.58x12 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025
(Equiv. 0.313 in.) |
Basis Diameter (D)
31.75
mm +/- 0.250 (Equiv. 1.25 in.) |
Approx. Height (H)
13.0
mm (Equiv. 0.512 in.) |
Approx. Length (L)
31.12
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-318-Z
Woodruff Keys - 7.94x31.75x13 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025 (Equiv. 0.313 in.) |
Basis Diameter (D)
31.75
mm +/- 0.250 (Equiv. 1.25 in.) |
Approx. Height (H)
13.0
mm (Equiv. 0.512 in.) |
Approx. Length (L)
31.12
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-318-Z
Woodruff Keys - 7.94x31.75x13 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025
(Equiv. 0.313 in.) |
Basis Diameter (D)
34.93
mm +/- 0.250 (Equiv. 1.375 in.) |
Approx. Height (H)
14.7
mm (Equiv. 0.579 in.) |
Approx. Length (L)
34.23
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-349-Z
Woodruff Keys - 7.94x34.93x14.7 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025 (Equiv. 0.313 in.) |
Basis Diameter (D)
34.93
mm +/- 0.250 (Equiv. 1.375 in.) |
Approx. Height (H)
14.7
mm (Equiv. 0.579 in.) |
Approx. Length (L)
34.23
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-349-Z
Woodruff Keys - 7.94x34.93x14.7 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025
(Equiv. 0.313 in.) |
Basis Diameter (D)
38.10
mm +/- 0.250 (Equiv. 1.5 in.) |
Approx. Height (H)
16.0
mm (Equiv. 0.63 in.) |
Approx. Length (L)
37.34
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-381-Z
Woodruff Keys - 7.94x38.1x16 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
7.94
mm +/- 0.025 (Equiv. 0.313 in.) |
Basis Diameter (D)
38.10
mm +/- 0.250 (Equiv. 1.5 in.) |
Approx. Height (H)
16.0
mm (Equiv. 0.63 in.) |
Approx. Length (L)
37.34
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-079-381-Z
Woodruff Keys - 7.94x38.1x16 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
9.53
mm +/- 0.025
(Equiv. 0.375 in.) |
Basis Diameter (D)
31.75
mm +/- 0.250 (Equiv. 1.25 in.) |
Approx. Height (H)
13.0
mm (Equiv. 0.512 in.) |
Approx. Length (L)
31.12
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-095-318-Z
Woodruff Keys - 9.53x31.75x13 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
|
Thickness (S)
9.53
mm +/- 0.025 (Equiv. 0.375 in.) |
Basis Diameter (D)
31.75
mm +/- 0.250 (Equiv. 1.25 in.) |
Approx. Height (H)
13.0
mm (Equiv. 0.512 in.) |
Approx. Length (L)
31.12
mm |
|
| Material: Carbon Steel 1035 Zinc Plated Finish: Zinc Plated | ||||
|
Part Number: KW-095-318-Z
Woodruff Keys - 9.53x31.75x13 mm - Carbon Steel 1035 Zinc Plated Key Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||
