Inserts - Tapered Fit Finserts For Wood and Plastics

Inserts -> Tapered Fit Finserts For Wood and Plastics

There are 10 products in the sub-categories of Inserts - Tapered Fit Finserts For Wood and Plastics. Browse the Inserts - Tapered Fit Finserts For Wood and Plastics products table.

Category Details

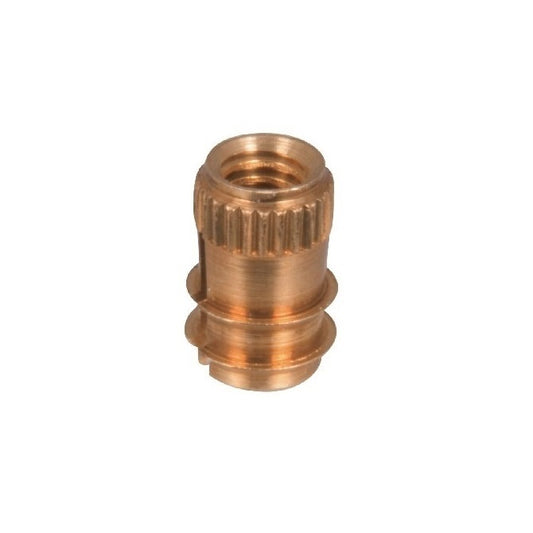

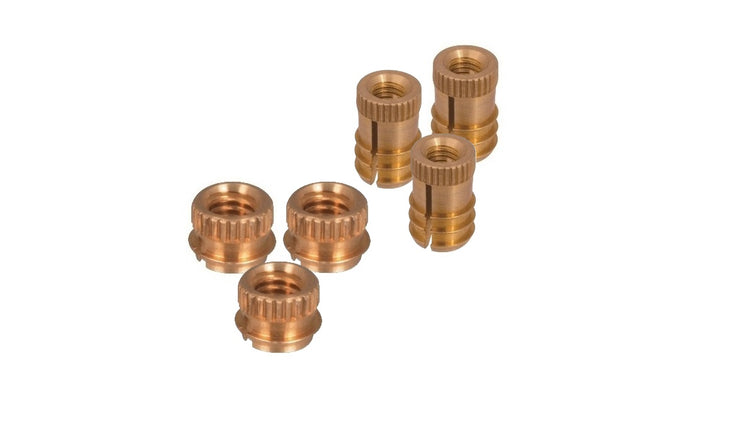

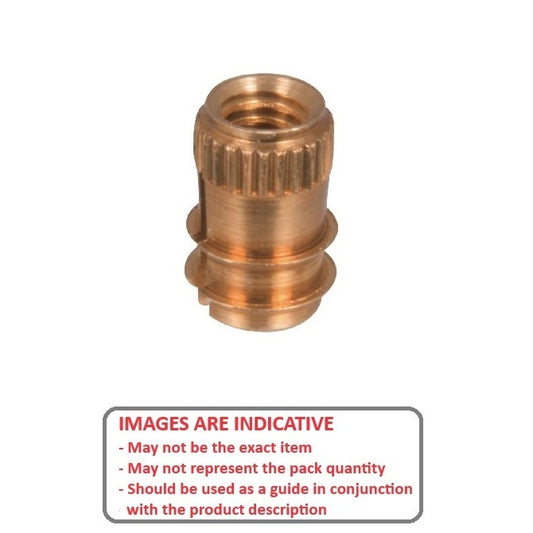

A selection of Tapered Fit Finserts For Wood and Plastics Inserts. Finserts provide strong metal threads in wood, composition board and thermoplastics such as nylon, polystyrene, cellulose acetate and cycolac. By distributing stress over a greater surface area, firm permanent fastening is ensured.

  • The fins give higher holding strength in softer materials
  • Available with one, two or three fins for varying material thickness
  • Finserts prevent splintering, splitting and thread pullout.
Inserts - Tapered Fit Finserts For Wood and Plastics

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Inserts - Tapered Fit Finserts For Wood and Plastics category on the Small Parts & Bearings online store.
Internal Thread Hole Size Length A B C Indicative
Internal Thread
6-32 UNC (3.5mm)

Hole Size
5.21
mm

(Equiv. 0.205 in.)
Length
9.53
mm

(Equiv. 0.375 in.)
A
5.334
mm
B
6.020
mm
C
4.801
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 6-32 UNC -3.5mm- 5.21x9.53 mm

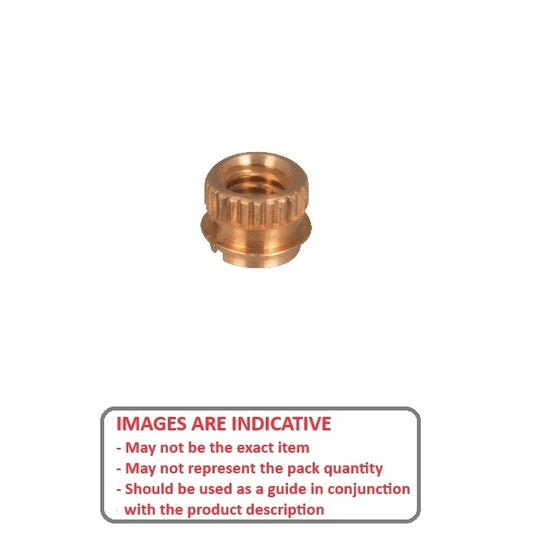

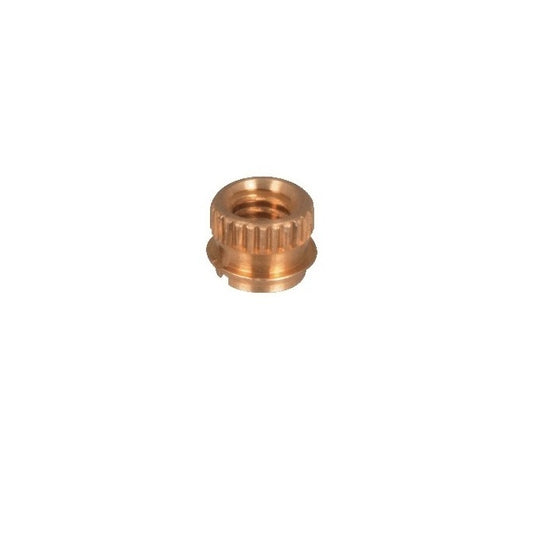

Number of Fins: 1
Part Number: IN-PF-035C-048-W
Tapered Fit Finserts For Wood and Plastics Inserts - 6-32 UNC - 3.5mm - 5.21x9.53 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$2.86 AUD
$2.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread Hole Size Length A Indicative
Internal Thread
6-32 UNC (3.5mm)

Hole Size
5.21
mm

(Equiv. 0.205 in.)
Length
9.53
mm

(Equiv. 0.375 in.)
A
5.334
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 6-32 UNC -3.5mm- 5.21x9.53 mm
B: 6.020 mm    C: 4.801 mm    Number of Fins: 1
Part Number: IN-PF-035C-048-W
Tapered Fit Finserts For Wood and Plastics Inserts - 6-32 UNC - 3.5mm - 5.21x9.53 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$2.86 AUD
$2.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Hole Size
5.94
mm

(Equiv. 0.234 in.)
Length
4.76
mm

(Equiv. 0.187 in.)
A
5.994
mm
B
6.680
mm
C
5.461
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC -4.17mm- 5.94x4.76 mm
Number of Fins: 1
Part Number: IN-PF-042C-048-W (25 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC - 4.17mm - 5.94x4.76 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$46.59 AUD
$46.59 AUD
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Hole Size
5.94
mm

(Equiv. 0.234 in.)
Length
4.76
mm

(Equiv. 0.187 in.)
A
5.994
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC -4.17mm- 5.94x4.76 mm
B: 6.680 mm    C: 5.461 mm    Number of Fins: 1
Part Number: IN-PF-042C-048-W (25 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC - 4.17mm - 5.94x4.76 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$46.59 AUD
$46.59 AUD
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Hole Size
5.94
mm

(Equiv. 0.234 in.)
Length
4.76
mm

(Equiv. 0.187 in.)
A
5.994
mm
B
6.680
mm
C
5.461
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC -4.17mm- 5.94x4.76 mm
Number of Fins: 2
Part Number: IN-PF-042C-095-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC - 4.17mm - 5.94x4.76 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$7.23 AUD
$7.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Hole Size
5.94
mm

(Equiv. 0.234 in.)
Length
4.76
mm

(Equiv. 0.187 in.)
A
5.994
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC -4.17mm- 5.94x4.76 mm
B: 6.680 mm    C: 5.461 mm    Number of Fins: 2
Part Number: IN-PF-042C-095-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 8-32 UNC - 4.17mm - 5.94x4.76 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$7.23 AUD
$7.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Hole Size
6.60
mm

(Equiv. 0.26 in.)
Length
9.53
mm

(Equiv. 0.375 in.)
A
6.680
mm
B
7.366
mm
C
6.147
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-24 UNC -4.76mm- 6.6x9.53 mm
Number of Fins: 2
Part Number: IN-PF-048C-095-W (10 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-24 UNC - 4.76mm - 6.6x9.53 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$16.23 AUD
$16.23 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Hole Size
6.60
mm

(Equiv. 0.26 in.)
Length
9.53
mm

(Equiv. 0.375 in.)
A
6.680
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-24 UNC -4.76mm- 6.6x9.53 mm
B: 7.366 mm    C: 6.147 mm    Number of Fins: 2
Part Number: IN-PF-048C-095-W (10 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-24 UNC - 4.76mm - 6.6x9.53 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$16.23 AUD
$16.23 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Hole Size
6.60
mm

(Equiv. 0.26 in.)
Length
4.76
mm

(Equiv. 0.187 in.)
A
6.680
mm
B
7.366
mm
C
6.147
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 6.6x4.76 mm
Number of Fins: 2
Part Number: IN-PF-048F-095-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF - 4.76mm - 6.6x4.76 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$8.77 AUD
$10.53 AUD $8.77 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Hole Size
6.60
mm

(Equiv. 0.26 in.)
Length
4.76
mm

(Equiv. 0.187 in.)
A
6.680
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 6.6x4.76 mm
B: 7.366 mm    C: 6.147 mm    Number of Fins: 2
Part Number: IN-PF-048F-095-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF - 4.76mm - 6.6x4.76 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$8.77 AUD
$10.53 AUD $8.77 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Hole Size
6.63
mm

(Equiv. 0.261 in.)
Length
9.53
mm

(Equiv. 0.375 in.)
A
6.680
mm
B
7.366
mm
C
6.147
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 6.63x9.53 mm
Number of Fins: 1
Part Number: IN-PF-048F-048-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF - 4.76mm - 6.63x9.53 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$10.86 AUD
$13.04 AUD $10.86 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Hole Size
6.63
mm

(Equiv. 0.261 in.)
Length
9.53
mm

(Equiv. 0.375 in.)
A
6.680
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 6.63x9.53 mm
B: 7.366 mm    C: 6.147 mm    Number of Fins: 1
Part Number: IN-PF-048F-048-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF - 4.76mm - 6.63x9.53 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$10.86 AUD
$13.04 AUD $10.86 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Hole Size
8.74
mm

(Equiv. 0.344 in.)
Length
14.3
mm

(Equiv. 0.563 in.)
A
8.814
mm
B
9.347
mm
C
8.077
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 8.74x14.3 mm

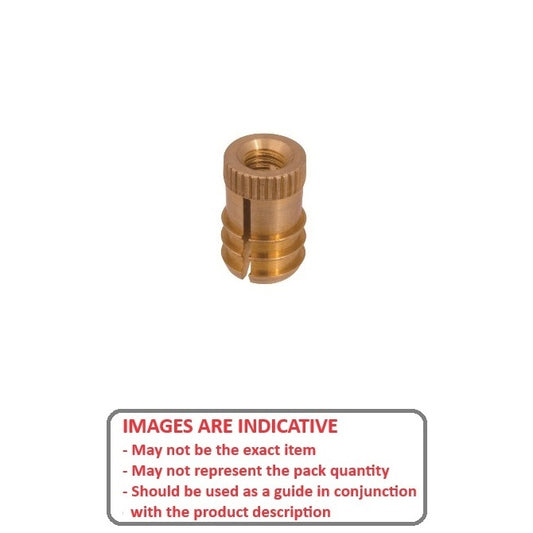

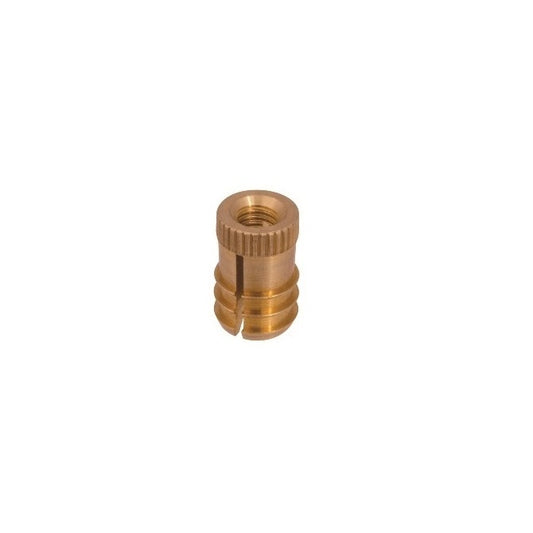

Number of Fins: 3
Part Number: IN-PF-048F-143-W (2 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF - 4.76mm - 8.74x14.3 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Oct 22, 2025
$3.77 AUD
$6.48 AUD $3.77 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (20 pcs) Available Now. Backorder if more than 10.
Internal Thread
10-32 UNF (4.76mm)

Hole Size
8.74
mm

(Equiv. 0.344 in.)
Length
14.3
mm

(Equiv. 0.563 in.)
A
8.814
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF -4.76mm- 8.74x14.3 mm
B: 9.347 mm    C: 8.077 mm    Number of Fins: 3
Part Number: IN-PF-048F-143-W (2 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 10-32 UNF - 4.76mm - 8.74x14.3 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Oct 22, 2025
$3.77 AUD
$6.48 AUD $3.77 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (20 pcs) Available Now. Backorder if more than 10.
Internal Thread
1/4-20 UNC (6.35mm)

Hole Size
8.33
mm

(Equiv. 0.328 in.)
Length
14.3
mm

(Equiv. 0.563 in.)
A
8.382
mm
B
9.068
mm
C
7.849
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC -6.35mm- 8.33x14.3 mm
Number of Fins: 2
Part Number: IN-PF-064C-095-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC - 6.35mm - 8.33x14.3 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$9.05 AUD
$9.05 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
1/4-20 UNC (6.35mm)

Hole Size
8.33
mm

(Equiv. 0.328 in.)
Length
14.3
mm

(Equiv. 0.563 in.)
A
8.382
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC -6.35mm- 8.33x14.3 mm
B: 9.068 mm    C: 7.849 mm    Number of Fins: 2
Part Number: IN-PF-064C-095-W (5 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC - 6.35mm - 8.33x14.3 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$9.05 AUD
$9.05 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
1/4-20 UNC (6.35mm)

Hole Size
10.31
mm

(Equiv. 0.406 in.)
Length
10.947
mm

(Equiv. 0.431 in.)
A
10.389
mm
B
10.947
mm
C
9.677
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC -6.35mm- 10.31x10.947 mm
Number of Fins: 3
Part Number: IN-PF-064C-143-W (2 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC - 6.35mm - 10.31x10.947 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Oct 22, 2025
$4.05 AUD
$7.00 AUD $4.05 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (20 pcs) Available Now. Backorder if more than 10.
Internal Thread
1/4-20 UNC (6.35mm)

Hole Size
10.31
mm

(Equiv. 0.406 in.)
Length
10.947
mm

(Equiv. 0.431 in.)
A
10.389
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC -6.35mm- 10.31x10.947 mm
B: 10.947 mm    C: 9.677 mm    Number of Fins: 3
Part Number: IN-PF-064C-143-W (2 Pcs)
Tapered Fit Finserts For Wood and Plastics Inserts - 1/4-20 UNC - 6.35mm - 10.31x10.947 mm
10 units (20 pcs) Available Now | Further orders can be expected around Wed, Oct 22, 2025
$4.05 AUD
$7.00 AUD $4.05 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (20 pcs) Available Now. Backorder if more than 10.
Internal Thread
5/16-18 UNC (7.94mm)

Hole Size
11.91
mm

(Equiv. 0.469 in.)
Length
14.3
mm

(Equiv. 0.563 in.)
A
11.963
mm
B
12.522
mm
C
11.252
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 5/16-18 UNC -7.94mm- 11.91x14.3 mm
Number of Fins: 3
Part Number: IN-PF-079C-143-W
Tapered Fit Finserts For Wood and Plastics Inserts - 5/16-18 UNC - 7.94mm - 11.91x14.3 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Thread
5/16-18 UNC (7.94mm)

Hole Size
11.91
mm

(Equiv. 0.469 in.)
Length
14.3
mm

(Equiv. 0.563 in.)
A
11.963
mm
Tapered Fit Finserts For Wood and Plastics Inserts - 5/16-18 UNC -7.94mm- 11.91x14.3 mm
B: 12.522 mm    C: 11.252 mm    Number of Fins: 3
Part Number: IN-PF-079C-143-W
Tapered Fit Finserts For Wood and Plastics Inserts - 5/16-18 UNC - 7.94mm - 11.91x14.3 mm
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 22, 2025
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
