Inserts - Rivet Nuts - Klik - Threadsert

Inserts -> Rivet Nuts -> Klik -> Threadsert

There are 6 products in the sub-categories of Inserts - Rivet Nuts - Klik - Threadsert. Browse the Inserts - Rivet Nuts - Klik - Threadsert products table.

Category Details

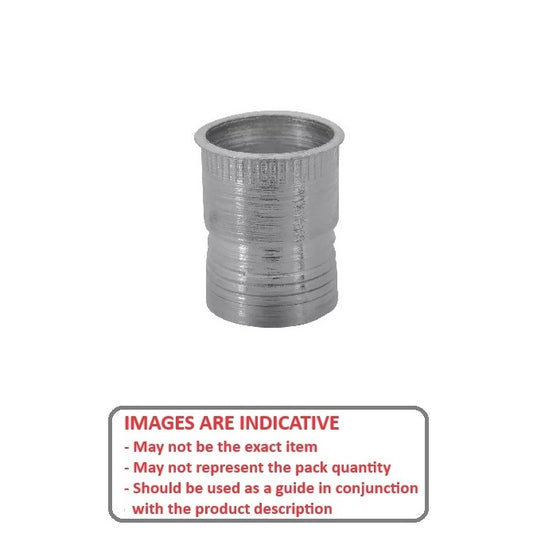

A selection of Threadsert Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These threaded inserts can be used in blind or through hole applications. Can be used in almost any material over 2.38mm thick.
  • As the insert is installed the threaded section is completely swaged into the sleeve portion of the hole, permitting them to be used with grade 8 screws.
  • The installation hole size is determined by the density of the parent material.
  • Can be pressed or otherwise compressed manually with a hammer for quick installation jobs in sheet material
  • Tools are available for assembly in blind holes or production assembly. Email us for a price on tools.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Inserts - Rivet Nuts - Klik - Threadsert category on the Small Parts & Bearings online store.
Internal Thread Body Width (C) Installed Height (D) Indicative
Internal Thread
6-32 UNC (3.5mm)

Body Width (C)
5.46
mm

(Equiv. 0.215 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 6-32 UNC -3.5mm- 5.46x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 6.35 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-035C-064-TS (100 Pcs)
Rivet Nuts Inserts - 6-32 UNC - 3.5mm - 5.46x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$149.77 AUD
$149.77 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Internal Thread Body Width (C) Installed Height (D) Indicative
Internal Thread
6-32 UNC (3.5mm)

Body Width (C)
5.46
mm

(Equiv. 0.215 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 6-32 UNC -3.5mm- 5.46x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 6.35 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-035C-064-TS (100 Pcs)
Rivet Nuts Inserts - 6-32 UNC - 3.5mm - 5.46x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$149.77 AUD
$149.77 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Body Width (C)
6.25
mm

(Equiv. 0.246 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 8-32 UNC -4.17mm- 6.25x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 7.16 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-042C-072-TS (10 Pcs)
Rivet Nuts Inserts - 8-32 UNC - 4.17mm - 6.25x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$9.23 AUD
$11.07 AUD $9.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Body Width (C)
6.25
mm

(Equiv. 0.246 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 8-32 UNC -4.17mm- 6.25x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 7.16 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-042C-072-TS (10 Pcs)
Rivet Nuts Inserts - 8-32 UNC - 4.17mm - 6.25x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$9.23 AUD
$11.07 AUD $9.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Body Width (C)
7.04
mm

(Equiv. 0.277 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 10-24 UNC -4.76mm- 7.04x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 7.98 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-048C-080-TS (100 Pcs)
Rivet Nuts Inserts - 10-24 UNC - 4.76mm - 7.04x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$126.14 AUD
$151.36 AUD $126.14 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Body Width (C)
7.04
mm

(Equiv. 0.277 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 10-24 UNC -4.76mm- 7.04x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 7.98 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-048C-080-TS (100 Pcs)
Rivet Nuts Inserts - 10-24 UNC - 4.76mm - 7.04x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$126.14 AUD
$151.36 AUD $126.14 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Body Width (C)
7.04
mm

(Equiv. 0.277 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 10-32 UNF -4.76mm- 7.04x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 7.98 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-048F-080-TS (100 Pcs)
Rivet Nuts Inserts - 10-32 UNF - 4.76mm - 7.04x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$156.86 AUD
$156.86 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Body Width (C)
7.04
mm

(Equiv. 0.277 in.)
Installed Height (D)
9.52
mm

(Equiv. 0.375 in.)
Rivet Nuts Inserts - 10-32 UNF -4.76mm- 7.04x9.52 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 7.98 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-048F-080-TS (100 Pcs)
Rivet Nuts Inserts - 10-32 UNF - 4.76mm - 7.04x9.52 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$156.86 AUD
$156.86 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Internal Thread
5/16-18 UNC (7.94mm)

Body Width (C)
12.6
mm

(Equiv. 0.496 in.)
Installed Height (D)
15.62
mm

(Equiv. 0.615 in.)
Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 12.6x15.62 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 13.64 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-079C-136-TS (25 Pcs)
Rivet Nuts Inserts - 5/16-18 UNC - 7.94mm - 12.6x15.62 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$80.68 AUD
$96.82 AUD $80.68 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Internal Thread
5/16-18 UNC (7.94mm)

Body Width (C)
12.6
mm

(Equiv. 0.496 in.)
Installed Height (D)
15.62
mm

(Equiv. 0.615 in.)
Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 12.6x15.62 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 13.64 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-079C-136-TS (25 Pcs)
Rivet Nuts Inserts - 5/16-18 UNC - 7.94mm - 12.6x15.62 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$80.68 AUD
$96.82 AUD $80.68 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Internal Thread
3/8-16 UNC (9.53mm)

Body Width (C)
18.8
mm

(Equiv. 0.74 in.)
Installed Height (D)
18.8
mm

(Equiv. 0.74 in.)
Rivet Nuts Inserts - 3/8-16 UNC -9.53mm- 18.8x18.8 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 16.76 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-095C-168-TS (25 Pcs)
Rivet Nuts Inserts - 3/8-16 UNC - 9.53mm - 18.8x18.8 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$83.50 AUD
$100.20 AUD $83.50 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Internal Thread
3/8-16 UNC (9.53mm)

Body Width (C)
18.8
mm

(Equiv. 0.74 in.)
Installed Height (D)
18.8
mm

(Equiv. 0.74 in.)
Rivet Nuts Inserts - 3/8-16 UNC -9.53mm- 18.8x18.8 mm - Steel - Cadmium Finish
Material: Steel - Cadmium Finish    Head Width (A): 16.76 mm    Minimum Material Thickness: 2.38
Part Number: IN-RIV-095C-168-TS (25 Pcs)
Rivet Nuts Inserts - 3/8-16 UNC - 9.53mm - 18.8x18.8 mm Klik - Steel - Cadmium Finish Insert
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$83.50 AUD
$100.20 AUD $83.50 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
