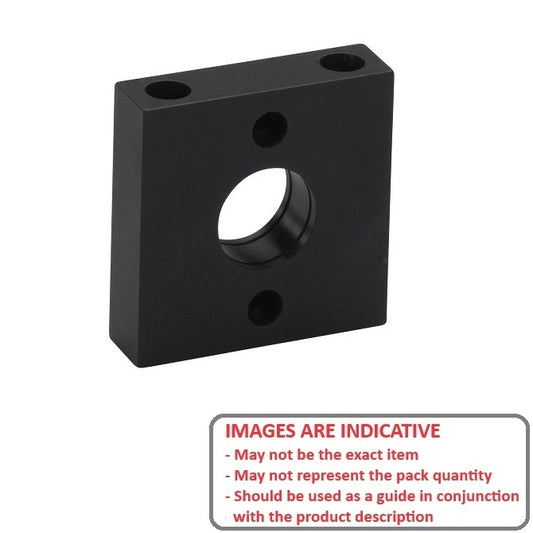

A selection of Square Miniature Housings. Aluminium housings to suit standard radial ball bearings.

  • This category will be discontinued when the remaining items are sold.
  • All items are priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.
  • Use with standard radial ball bearings.
  • Bearing not included.
  • Can be through screwed from the top using socket head cap screws.
  • Can be bolted from the bottom using the pre-tapped holes.
  • Made from Aluminium 6082-T6 Black Anodised.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housings - Square Miniature category on the Small Parts & Bearings online store.
Suitable Bearing OD (d H7) Width (L) Length (B and H) Through Screw Head (Px0) Through Screw Size Bottom Tapped Hole (TxN) Indicative
Suitable Bearing OD (d H7)
16.000
mm

(Equiv. 0.63 in.)
Width (L)
14.0
mm

(Equiv. 0.551 in.)
Length (B and H)
32.0
mm

(Equiv. 1.26 in.)
Through Screw Head (Px0)
7.5 x 4.3
mm
Through Screw Size
M4 (Hole is 4.3mm)
Bottom Tapped Hole (TxN)
M5 x 12
mm
Square Miniature Housings - 16x14x32 mm
Material: Steel    Screw Hole Centres (E): 22.0 mm    Weight: 0.03 kg
Deleted Item. Available while stocks last.
Part Number: HSGSQ-16.00X14.00
Square Miniature Housings - 16x14x32 mm - Steel Housing
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bearing OD (d H7) Width (L) Length (B and H) Through Screw Head (Px0) Indicative
Suitable Bearing OD (d H7)
16.000
mm

(Equiv. 0.63 in.)
Width (L)
14.0
mm

(Equiv. 0.551 in.)
Length (B and H)
32.0
mm

(Equiv. 1.26 in.)
Through Screw Head (Px0)
7.5 x 4.3
mm
Square Miniature Housings - 16x14x32 mm
Material: Steel    Through Screw Size: M4 (Hole is 4.3mm)    Bottom Tapped Hole (TxN): M5 x 12 mm    Screw Hole Centres (E): 22.0 mm    Weight: 0.03 kg
Deleted Item. Available while stocks last.
Part Number: HSGSQ-16.00X14.00
Square Miniature Housings - 16x14x32 mm - Steel Housing
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bearing OD (d H7)
19.000
mm

(Equiv. 0.748 in.)
Width (L)
16.0
mm

(Equiv. 0.63 in.)
Length (B and H)
38.0
mm

(Equiv. 1.496 in.)
Through Screw Head (Px0)
9.0 x 5.3
mm
Through Screw Size
M5 (Hole is 5.3mm)
Bottom Tapped Hole (TxN)
M6 x 14
mm

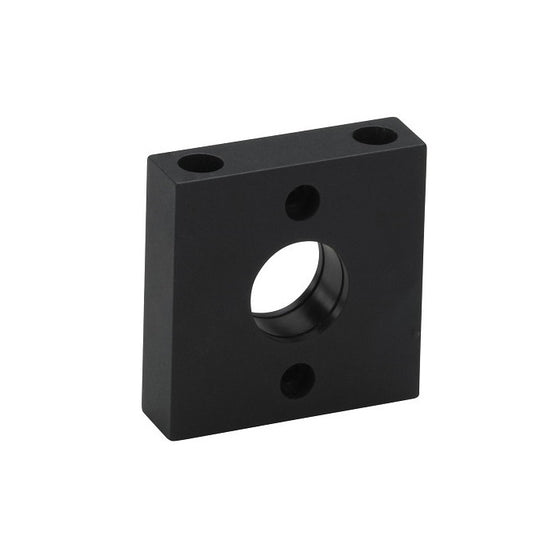

Square Miniature Housings - 19x16x38 mm
