Housings - Pressed Metal Pillow Block

Housings -> Pressed Metal Pillow Block

There are 2 products in the sub-categories of Housings - Pressed Metal Pillow Block. Browse the Housings - Pressed Metal Pillow Block products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

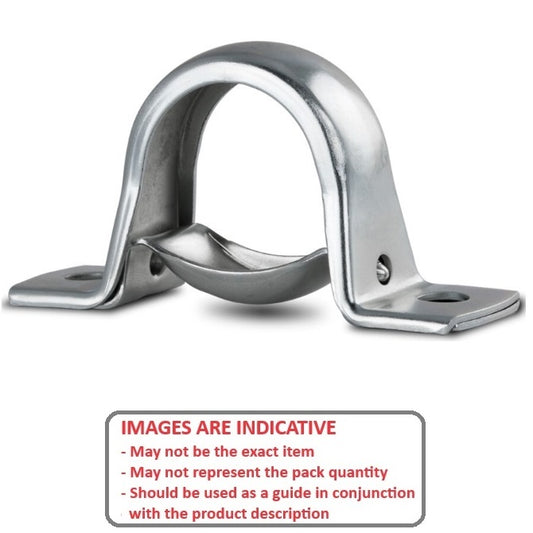

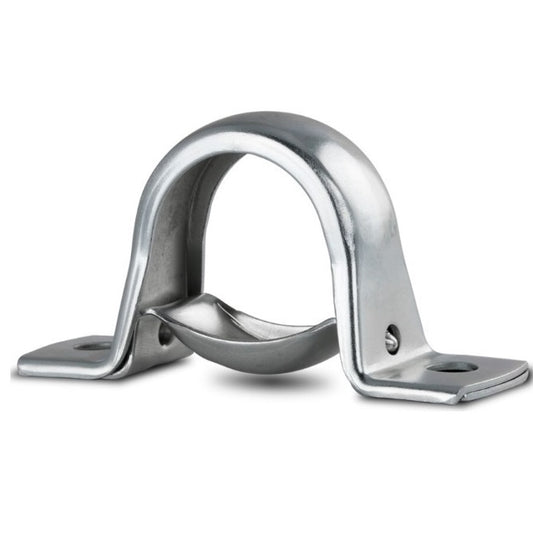

A selection of Pressed Metal Pillow Block Housings. Bearings sold separately.

  • An expanded range may be available on special order. Please enquire.
  • Use with steel bearing inserts for pressed metal housings.
  • Larger sizes available on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housings - Pressed Metal Pillow Block category on the Small Parts & Bearings online store.
Height (H) Length (L) Base Width (W) Bolt Hole Centres (J) Bearing Width (B) Centre Height (ch) Indicative
Height (H)
43.800
mm

(Equiv. 1.724 in.)
Length (L)
86.000
mm

(Equiv. 3.386 in.)
Base Width (W)
25.000
mm

(Equiv. 0.984 in.)
Bolt Hole Centres (J)
68.000
mm
Bearing Width (B)
22.000
mm
Centre Height (ch)
22.200
mm
Pressed Metal Pillow Block Housings - 43.8x86x25 mm
Material: Steel    To Suit Bearing: B1 - B2 - B3    Bolt Hole Size (s): 9.000 mm
Part Number: PP3Z2
Pressed Metal Pillow Block Housings - 43.8x86x25 mm - Steel Housing
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 19, 2028
$6.86 AUD
$8.24 AUD $6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Height (H) Length (L) Base Width (W) Bolt Hole Centres (J) Indicative
Height (H)
43.800
mm

(Equiv. 1.724 in.)
Length (L)
86.000
mm

(Equiv. 3.386 in.)
Base Width (W)
25.000
mm

(Equiv. 0.984 in.)
Bolt Hole Centres (J)
68.000
mm
Pressed Metal Pillow Block Housings - 43.8x86x25 mm
Material: Steel    Bearing Width (B): 22.000 mm    Centre Height (ch): 22.200 mm    To Suit Bearing: B1 - B2 - B3    Bolt Hole Size (s): 9.000 mm
Part Number: PP3Z2
Pressed Metal Pillow Block Housings - 43.8x86x25 mm - Steel Housing
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 19, 2028
$6.86 AUD
$8.24 AUD $6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Height (H)
56.600
mm

(Equiv. 2.228 in.)
Length (L)
108.000
mm

(Equiv. 4.252 in.)
Base Width (W)
32.000
mm

(Equiv. 1.26 in.)
Bolt Hole Centres (J)
86.000
mm
Bearing Width (B)
27.000
mm
Centre Height (ch)
28.600
mm
Pressed Metal Pillow Block Housings - 56.6x108x32 mm
Material: Steel    To Suit Bearing: B5    Bolt Hole Size (s): 11.000 mm
Part Number: PP5Z2
Pressed Metal Pillow Block Housings - 56.6x108x32 mm - Steel Housing
1 Available Now | Further orders can be expected around Mon, Jun 19, 2028
$6.50 AUD
$7.80 AUD $6.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Height (H)
56.600
mm

(Equiv. 2.228 in.)
Length (L)
108.000
mm

(Equiv. 4.252 in.)
Base Width (W)
32.000
mm

(Equiv. 1.26 in.)
Bolt Hole Centres (J)
86.000
mm
Pressed Metal Pillow Block Housings - 56.6x108x32 mm
Material: Steel    Bearing Width (B): 27.000 mm    Centre Height (ch): 28.600 mm    To Suit Bearing: B5    Bolt Hole Size (s): 11.000 mm
Part Number: PP5Z2
Pressed Metal Pillow Block Housings - 56.6x108x32 mm - Steel Housing
1 Available Now | Further orders can be expected around Mon, Jun 19, 2028
$6.50 AUD
$7.80 AUD $6.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
