Housings - Pillow Block Miniature

Housings -> Pillow Block Miniature

There is only 1 product in the sub-categories of Housings - Pillow Block Miniature. Browse the Housings - Pillow Block Miniature products table.

Category Details

A selection of Pillow Block Miniature Housings. Spyraflo aluminium pillow block housings mounted with 440C stainless miniature bearings

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.
  • No more need for expensive engineering of housings to suit your new applications.
  • Fully greased Japanese 440C Grade corrosion resistant stainless steel ball bearings
  • Double shielded bearings to minimise contamination

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housings - Pillow Block Miniature category on the Small Parts & Bearings online store.
Shaft Diameter (H) Max RPM Dynamic Load Capacity Centre Height (A) Overall Length (B) Bolt Hole Centres (C) Indicative

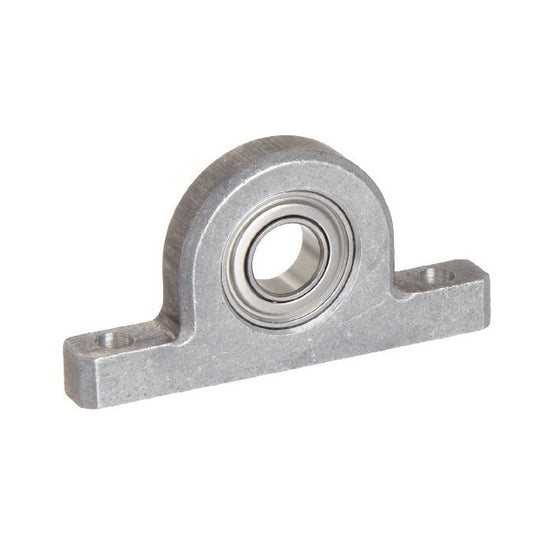

Pillow Block Miniature Housings - 10 mm - 37000 - 1780 N - Steel Housing
Shaft Diameter (H)
10.000
mm

(Equiv. 0.394 in.)
Max RPM
37000

Dynamic Load Capacity
1780
N
Centre Height (A)
14.287
mm
Overall Length (B)
57.15
mm
Bolt Hole Centres (C)
44.450
mm

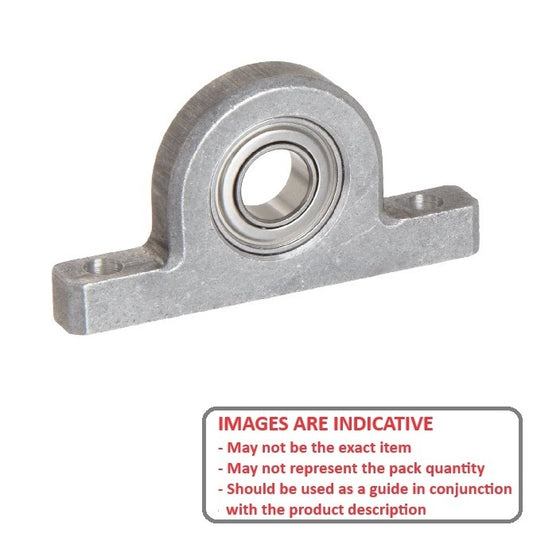

Pillow Block Miniature Housings - 10 mm - 37000 - 1780 N - Steel
Material: Steel    Height (D): 28.70 mm    Width (E): 10.16 mm    Hole Diameters (F): 3.962 mm    Base Height (G): 6.35 mm
Deleted Item. Available while stocks last.
Part Number: PB1-S6800BZZ (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (H) Max RPM Dynamic Load Capacity Centre Height (A) Indicative
Pillow Block Miniature Housings - 10 mm - 37000 - 1780 N - Steel Housing
Shaft Diameter (H)
10.000
mm

(Equiv. 0.394 in.)
Max RPM
37000

Dynamic Load Capacity
1780
N
Centre Height (A)
14.287
mm
Pillow Block Miniature Housings - 10 mm - 37000 - 1780 N - Steel
Material: Steel    Overall Length (B): 57.15 mm    Bolt Hole Centres (C): 44.450 mm    Height (D): 28.70 mm    Width (E): 10.16 mm    Hole Diameters (F): 3.962 mm    Base Height (G): 6.35 mm
Deleted Item. Available while stocks last.
Part Number: PB1-S6800BZZ (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
