Housing and Bearing Assembly - Tapped Base - Stainless

Housing and Bearing Assembly -> Tapped Base -> Stainless

There are 24 products in the sub-categories of Housing and Bearing Assembly - Tapped Base - Stainless. Scroll down or follow the link to Housing and Bearing Assembly - Tapped Base - Stainless in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Stainless Tapped Base Housing and Bearing Assembly. Full stainless steel bearing units are the best solution for hostile chemical washdown applications. All metal bearing insert components are a combination of 302, 304 and 440 stainless steel. Seals are silicone rubber. Grease is H-1 food grade.

  • Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
  • Operating temperature minus 20 oC to +120 deg C
  • Solid 304 stainless housings have a machined base and extremely smooth surface finish, essential for demanding washdown installations.
  • These housings do not experience flaking, cracking or discolouration and are virtually unaffected by scrapes.
  • Bearings are removable.
  • Food grade

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housing and Bearing Assembly - Tapped Base - Stainless category on the Small Parts & Bearings online store.
Bore Centre Height (A) Width (B) Depth (C) Bolt Depth (D) Bolt Distances (E) Indicative

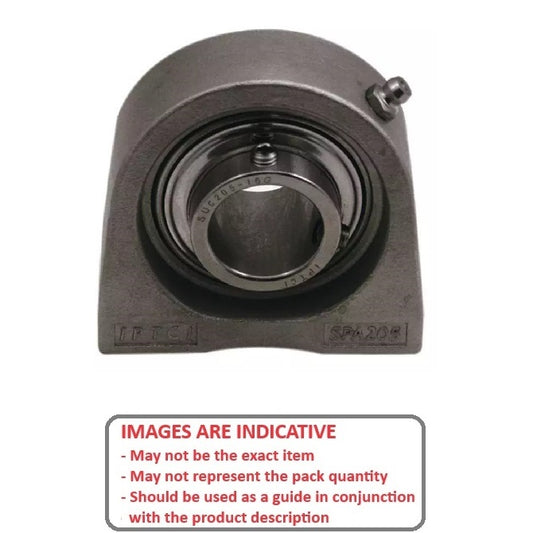

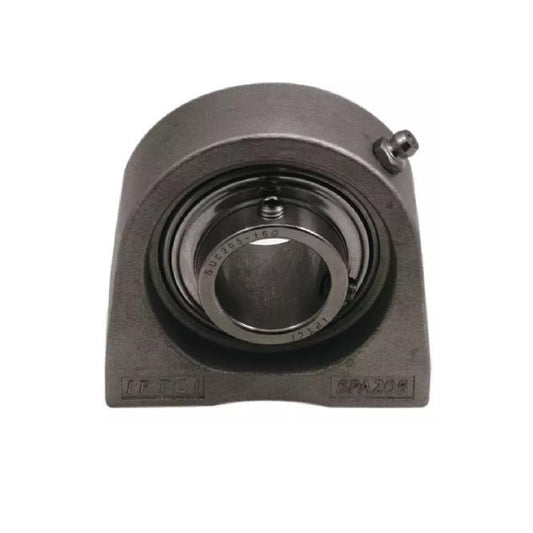

Tapped Base Housing and Bearing Assembly - 12.7x33.325x73.025 mm Stainless
Bore
12.700
mm
Centre Height (A)
33.325
mm
Width (B)
73.025
mm
Depth (C)
38.100
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 12.7x33.325x73.025 mm
Thread (G): 3/8-16 UNC (9.53mm)    K: 31.001 mm    L: 18.301 mm
Part Number: IP-100RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$355.77 AUD
$355.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bore Centre Height (A) Width (B) Depth (C) Indicative
Tapped Base Housing and Bearing Assembly - 12.7x33.325x73.025 mm Stainless
Bore
12.700
mm
Centre Height (A)
33.325
mm
Width (B)
73.025
mm
Depth (C)
38.100
mm
Tapped Base Housing Assembly - 12.7x33.325x73.025 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 50.800 mm    Thread (G): 3/8-16 UNC (9.53mm)    K: 31.001 mm    L: 18.301 mm
Part Number: IP-100RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$355.77 AUD
$355.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 15.875x33.3x73 mm Stainless
Bore
15.875
mm
Centre Height (A)
33.300
mm
Width (B)
73.000
mm
Depth (C)
38.000
mm
Bolt Depth (D)
13.000
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 15.875x33.3x73 mm
Thread (G): UNC    K: 31.000 mm    L: 18.300 mm
Part Number: IP-101RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$462.32 AUD
$554.78 AUD $462.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 15.875x33.3x73 mm Stainless
Bore
15.875
mm
Centre Height (A)
33.300
mm
Width (B)
73.000
mm
Depth (C)
38.000
mm
Tapped Base Housing Assembly - 15.875x33.3x73 mm
Bolt Depth (D): 13.000 mm    Bolt Distances (E): 50.800 mm    Thread (G): UNC    K: 31.000 mm    L: 18.300 mm
Part Number: IP-101RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$462.32 AUD
$554.78 AUD $462.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 19.05x33.325x73.025 mm Stainless
Bore
19.050
mm
Centre Height (A)
33.325
mm
Width (B)
73.025
mm
Depth (C)
38.100
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 19.05x33.325x73.025 mm
Thread (G): 3/8-16 UNC (9.53mm)    K: 31.001 mm    L: 18.301 mm
Part Number: IP-102RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$409.68 AUD
$491.62 AUD $409.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 19.05x33.325x73.025 mm Stainless
Bore
19.050
mm
Centre Height (A)
33.325
mm
Width (B)
73.025
mm
Depth (C)
38.100
mm
Tapped Base Housing Assembly - 19.05x33.325x73.025 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 50.800 mm    Thread (G): 3/8-16 UNC (9.53mm)    K: 31.001 mm    L: 18.301 mm
Part Number: IP-102RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$409.68 AUD
$491.62 AUD $409.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 20x33.3x73 mm Stainless
Bore
20.000
mm
Centre Height (A)
33.300
mm
Width (B)
73.000
mm
Depth (C)
38.000
mm
Bolt Depth (D)
13.000
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 20x33.3x73 mm
Thread (G): UNC    K: 31.000 mm    L: 18.300 mm
Part Number: IP-103RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$457.32 AUD
$548.78 AUD $457.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 20x33.3x73 mm Stainless
Bore
20.000
mm
Centre Height (A)
33.300
mm
Width (B)
73.000
mm
Depth (C)
38.000
mm
Tapped Base Housing Assembly - 20x33.3x73 mm
Bolt Depth (D): 13.000 mm    Bolt Distances (E): 50.800 mm    Thread (G): UNC    K: 31.000 mm    L: 18.300 mm
Part Number: IP-103RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$457.32 AUD
$548.78 AUD $457.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 22.225x36.5x76.2 mm Stainless
Bore
22.225
mm
Centre Height (A)
36.500
mm
Width (B)
76.200
mm
Depth (C)
38.100
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 22.225x36.5x76.2 mm
Thread (G): 3/8-16 UNC (9.53mm)    K: 34.000 mm    L: 19.700 mm
Part Number: IP-104RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$494.59 AUD
$593.51 AUD $494.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 22.225x36.5x76.2 mm Stainless
Bore
22.225
mm
Centre Height (A)
36.500
mm
Width (B)
76.200
mm
Depth (C)
38.100
mm
Tapped Base Housing Assembly - 22.225x36.5x76.2 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 76.200 mm    Thread (G): 3/8-16 UNC (9.53mm)    K: 34.000 mm    L: 19.700 mm
Part Number: IP-104RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$494.59 AUD
$593.51 AUD $494.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 25x36.5x76 mm Stainless
Bore
25.000
mm
Centre Height (A)
36.500
mm
Width (B)
76.000
mm
Depth (C)
38.000
mm
Bolt Depth (D)
13.000
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 25x36.5x76 mm
Thread (G): UNC    K: 34.000 mm    L: 19.700 mm
Part Number: IP-105RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$524.77 AUD
$629.73 AUD $524.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 25x36.5x76 mm Stainless
Bore
25.000
mm
Centre Height (A)
36.500
mm
Width (B)
76.000
mm
Depth (C)
38.000
mm
Tapped Base Housing Assembly - 25x36.5x76 mm
Bolt Depth (D): 13.000 mm    Bolt Distances (E): 76.200 mm    Thread (G): UNC    K: 34.000 mm    L: 19.700 mm
Part Number: IP-105RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$524.77 AUD
$629.73 AUD $524.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 25.4x36.5x76.2 mm Stainless
Bore
25.400
mm
Centre Height (A)
36.500
mm
Width (B)
76.200
mm
Depth (C)
38.100
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 25.4x36.5x76.2 mm
Thread (G): 3/8-16 UNC (9.53mm)    K: 34.000 mm    L: 19.700 mm
Part Number: IP-106RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$407.05 AUD
$488.45 AUD $407.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 25.4x36.5x76.2 mm Stainless
Bore
25.400
mm
Centre Height (A)
36.500
mm
Width (B)
76.200
mm
Depth (C)
38.100
mm
Tapped Base Housing Assembly - 25.4x36.5x76.2 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 76.200 mm    Thread (G): 3/8-16 UNC (9.53mm)    K: 34.000 mm    L: 19.700 mm
Part Number: IP-106RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$407.05 AUD
$488.45 AUD $407.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 28.575x42.863x101.6 mm Stainless
Bore
28.575
mm
Centre Height (A)
42.863
mm
Width (B)
101.600
mm
Depth (C)
38.100
mm
Bolt Depth (D)
15.875
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 28.575x42.863x101.6 mm
Thread (G): 7/16-14 UNC (11.11mm)    K: 38.100 mm    L: 22.200 mm
Part Number: IP-107RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$747.41 AUD
$896.89 AUD $747.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 28.575x42.863x101.6 mm Stainless
Bore
28.575
mm
Centre Height (A)
42.863
mm
Width (B)
101.600
mm
Depth (C)
38.100
mm
Tapped Base Housing Assembly - 28.575x42.863x101.6 mm
Bolt Depth (D): 15.875 mm    Bolt Distances (E): 76.200 mm    Thread (G): 7/16-14 UNC (11.11mm)    K: 38.100 mm    L: 22.200 mm
Part Number: IP-107RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$747.41 AUD
$896.89 AUD $747.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 30x42.9x102 mm Stainless
Bore
30.000
mm
Centre Height (A)
42.900
mm
Width (B)
102.000
mm
Depth (C)
38.000
mm
Bolt Depth (D)
16.000
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 30x42.9x102 mm
Thread (G): UNC    K: 38.100 mm    L: 22.200 mm
Part Number: IP-108RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$768.32 AUD
$921.98 AUD $768.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 30x42.9x102 mm Stainless
Bore
30.000
mm
Centre Height (A)
42.900
mm
Width (B)
102.000
mm
Depth (C)
38.000
mm
Tapped Base Housing Assembly - 30x42.9x102 mm
Bolt Depth (D): 16.000 mm    Bolt Distances (E): 76.200 mm    Thread (G): UNC    K: 38.100 mm    L: 22.200 mm
Part Number: IP-108RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$768.32 AUD
$921.98 AUD $768.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 30.15x42.863x101.6 mm Stainless
Bore
30.150
mm
Centre Height (A)
42.863
mm
Width (B)
101.600
mm
Depth (C)
38.100
mm
Bolt Depth (D)
15.875
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 30.15x42.863x101.6 mm
Thread (G): 7/16-14 UNC (11.11mm)    K: 38.100 mm    L: 22.200 mm
Part Number: IP-109RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$764.05 AUD
$916.85 AUD $764.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 30.15x42.863x101.6 mm Stainless
Bore
30.150
mm
Centre Height (A)
42.863
mm
Width (B)
101.600
mm
Depth (C)
38.100
mm
Tapped Base Housing Assembly - 30.15x42.863x101.6 mm
Bolt Depth (D): 15.875 mm    Bolt Distances (E): 76.200 mm    Thread (G): 7/16-14 UNC (11.11mm)    K: 38.100 mm    L: 22.200 mm
Part Number: IP-109RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$764.05 AUD
$916.85 AUD $764.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 31.75x42.863x101.6 mm Stainless
Bore
31.750
mm
Centre Height (A)
42.863
mm
Width (B)
101.600
mm
Depth (C)
38.100
mm
Bolt Depth (D)
15.875
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 31.75x42.863x101.6 mm
Thread (G): 7/16-14 UNC (11.11mm)    K: 38.100 mm    L: 22.200 mm
Part Number: IP-110RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$747.41 AUD
$896.89 AUD $747.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 31.75x42.863x101.6 mm Stainless
Bore
31.750
mm
Centre Height (A)
42.863
mm
Width (B)
101.600
mm
Depth (C)
38.100
mm
Tapped Base Housing Assembly - 31.75x42.863x101.6 mm
Bolt Depth (D): 15.875 mm    Bolt Distances (E): 76.200 mm    Thread (G): 7/16-14 UNC (11.11mm)    K: 38.100 mm    L: 22.200 mm
Part Number: IP-110RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$747.41 AUD
$896.89 AUD $747.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 31.75x47.625x107.95 mm Stainless
Bore
31.750
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Bolt Depth (D)
19.050
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 31.75x47.625x107.95 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-111RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$941.95 AUD
$1,130.35 AUD $941.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 31.75x47.625x107.95 mm Stainless
Bore
31.750
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 31.75x47.625x107.95 mm
Bolt Depth (D): 19.050 mm    Bolt Distances (E): 82.550 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-111RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$941.95 AUD
$1,130.35 AUD $941.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 33.325x47.625x107.95 mm Stainless
Bore
33.325
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Bolt Depth (D)
19.050
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 33.325x47.625x107.95 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-112RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,034.41 AUD
$1,241.29 AUD $1,034.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 33.325x47.625x107.95 mm Stainless
Bore
33.325
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 33.325x47.625x107.95 mm
Bolt Depth (D): 19.050 mm    Bolt Distances (E): 82.550 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-112RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,034.41 AUD
$1,241.29 AUD $1,034.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 34.925x47.625x107.95 mm Stainless
Bore
34.925
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Bolt Depth (D)
19.050
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 34.925x47.625x107.95 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-113RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$941.95 AUD
$1,130.35 AUD $941.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 34.925x47.625x107.95 mm Stainless
Bore
34.925
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 34.925x47.625x107.95 mm
Bolt Depth (D): 19.050 mm    Bolt Distances (E): 82.550 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-113RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$941.95 AUD
$1,130.35 AUD $941.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 35x47.6x108 mm Stainless
Bore
35.000
mm
Centre Height (A)
47.600
mm
Width (B)
108.000
mm
Depth (C)
48.000
mm
Bolt Depth (D)
19.000
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 35x47.6x108 mm
Thread (G): UNC    K: 42.900 mm    L: 25.400 mm
Part Number: IP-114RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$972.77 AUD
$1,167.33 AUD $972.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 35x47.6x108 mm Stainless
Bore
35.000
mm
Centre Height (A)
47.600
mm
Width (B)
108.000
mm
Depth (C)
48.000
mm
Tapped Base Housing Assembly - 35x47.6x108 mm
Bolt Depth (D): 19.000 mm    Bolt Distances (E): 82.550 mm    Thread (G): UNC    K: 42.900 mm    L: 25.400 mm
Part Number: IP-114RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$972.77 AUD
$1,167.33 AUD $972.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 36.5x47.625x107.95 mm Stainless
Bore
36.500
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Bolt Depth (D)
19.050
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 36.5x47.625x107.95 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-115RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$962.77 AUD
$1,155.33 AUD $962.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 36.5x47.625x107.95 mm Stainless
Bore
36.500
mm
Centre Height (A)
47.625
mm
Width (B)
107.950
mm
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 36.5x47.625x107.95 mm
Bolt Depth (D): 19.050 mm    Bolt Distances (E): 82.550 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 42.901 mm    L: 25.400 mm
Part Number: IP-115RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$962.77 AUD
$1,155.33 AUD $962.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 38.1x49.213x117.475 mm Stainless
Bore
38.100
mm
Centre Height (A)
49.213
mm
Width (B)
117.475
mm
Depth (C)
47.625
mm
Bolt Depth (D)
19.050
mm
Bolt Distances (E)
88.900
mm
Tapped Base Housing Assembly - 38.1x49.213x117.475 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 49.200 mm    L: 30.201 mm
Part Number: IP-116RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,122.86 AUD
$1,347.44 AUD $1,122.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 38.1x49.213x117.475 mm Stainless
Bore
38.100
mm
Centre Height (A)
49.213
mm
Width (B)
117.475
mm
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 38.1x49.213x117.475 mm
Bolt Depth (D): 19.050 mm    Bolt Distances (E): 88.900 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 49.200 mm    L: 30.201 mm
Part Number: IP-116RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,122.86 AUD
$1,347.44 AUD $1,122.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 40x49.2x117 mm Stainless
Bore
40.000
mm
Centre Height (A)
49.200
mm
Width (B)
117.000
mm
Depth (C)
48.000
mm
Bolt Depth (D)
19.000
mm
Bolt Distances (E)
88.900
mm
Tapped Base Housing Assembly - 40x49.2x117 mm
Thread (G): UNC    K: 49.200 mm    L: 30.200 mm
Part Number: IP-117RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,138.05 AUD
$1,365.65 AUD $1,138.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 40x49.2x117 mm Stainless
Bore
40.000
mm
Centre Height (A)
49.200
mm
Width (B)
117.000
mm
Depth (C)
48.000
mm
Tapped Base Housing Assembly - 40x49.2x117 mm
Bolt Depth (D): 19.000 mm    Bolt Distances (E): 88.900 mm    Thread (G): UNC    K: 49.200 mm    L: 30.200 mm
Part Number: IP-117RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,138.05 AUD
$1,365.65 AUD $1,138.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 42.863x53.975x127 mm Stainless
Bore
42.863
mm
Centre Height (A)
53.975
mm
Width (B)
127.000
mm
Depth (C)
95.250
mm
Bolt Depth (D)
19.050
mm
Bolt Distances (E)
95.250
mm
Tapped Base Housing Assembly - 42.863x53.975x127 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 49.200 mm    L: 30.201 mm
Part Number: IP-118RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,270.95 AUD
$1,525.15 AUD $1,270.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 42.863x53.975x127 mm Stainless
Bore
42.863
mm
Centre Height (A)
53.975
mm
Width (B)
127.000
mm
Depth (C)
95.250
mm
Tapped Base Housing Assembly - 42.863x53.975x127 mm
Bolt Depth (D): 19.050 mm    Bolt Distances (E): 95.250 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 49.200 mm    L: 30.201 mm
Part Number: IP-118RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,270.95 AUD
$1,525.15 AUD $1,270.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 44.45x53.975x127 mm Stainless
Bore
44.450
mm
Centre Height (A)
53.975
mm
Width (B)
127.000
mm
Depth (C)
95.250
mm
Bolt Depth (D)
19.050
mm
Bolt Distances (E)
95.250
mm
Tapped Base Housing Assembly - 44.45x53.975x127 mm
Thread (G): UNC    K: 49.200 mm    L: 30.200 mm
Part Number: IP-119RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,270.95 AUD
$1,525.15 AUD $1,270.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 44.45x53.975x127 mm Stainless
Bore
44.450
mm
Centre Height (A)
53.975
mm
Width (B)
127.000
mm
Depth (C)
95.250
mm
Tapped Base Housing Assembly - 44.45x53.975x127 mm
Bolt Depth (D): 19.050 mm    Bolt Distances (E): 95.250 mm    Thread (G): UNC    K: 49.200 mm    L: 30.200 mm
Part Number: IP-119RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,270.95 AUD
$1,525.15 AUD $1,270.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 45x54x127 mm Stainless
Bore
45.000
mm
Centre Height (A)
54.000
mm
Width (B)
127.000
mm
Depth (C)
95.300
mm
Bolt Depth (D)
19.000
mm
Bolt Distances (E)
95.250
mm
Tapped Base Housing Assembly - 45x54x127 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 49.200 mm    L: 30.201 mm
Part Number: IP-120RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,314.95 AUD
$1,577.95 AUD $1,314.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 45x54x127 mm Stainless
Bore
45.000
mm
Centre Height (A)
54.000
mm
Width (B)
127.000
mm
Depth (C)
95.300
mm
Tapped Base Housing Assembly - 45x54x127 mm
Bolt Depth (D): 19.000 mm    Bolt Distances (E): 95.250 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 49.200 mm    L: 30.201 mm
Part Number: IP-120RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,314.95 AUD
$1,577.95 AUD $1,314.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 49.213x57.15x139.7 mm Stainless
Bore
49.213
mm
Centre Height (A)
57.150
mm
Width (B)
139.700
mm
Depth (C)
101.600
mm
Bolt Depth (D)
22.225
mm
Bolt Distances (E)
101.600
mm
Tapped Base Housing Assembly - 49.213x57.15x139.7 mm
Thread (G): 5/8-11 UNC (15.88mm)    K: 51.600 mm    L: 32.601 mm
Part Number: IP-121RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,516.05 AUD
$1,819.25 AUD $1,516.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 49.213x57.15x139.7 mm Stainless
Bore
49.213
mm
Centre Height (A)
57.150
mm
Width (B)
139.700
mm
Depth (C)
101.600
mm
Tapped Base Housing Assembly - 49.213x57.15x139.7 mm
Bolt Depth (D): 22.225 mm    Bolt Distances (E): 101.600 mm    Thread (G): 5/8-11 UNC (15.88mm)    K: 51.600 mm    L: 32.601 mm
Part Number: IP-121RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,516.05 AUD
$1,819.25 AUD $1,516.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 50x57.2x140 mm Stainless
Bore
50.000
mm
Centre Height (A)
57.200
mm
Width (B)
140.000
mm
Depth (C)
101.600
mm
Bolt Depth (D)
22.000
mm
Bolt Distances (E)
101.600
mm
Tapped Base Housing Assembly - 50x57.2x140 mm
Thread (G): UNC    K: 51.600 mm    L: 32.600 mm
Part Number: IP-122RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,572.14 AUD
$1,886.56 AUD $1,572.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 50x57.2x140 mm Stainless
Bore
50.000
mm
Centre Height (A)
57.200
mm
Width (B)
140.000
mm
Depth (C)
101.600
mm
Tapped Base Housing Assembly - 50x57.2x140 mm
Bolt Depth (D): 22.000 mm    Bolt Distances (E): 101.600 mm    Thread (G): UNC    K: 51.600 mm    L: 32.600 mm
Part Number: IP-122RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,572.14 AUD
$1,886.56 AUD $1,572.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 50.8x57.15x139.7 mm Stainless
Bore
50.800
mm
Centre Height (A)
57.150
mm
Width (B)
139.700
mm
Depth (C)
101.600
mm
Bolt Depth (D)
22.225
mm
Bolt Distances (E)
101.600
mm
Tapped Base Housing Assembly - 50.8x57.15x139.7 mm
Thread (G): 5/8-11 UNC (15.88mm)    K: 51.600 mm    L: 32.601 mm
Part Number: IP-123RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,549.41 AUD
$1,859.29 AUD $1,549.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tapped Base Housing and Bearing Assembly - 50.8x57.15x139.7 mm Stainless
Bore
50.800
mm
Centre Height (A)
57.150
mm
Width (B)
139.700
mm
Depth (C)
101.600
mm
Tapped Base Housing Assembly - 50.8x57.15x139.7 mm
Bolt Depth (D): 22.225 mm    Bolt Distances (E): 101.600 mm    Thread (G): 5/8-11 UNC (15.88mm)    K: 51.600 mm    L: 32.601 mm
Part Number: IP-123RS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$1,549.41 AUD
$1,859.29 AUD $1,549.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
