Collection: Housing and Bearing Assembly - Flanged 4 Bolt - Rigid - Plastic and Stainless

Housing and Bearing Assembly -> Flanged 4 Bolt -> Rigid -> Plastic and Stainless

There are 18 products in the sub-categories of Housing and Bearing Assembly - Flanged 4 Bolt - Rigid - Plastic and Stainless. Browse the Housing and Bearing Assembly - Flanged 4 Bolt - Rigid - Plastic and Stainless products table.

Category Details

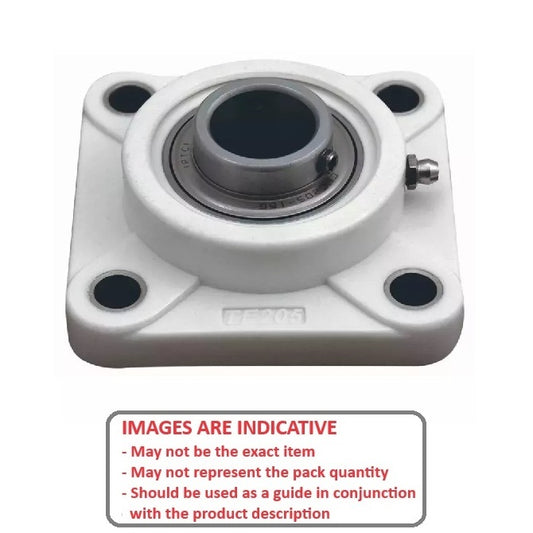

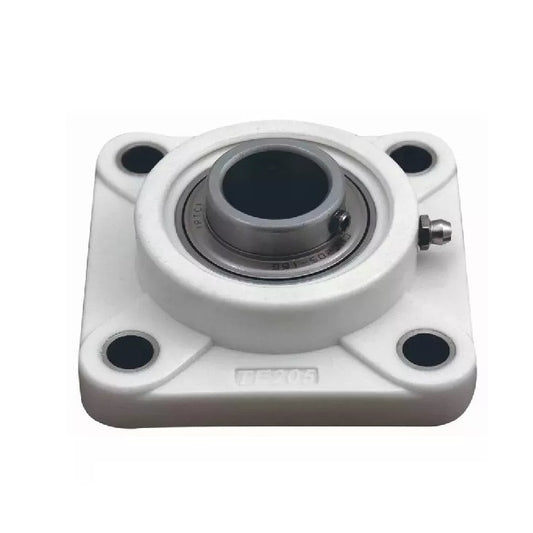

A selection of Plastic and Stainless Rigid Flanged 4 Bolt Housing and Bearing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.

Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
Food grade.
Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
Excellent mechanical, thermal and electrical properties.
Operational temperature -20 to +100 ^oC
Bearings are 440C stainless steel. Bushings and grease fittings are 300 grade stainless steel.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Housing and Bearing Assembly - Flanged 4 Bolt - Rigid - Plastic and Stainless category on the Small Parts & Bearings online store.

Nominal Shaft Size	Base Height (C)	Length (A)	Overall Height (E)	Housing Height (D)
Flanged 4 Bolt Housing and Bearing Assembly - 12.7x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 12.700 mm	Base Height (C) 13.494 mm	Length (A) 85.725 mm	Overall Height (E) 36.500 mm	Housing Height (D) 27.762 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-142RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $346.86 AUD Regular price Sale price $346.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Shaft Size	Base Height (C)	Length (A)	Overall Height (E)	Indicative Image
Flanged 4 Bolt Housing and Bearing Assembly - 12.7x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 12.700 mm	Base Height (C) 13.494 mm	Length (A) 85.725 mm	Overall Height (E) 36.500 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 27.762 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-142RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $346.86 AUD Regular price Sale price $346.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-142RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 12.7x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel IP-142RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 12.7x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel Regular price $346.86 AUD Regular price Sale price $346.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Flanged 4 Bolt Housing and Bearing Assembly - 15.875x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 15.875 mm	Base Height (C) 13.494 mm	Length (A) 85.725 mm	Overall Height (E) 36.500 mm	Housing Height (D) 27.762 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-143RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $297.77 AUD Regular price ~~$357.33 AUD~~ Sale price $297.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 15.875x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 15.875 mm	Base Height (C) 13.494 mm	Length (A) 85.725 mm	Overall Height (E) 36.500 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 27.762 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-143RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $297.77 AUD Regular price ~~$357.33 AUD~~ Sale price $297.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-143RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 15.875x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel Sale IP-143RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 15.875x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel Regular price $297.77 AUD Regular price ~~$357.33 AUD~~ Sale price $297.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 19.05x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 19.050 mm	Base Height (C) 13.494 mm	Length (A) 85.725 mm	Overall Height (E) 36.500 mm	Housing Height (D) 27.762 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-144RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $297.77 AUD Regular price ~~$357.33 AUD~~ Sale price $297.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 19.05x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 19.050 mm	Base Height (C) 13.494 mm	Length (A) 85.725 mm	Overall Height (E) 36.500 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 27.762 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-144RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $297.77 AUD Regular price ~~$357.33 AUD~~ Sale price $297.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-144RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 19.05x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel Sale IP-144RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 19.05x13.494x85.725 mm Rigid - Thermoplastic and Stainless Steel Regular price $297.77 AUD Regular price ~~$357.33 AUD~~ Sale price $297.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 20x13x86 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 20.000 mm	Base Height (C) 13.000 mm	Length (A) 86.000 mm	Overall Height (E) 36.500 mm	Housing Height (D) 28.000 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.000 mm
Part Number: IP-145RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $307.68 AUD Regular price ~~$369.22 AUD~~ Sale price $307.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 20x13x86 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 20.000 mm	Base Height (C) 13.000 mm	Length (A) 86.000 mm	Overall Height (E) 36.500 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 28.000 mm Bolt Hole Size (G): 11.000 mm
Part Number: IP-145RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $307.68 AUD Regular price ~~$369.22 AUD~~ Sale price $307.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-145RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 20x13x86 mm Rigid - Thermoplastic and Stainless Steel Sale IP-145RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 20x13x86 mm Rigid - Thermoplastic and Stainless Steel Regular price $307.68 AUD Regular price ~~$369.22 AUD~~ Sale price $307.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 22.225x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 22.225 mm	Base Height (C) 14.288 mm	Length (A) 95.250 mm	Overall Height (E) 36.500 mm	Housing Height (D) 27.762 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-146RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $329.23 AUD Regular price ~~$395.07 AUD~~ Sale price $329.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 22.225x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 22.225 mm	Base Height (C) 14.288 mm	Length (A) 95.250 mm	Overall Height (E) 36.500 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 27.762 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-146RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $329.23 AUD Regular price ~~$395.07 AUD~~ Sale price $329.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-146RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 22.225x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel Sale IP-146RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 22.225x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel Regular price $329.23 AUD Regular price ~~$395.07 AUD~~ Sale price $329.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 25x14x95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 25.000 mm	Base Height (C) 14.000 mm	Length (A) 95.000 mm	Overall Height (E) 36.500 mm	Housing Height (D) 28.000 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.000 mm
Part Number: IP-147RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $345.86 AUD Regular price ~~$415.04 AUD~~ Sale price $345.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 25x14x95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 25.000 mm	Base Height (C) 14.000 mm	Length (A) 95.000 mm	Overall Height (E) 36.500 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 28.000 mm Bolt Hole Size (G): 11.000 mm
Part Number: IP-147RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $345.86 AUD Regular price ~~$415.04 AUD~~ Sale price $345.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-147RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 25x14x95 mm Rigid - Thermoplastic and Stainless Steel Sale IP-147RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 25x14x95 mm Rigid - Thermoplastic and Stainless Steel Regular price $345.86 AUD Regular price ~~$415.04 AUD~~ Sale price $345.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 25.4x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 25.400 mm	Base Height (C) 14.288 mm	Length (A) 95.250 mm	Overall Height (E) 36.500 mm	Housing Height (D) 27.762 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-148RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $332.32 AUD Regular price ~~$398.78 AUD~~ Sale price $332.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 25.4x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 25.400 mm	Base Height (C) 14.288 mm	Length (A) 95.250 mm	Overall Height (E) 36.500 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 27.762 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-148RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $332.32 AUD Regular price ~~$398.78 AUD~~ Sale price $332.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-148RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 25.4x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel Sale IP-148RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 25.4x14.288x95.25 mm Rigid - Thermoplastic and Stainless Steel Regular price $332.32 AUD Regular price ~~$398.78 AUD~~ Sale price $332.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 28.575x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 28.575 mm	Base Height (C) 14.288 mm	Length (A) 107.950 mm	Overall Height (E) 41.275 mm	Housing Height (D) 31.750 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-149RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 28.575x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 28.575 mm	Base Height (C) 14.288 mm	Length (A) 107.950 mm	Overall Height (E) 41.275 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 31.750 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-149RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-149RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 28.575x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel Sale IP-149RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 28.575x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 30x14x108 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 30.000 mm	Base Height (C) 14.000 mm	Length (A) 108.000 mm	Overall Height (E) 41.300 mm	Housing Height (D) 32.000 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.000 mm
Part Number: IP-150RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $419.68 AUD Regular price ~~$503.62 AUD~~ Sale price $419.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 30x14x108 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 30.000 mm	Base Height (C) 14.000 mm	Length (A) 108.000 mm	Overall Height (E) 41.300 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 32.000 mm Bolt Hole Size (G): 11.000 mm
Part Number: IP-150RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $419.68 AUD Regular price ~~$503.62 AUD~~ Sale price $419.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-150RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 30x14x108 mm Rigid - Thermoplastic and Stainless Steel Sale IP-150RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 30x14x108 mm Rigid - Thermoplastic and Stainless Steel Regular price $419.68 AUD Regular price ~~$503.62 AUD~~ Sale price $419.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 30.163x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 30.163 mm	Base Height (C) 14.288 mm	Length (A) 107.950 mm	Overall Height (E) 41.275 mm	Housing Height (D) 31.750 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-151RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 30.163x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 30.163 mm	Base Height (C) 14.288 mm	Length (A) 107.950 mm	Overall Height (E) 41.275 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 31.750 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-151RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-151RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 30.163x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel Sale IP-151RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 30.163x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 31.75x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 31.75 mm	Base Height (C) 14.288 mm	Length (A) 107.950 mm	Overall Height (E) 41.275 mm	Housing Height (D) 31.750 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 11.100 mm
Part Number: IP-152RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 31.75x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 31.75 mm	Base Height (C) 14.288 mm	Length (A) 107.950 mm	Overall Height (E) 41.275 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 31.750 mm Bolt Hole Size (G): 11.100 mm
Part Number: IP-152RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-152RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 31.75x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel Sale IP-152RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 31.75x14.288x107.95 mm Rigid - Thermoplastic and Stainless Steel Regular price $399.14 AUD Regular price ~~$478.96 AUD~~ Sale price $399.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 31.75x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 31.750 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm	Housing Height (D) 34.925 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 13.097 mm
Part Number: IP-153RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 31.75x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 31.750 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 34.925 mm Bolt Hole Size (G): 13.097 mm
Part Number: IP-153RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-153RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 31.75x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Sale IP-153RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 31.75x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 33.338x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 33.338 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm	Housing Height (D) 34.925 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 13.097 mm
Part Number: IP-154RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $496.23 AUD Regular price ~~$595.47 AUD~~ Sale price $496.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 33.338x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 33.338 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 34.925 mm Bolt Hole Size (G): 13.097 mm
Part Number: IP-154RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $496.23 AUD Regular price ~~$595.47 AUD~~ Sale price $496.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-154RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 33.338x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Sale IP-154RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 33.338x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Regular price $496.23 AUD Regular price ~~$595.47 AUD~~ Sale price $496.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 34.925x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 34.925 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm	Housing Height (D) 34.925 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 13.097 mm
Part Number: IP-155RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 34.925x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 34.925 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 34.925 mm Bolt Hole Size (G): 13.097 mm
Part Number: IP-155RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-155RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 34.925x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Sale IP-155RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 34.925x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 35x16x118 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 35.000 mm	Base Height (C) 16.000 mm	Length (A) 118.000 mm	Overall Height (E) 46.800 mm	Housing Height (D) 35.000 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 13.000 mm
Part Number: IP-156RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $496.23 AUD Regular price ~~$595.47 AUD~~ Sale price $496.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 35x16x118 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 35.000 mm	Base Height (C) 16.000 mm	Length (A) 118.000 mm	Overall Height (E) 46.800 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 35.000 mm Bolt Hole Size (G): 13.000 mm
Part Number: IP-156RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $496.23 AUD Regular price ~~$595.47 AUD~~ Sale price $496.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-156RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 35x16x118 mm Rigid - Thermoplastic and Stainless Steel Sale IP-156RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 35x16x118 mm Rigid - Thermoplastic and Stainless Steel Regular price $496.23 AUD Regular price ~~$595.47 AUD~~ Sale price $496.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 36.513x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 36.513 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm	Housing Height (D) 34.925 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 13.097 mm
Part Number: IP-157RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 36.513x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 36.513 mm	Base Height (C) 15.875 mm	Length (A) 118.262 mm	Overall Height (E) 41.275 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 34.925 mm Bolt Hole Size (G): 13.097 mm
Part Number: IP-157RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-157RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 36.513x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Sale IP-157RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 36.513x15.875x118.262 mm Rigid - Thermoplastic and Stainless Steel Regular price $481.86 AUD Regular price ~~$578.24 AUD~~ Sale price $481.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 38.1x15.875x130.175 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 38.100 mm	Base Height (C) 15.875 mm	Length (A) 130.175 mm	Overall Height (E) 53.181 mm	Housing Height (D) 37.306 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 13.097 mm
Part Number: IP-158RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $555.23 AUD Regular price ~~$666.27 AUD~~ Sale price $555.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 38.1x15.875x130.175 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 38.100 mm	Base Height (C) 15.875 mm	Length (A) 130.175 mm	Overall Height (E) 53.181 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 37.306 mm Bolt Hole Size (G): 13.097 mm
Part Number: IP-158RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $555.23 AUD Regular price ~~$666.27 AUD~~ Sale price $555.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-158RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 38.1x15.875x130.175 mm Rigid - Thermoplastic and Stainless Steel Sale IP-158RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 38.1x15.875x130.175 mm Rigid - Thermoplastic and Stainless Steel Regular price $555.23 AUD Regular price ~~$666.27 AUD~~ Sale price $555.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Flanged 4 Bolt Housing and Bearing Assembly - 40x17x130 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 40.000 mm	Base Height (C) 17.000 mm	Length (A) 130.000 mm	Overall Height (E) 53.200 mm	Housing Height (D) 37.000 mm
Material: Thermoplastic and Stainless Steel Bolt Hole Size (G): 14.000 mm
Part Number: IP-159RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $573.86 AUD Regular price ~~$688.64 AUD~~ Sale price $573.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Flanged 4 Bolt Housing and Bearing Assembly - 40x17x130 mm Rigid - Thermoplastic and Stainless Steel
Nominal Shaft Size 40.000 mm	Base Height (C) 17.000 mm	Length (A) 130.000 mm	Overall Height (E) 53.200 mm
Material: Thermoplastic and Stainless Steel Housing Height (D): 37.000 mm Bolt Hole Size (G): 14.000 mm
Part Number: IP-159RS (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jun 27, 2026 Regular price $573.86 AUD Regular price ~~$688.64 AUD~~ Sale price $573.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
IP-159RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 40x17x130 mm Rigid - Thermoplastic and Stainless Steel Sale IP-159RS (Each) --- Flanged 4 Bolt Housing and Bearing Assembly - 40x17x130 mm Rigid - Thermoplastic and Stainless Steel Regular price $573.86 AUD Regular price ~~$688.64 AUD~~ Sale price $573.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Housing and Bearing Assembly - Flanged 4 Bolt - Rigid - Plastic and Stainless

Category Details

Filter

Filter

Subscribe to our emails
