Gears - Spur - Hubbed - Module 1 - Plastic with Insert

Gears -> Spur -> Hubbed -> Module 1 -> Plastic with Insert

There is only 1 product in the sub-categories of Gears - Spur - Hubbed - Module 1 - Plastic with Insert. Browse the Gears - Spur - Hubbed - Module 1 - Plastic with Insert products table.

Category Details

A selection of Plastic with Insert Module 1 Hubbed Spur Gears. PCD in mm = No. of Teeth. 20 Degree Pressure Angle

  • There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
  • Be sure to match the pitch type and tooth angle when selecting spur gears.
  • An expanded range may be available on special order. Please enquire.
  • The diameter increases by 1mm per tooth
  • Module 1. Approximately 3.14mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Hubbed - Module 1 - Plastic with Insert category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative

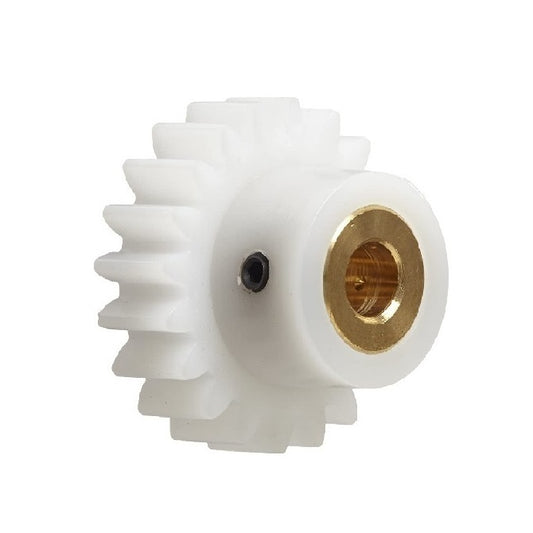

Spur Gears - 24 tooth - 24x8 mm Hubbed - Acetal - Brass Insert Gear
Number of Teeth
24
Pitch Circle Diameter (PD)
24.00
mm
Bore (d)
8.000
mm
Outside Diameter (OD)
26.000
mm
Face Width (FW)
9.000
mm
Type
Hubbed
Spur Gears - 24 tooth - 24x8 mm Hubbed - Acetal - Brass Insert Gear
Material: Acetal - Brass Insert    Hub Diameter (D1): 15.00 mm    Hub Projection (HL): 8.50 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G024B-024-M1-090-080-A-B-GD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Spur Gears - 24 tooth - 24x8 mm Hubbed - Acetal - Brass Insert Gear
Number of Teeth
24
Pitch Circle Diameter (PD)
24.00
mm
Bore (d)
8.000
mm
Outside Diameter (OD)
26.000
mm
Spur Gears - 24 tooth - 24x8 mm Hubbed - Acetal - Brass Insert Gear
Material: Acetal - Brass Insert    Face Width (FW): 9.000 mm    Type: Hubbed    Hub Diameter (D1): 15.00 mm    Hub Projection (HL): 8.50 mm    Locking Method: Set Screw    Quality: Commercial - Molded
Part Number: G024B-024-M1-090-080-A-B-GD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
