Gears - Spur - Hubbed - 48DP - 20 Degree - Stainless

Gears -> Spur -> Hubbed -> 48DP -> 20 Degree -> Stainless

There are 3 products in the sub-categories of Gears - Spur - Hubbed - 48DP - 20 Degree - Stainless. Browse the Gears - Spur - Hubbed - 48DP - 20 Degree - Stainless products table.

Category Details

A selection of Stainless 20 Degree 48DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.5292 (1/48 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.

  • There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
  • Be sure to match the pitch type and tooth angle when selecting spur gears.
  • An expanded range may be available on special order. Please enquire.
  • The diameter increases by 1 inch for every 48 teeth
  • 48 Diametrical Pitch. Approx 1.66mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Hubbed - 48DP - 20 Degree - Stainless category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Spur Gears - 30 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
30
Pitch Circle Diameter (PD)
15.875
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
17.02
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 30 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G016B-030-D48-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Fri, Sep 04, 2026
$35.14 AUD
$42.16 AUD $35.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Spur Gears - 30 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
30
Pitch Circle Diameter (PD)
15.875
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
17.02
mm
Spur Gears - 30 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G016B-030-D48-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Fri, Sep 04, 2026
$35.14 AUD
$42.16 AUD $35.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.

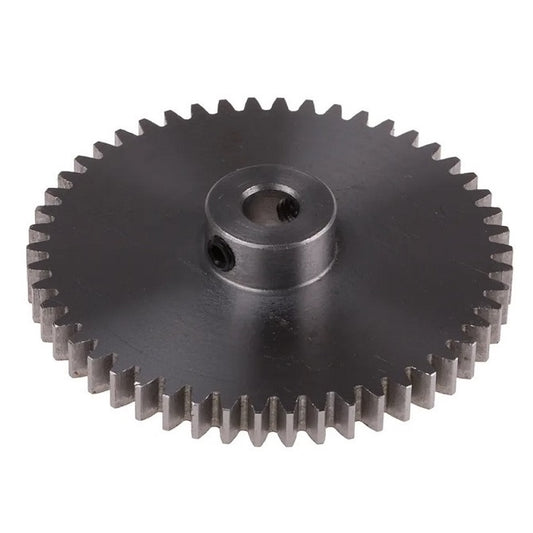

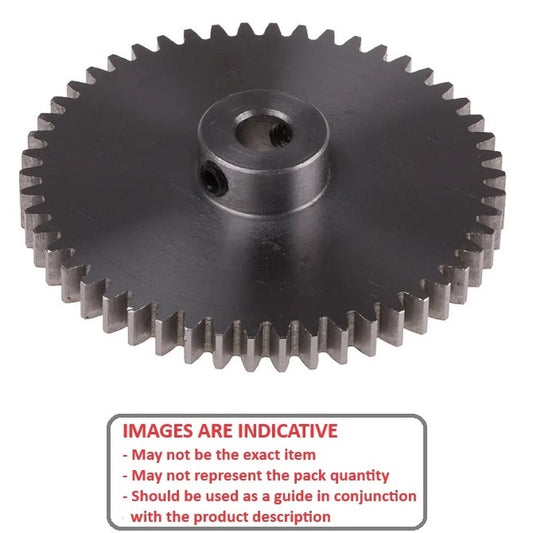

Spur Gears - 48 tooth - 25.4x4.762 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
48
Pitch Circle Diameter (PD)
25.40
mm
Bore (d)
4.762
mm
Outside Diameter (OD)
26.449
mm
Face Width (FW)
3.18
mm
Type
Hubbed
Spur Gears - 48 tooth - 25.4x4.762 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Hub Diameter (D1): 9.53 mm    Hub Projection (HL): 5.54 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G025B-048-D48-032-048-S3-G (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Oct 13, 2026
$117.14 AUD
$117.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Spur Gears - 48 tooth - 25.4x4.762 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
48
Pitch Circle Diameter (PD)
25.40
mm
Bore (d)
4.762
mm
Outside Diameter (OD)
26.449
mm
Spur Gears - 48 tooth - 25.4x4.762 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Face Width (FW): 3.18 mm    Type: Hubbed    Hub Diameter (D1): 9.53 mm    Hub Projection (HL): 5.54 mm    Locking Method: Set Screw    Quality: AGMA Q10
Part Number: G025B-048-D48-032-048-S3-G (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Oct 13, 2026
$117.14 AUD
$117.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Spur Gears - 48 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
48
Pitch Circle Diameter (PD)
25.400
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
26.42
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 48 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G025B-048-D48-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Fri, Sep 04, 2026
$42.05 AUD
$50.45 AUD $42.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Spur Gears - 48 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
48
Pitch Circle Diameter (PD)
25.400
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
26.42
mm
Spur Gears - 48 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G025B-048-D48-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Fri, Sep 04, 2026
$42.05 AUD
$50.45 AUD $42.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
