Gears - Spur - Hubbed - 24DP - 20 Degree - Stainless

Gears -> Spur -> Hubbed -> 24DP -> 20 Degree -> Stainless

There are 8 products in the sub-categories of Gears - Spur - Hubbed - 24DP - 20 Degree - Stainless. Browse the Gears - Spur - Hubbed - 24DP - 20 Degree - Stainless products table.

Category Details

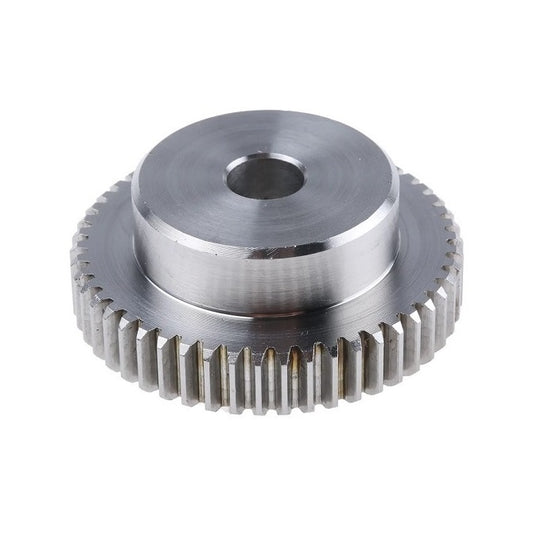

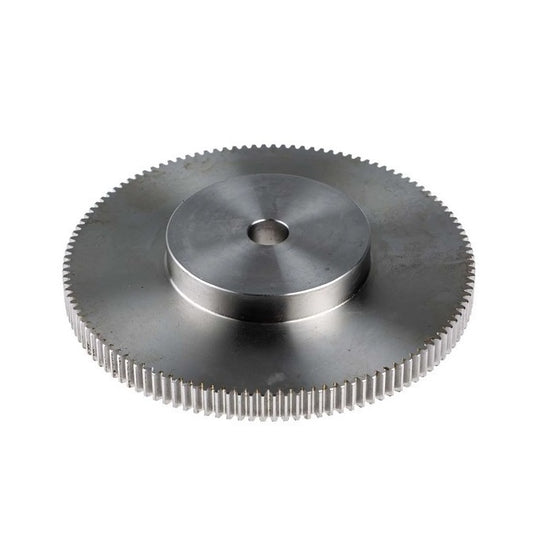

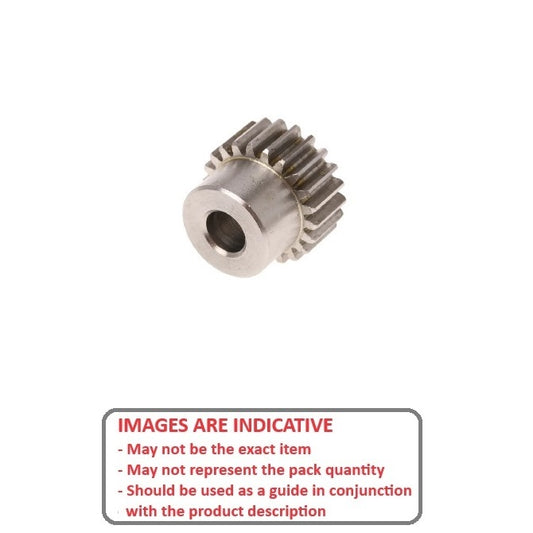

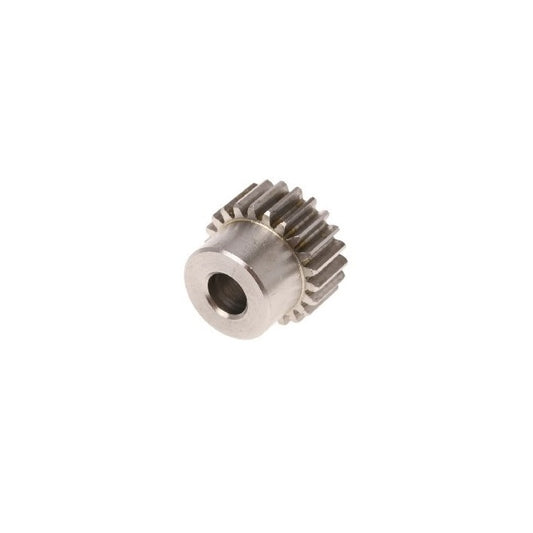

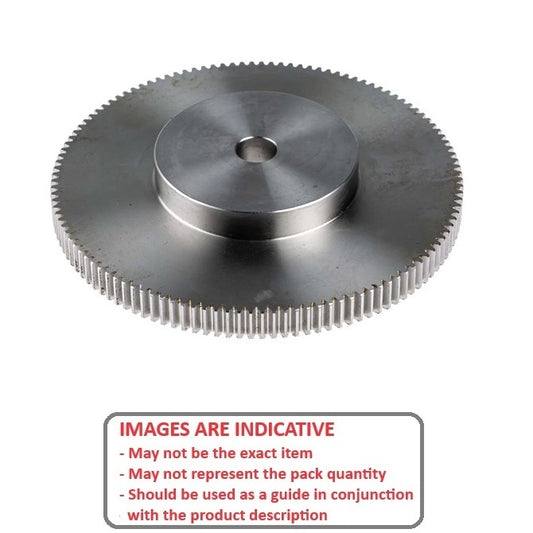

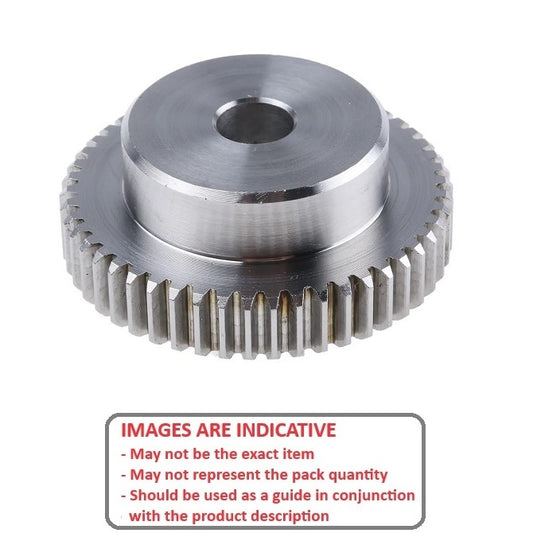

A selection of Stainless 20 Degree 24DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 1.05833 (1/24 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.

  • There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
  • Be sure to match the pitch type and tooth angle when selecting spur gears.
  • An expanded range may be available on special order. Please enquire.
  • The diameter increases by 1 inch for every 24 teeth
  • 24 Diametrical Pitch. Approx 3.33mm between the teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Spur - Hubbed - 24DP - 20 Degree - Stainless category on the Small Parts & Bearings online store.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Face Width (FW) Type Indicative
Spur Gears - 15 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
15
Pitch Circle Diameter (PD)
15.875
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
18.03
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 15 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G016B-015-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$28.77 AUD
$34.53 AUD $28.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Number of Teeth Pitch Circle Diameter (PD) Bore (d) Outside Diameter (OD) Indicative
Spur Gears - 15 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
15
Pitch Circle Diameter (PD)
15.875
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
18.03
mm
Spur Gears - 15 tooth - 15.875x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G016B-015-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$28.77 AUD
$34.53 AUD $28.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Spur Gears - 18 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
18
Pitch Circle Diameter (PD)
19.050
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
21.08
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 18 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G019B-018-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$33.14 AUD
$39.76 AUD $33.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Spur Gears - 18 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
18
Pitch Circle Diameter (PD)
19.050
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
21.08
mm
Spur Gears - 18 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G019B-018-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$33.14 AUD
$39.76 AUD $33.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Spur Gears - 24 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
24
Pitch Circle Diameter (PD)
19.050
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
20.65
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 24 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G019B-024-D32-032-064-S3 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 25, 2026
$46.23 AUD
$55.47 AUD $46.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Spur Gears - 24 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
24
Pitch Circle Diameter (PD)
19.050
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
20.65
mm
Spur Gears - 24 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G019B-024-D32-032-064-S3 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 25, 2026
$46.23 AUD
$55.47 AUD $46.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Spur Gears - 24 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
24
Pitch Circle Diameter (PD)
25.400
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
21.08
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 24 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G025B-024-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$33.23 AUD
$39.87 AUD $33.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Spur Gears - 24 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
24
Pitch Circle Diameter (PD)
25.400
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
21.08
mm
Spur Gears - 24 tooth - 25.4x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G025B-024-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$33.23 AUD
$39.87 AUD $33.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
30
Pitch Circle Diameter (PD)
31.750
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
33.86
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G032B-030-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$43.23 AUD
$51.87 AUD $43.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
30
Pitch Circle Diameter (PD)
31.750
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
33.86
mm
Spur Gears - 30 tooth - 31.75x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G032B-030-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$43.23 AUD
$51.87 AUD $43.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
36
Pitch Circle Diameter (PD)
38.100
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
21.08
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G038B-036-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$44.59 AUD
$53.51 AUD $44.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
36
Pitch Circle Diameter (PD)
38.100
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
21.08
mm
Spur Gears - 36 tooth - 38.1x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G038B-036-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$44.59 AUD
$53.51 AUD $44.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Spur Gears - 48 tooth - 50.8x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
48
Pitch Circle Diameter (PD)
50.800
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
52.83
mm
Face Width (FW)
4.78
mm
Type
Hubbed
Spur Gears - 48 tooth - 50.8x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G051B-048-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$58.59 AUD
$70.31 AUD $58.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Spur Gears - 48 tooth - 50.8x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
48
Pitch Circle Diameter (PD)
50.800
mm
Bore (d)
6.350
mm
Outside Diameter (OD)
52.83
mm
Spur Gears - 48 tooth - 50.8x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 4.78 mm    Type: Hubbed    Hub Diameter (D1): 12.70 mm    Hub Projection (HL): 6.4 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G051B-048-D24-032-064-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$58.59 AUD
$70.31 AUD $58.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Spur Gears - 60 tooth - 57.15x7.938 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
60
Pitch Circle Diameter (PD)
57.150
mm
Bore (d)
7.938
mm
Outside Diameter (OD)
59.26
mm
Face Width (FW)
6.35
mm
Type
Hubbed
Spur Gears - 60 tooth - 57.15x7.938 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Hub Diameter (D1): 22.35 mm    Hub Projection (HL): 7.9 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G064B-060-D24-032-079-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$64.41 AUD
$77.29 AUD $64.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Spur Gears - 60 tooth - 57.15x7.938 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Number of Teeth
60
Pitch Circle Diameter (PD)
57.150
mm
Bore (d)
7.938
mm
Outside Diameter (OD)
59.26
mm
Spur Gears - 60 tooth - 57.15x7.938 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
Material: Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80    Face Width (FW): 6.35 mm    Type: Hubbed    Hub Diameter (D1): 22.35 mm    Hub Projection (HL): 7.9 mm    Locking Method: Pin Hub - No Set Screw    Quality: AGMA Q10
Part Number: G064B-060-D24-032-079-S3 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 25, 2026
$64.41 AUD
$77.29 AUD $64.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
