Collection: Gears - Spur - Hubbed - 24DP - 14.5 Degree
Gears -> Spur -> Hubbed -> 24DP -> 14.5 DegreeThere are 6 products in the sub-categories of Gears - Spur - Hubbed - 24DP - 14.5 Degree. Browse the Gears - Spur - Hubbed - 24DP - 14.5 Degree products table. To narrow down the selection, please choose a sub-category from the links below.

Gears - Spur - Hubbed - 24DP - 14.5 Degree - Brass
A selection of Brass 14.5 Degree 24DP Hubbed Spur Gears. PCD in...

Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel
A selection of Steel 14.5 Degree 24DP Hubbed Spur Gears. PCD in...
Category Details
This category includes various types of spur gears.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Gears - Spur - Hubbed - 24DP - 14.5 Degree category on the Small Parts & Bearings online store.
Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) | Face Width (FW) | Type |
Indicative Image |
---|---|---|---|---|---|---|
Number of Teeth
12
|
Pitch Circle Diameter (PD)
12.700
mm (Equiv. 0.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
14.808
mm |
Face Width (FW)
6.350
mm |
Type
Hubbed
|
![]() |
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 9.144 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G013B-012-V24-064-064-CG
Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$93.23 AUD
Regular price
Unit price
/
per
Each
|
||||||
Number of Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) |
Indicative Image |
||
Number of Teeth
12
|
Pitch Circle Diameter (PD)
12.700
mm (Equiv. 0.5 in.) |
Bore (d)
6.350
mm (Equiv. 0.25 in.) |
Outside Diameter (OD)
14.808
mm |
![]() |
||
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 6.350 mm
Type: Hubbed
Hub Diameter (D1): 9.144 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G013B-012-V24-064-064-CG
Spur Gears - 12 tooth - 12.7x6.35 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$93.23 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
||||||
Number of Teeth
16
|
Pitch Circle Diameter (PD)
16.942
mm (Equiv. 0.667 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
19.050
mm |
Face Width (FW)
6.350
mm |
Type
Hubbed
|
![]() |
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 13.716 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G017B-016-V24-064-079-CG
Spur Gears - 16 tooth - 16.942x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$115.59 AUD
Regular price
Unit price
/
per
Each
|
||||||
Number of Teeth
16
|
Pitch Circle Diameter (PD)
16.942
mm (Equiv. 0.667 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
19.050
mm |
![]() |
||
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 6.350 mm
Type: Hubbed
Hub Diameter (D1): 13.716 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G017B-016-V24-064-079-CG
Spur Gears - 16 tooth - 16.942x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$115.59 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
||||||
Number of Teeth
18
|
Pitch Circle Diameter (PD)
19.05
mm (Equiv. 0.75 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
21.158
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
![]() |
Material: Brass
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.35 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Brass |
||||||
Part Number: G019B-018-V24-064-048-B-P
Spur Gears - 18 tooth - 19.05x4.762 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
/
per
Each
|
||||||
Number of Teeth
18
|
Pitch Circle Diameter (PD)
19.05
mm (Equiv. 0.75 in.) |
Bore (d)
4.762
mm (Equiv. 0.187 in.) |
Outside Diameter (OD)
21.158
mm |
![]() |
||
Material: Brass
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 12.70 mm
Hub Projection (HL): 6.35 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Brass |
||||||
Part Number: G019B-018-V24-064-048-B-P
Spur Gears - 18 tooth - 19.05x4.762 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
||||||
Number of Teeth
20
|
Pitch Circle Diameter (PD)
21.158
mm (Equiv. 0.833 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
23.266
mm |
Face Width (FW)
6.350
mm |
Type
Hubbed
|
![]() |
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 17.780 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G021B-020-V24-064-079-CG
Spur Gears - 20 tooth - 21.158x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$113.77 AUD
Regular price
Unit price
/
per
Each
|
||||||
Number of Teeth
20
|
Pitch Circle Diameter (PD)
21.158
mm (Equiv. 0.833 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
23.266
mm |
![]() |
||
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 6.350 mm
Type: Hubbed
Hub Diameter (D1): 17.780 mm
Hub Projection (HL): 7.874 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G021B-020-V24-064-079-CG
Spur Gears - 20 tooth - 21.158x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$113.77 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
||||||
Number of Teeth
24
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
9.525
mm (Equiv. 0.375 in.) |
Outside Diameter (OD)
27.508
mm |
Face Width (FW)
6.350
mm |
Type
Hubbed
|
![]() |
Material: Steel 0.20 carbon steel with no subsequent treatment
Hub Diameter (D1): 22.098 mm
Hub Projection (HL): 9.652 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G025B-024-V24-064-095-CG
Spur Gears - 24 tooth - 25.4x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$132.95 AUD
Regular price
Unit price
/
per
Each
|
||||||
Number of Teeth
24
|
Pitch Circle Diameter (PD)
25.400
mm (Equiv. 1 in.) |
Bore (d)
9.525
mm (Equiv. 0.375 in.) |
Outside Diameter (OD)
27.508
mm |
![]() |
||
Material: Steel 0.20 carbon steel with no subsequent treatment
Face Width (FW): 6.350 mm
Type: Hubbed
Hub Diameter (D1): 22.098 mm
Hub Projection (HL): 9.652 mm
Locking Method: Set Screw
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Steel |
||||||
Part Number: G025B-024-V24-064-095-CG
Spur Gears - 24 tooth - 25.4x9.525 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$132.95 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
||||||

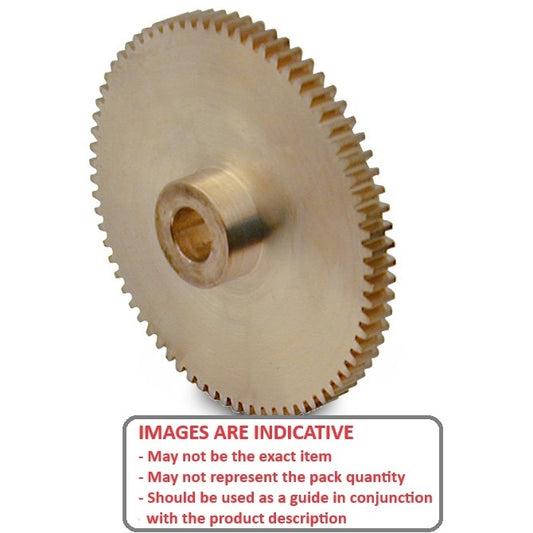

Number of Teeth
54
|
Pitch Circle Diameter (PD)
57.15
mm (Equiv. 2.25 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
59.258
mm |
Face Width (FW)
6.35
mm |
Type
Hubbed
|
![]() |
Material: Brass
Hub Diameter (D1): 17.46 mm
Hub Projection (HL): 7.94 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Brass |
||||||
Part Number: G057B-054-V24-064-079-B-P
Spur Gears - 54 tooth - 57.15x7.938 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
/
per
Each
|
||||||
Number of Teeth
54
|
Pitch Circle Diameter (PD)
57.15
mm (Equiv. 2.25 in.) |
Bore (d)
7.938
mm (Equiv. 0.313 in.) |
Outside Diameter (OD)
59.258
mm |
![]() |
||
Material: Brass
Face Width (FW): 6.35 mm
Type: Hubbed
Hub Diameter (D1): 17.46 mm
Hub Projection (HL): 7.94 mm
Locking Method: None
Category: Gears - Spur - Hubbed - 24DP - 14.5 Degree - Brass |
||||||
Part Number: G057B-054-V24-064-079-B-P
Spur Gears - 54 tooth - 57.15x7.938 mm Hubbed - Brass Gear 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$25.00 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
