Collection: Gears - Rack - Metric - Module 0.75 Brass

Gears -> Rack -> Metric -> Module 0.75 Brass

There are 4 products in the sub-categories of Gears - Rack - Metric - Module 0.75 Brass. Browse the Gears - Rack - Metric - Module 0.75 Brass products table.

Category Details

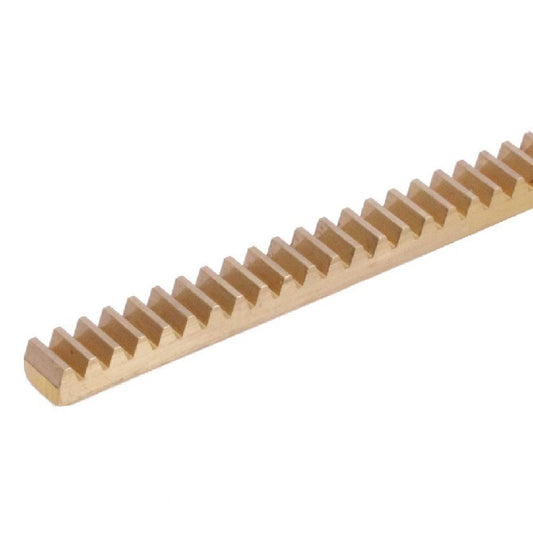

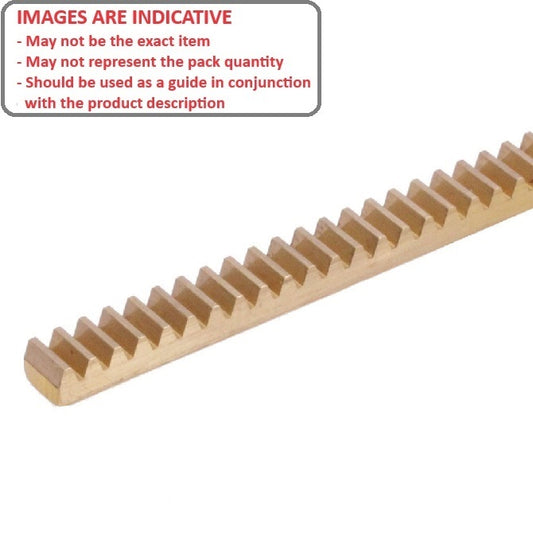

A selection of Module 0.75 Brass Metric Rack Gears. 20 Degree Pressure Angle

Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
An expanded range may be available on special order. Please enquire.
Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spur Gears

A more concise listing may be found in the Gears - Rack - Metric - Module 0.75 Brass category on the Small Parts & Bearings online store.

Length (L)	Face Width (fw)	Height (h)	Pitch Type	Pitch Height (ph)	Pressure Angle
Length (L) 200 mm (Equiv. 7.874 in.)	Face Width (fw) 3.000 mm (Equiv. 0.118 in.)	Height (h) 8.000 mm (Equiv. 0.315 in.)	Pitch Type Module 0.75		Pressure Angle 20 °
Material: Brass Precision: ISO CuZn39Pb3
Part Number: RK75B2-0308 Rack Gears - 200x3x8 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $45.59 AUD Regular price Sale price $45.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Length (L)	Face Width (fw)	Height (h)	Pitch Type	Indicative Image
Length (L) 200 mm (Equiv. 7.874 in.)	Face Width (fw) 3.000 mm (Equiv. 0.118 in.)	Height (h) 8.000 mm (Equiv. 0.315 in.)	Pitch Type Module 0.75
Material: Brass Pressure Angle: 20 ° Precision: ISO CuZn39Pb3
Part Number: RK75B2-0308 Rack Gears - 200x3x8 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $45.59 AUD Regular price Sale price $45.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RK75B2-0308 --- Rack Gears - 200x3x8 mm Metric - Brass RK75B2-0308 --- Rack Gears - 200x3x8 mm Metric - Brass Regular price $45.59 AUD Regular price Sale price $45.59 AUD Unit price per Out of stock! Backorder Now
Length (L) 200 mm (Equiv. 7.874 in.)	Face Width (fw) 8.000 mm (Equiv. 0.315 in.)	Height (h) 8.000 mm (Equiv. 0.315 in.)	Pitch Type Module 0.75		Pressure Angle 20 °
Material: Brass Precision: ISO CuZn39Pb3
Part Number: RK75B2-0808 Rack Gears - 200x8x8 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $76.77 AUD Regular price ~~$92.13 AUD~~ Sale price $76.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Length (L) 200 mm (Equiv. 7.874 in.)	Face Width (fw) 8.000 mm (Equiv. 0.315 in.)	Height (h) 8.000 mm (Equiv. 0.315 in.)	Pitch Type Module 0.75
Material: Brass Pressure Angle: 20 ° Precision: ISO CuZn39Pb3
Part Number: RK75B2-0808 Rack Gears - 200x8x8 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $76.77 AUD Regular price ~~$92.13 AUD~~ Sale price $76.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RK75B2-0808 --- Rack Gears - 200x8x8 mm Metric - Brass Sale RK75B2-0808 --- Rack Gears - 200x8x8 mm Metric - Brass Regular price $76.77 AUD Regular price ~~$92.13 AUD~~ Sale price $76.77 AUD Unit price per Out of stock! Backorder Now Sale
Length (L) 505 mm (Equiv. 19.882 in.)	Face Width (fw) 3.000 mm (Equiv. 0.118 in.)	Height (h) 10.000 mm (Equiv. 0.394 in.)	Pitch Type Module 0.75		Pressure Angle 20 °
Material: Brass Precision: ISO CuZn39Pb3
Part Number: RK75B5-0310 Rack Gears - 505x3x10 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $85.41 AUD Regular price ~~$102.49 AUD~~ Sale price $85.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Length (L) 505 mm (Equiv. 19.882 in.)	Face Width (fw) 3.000 mm (Equiv. 0.118 in.)	Height (h) 10.000 mm (Equiv. 0.394 in.)	Pitch Type Module 0.75
Material: Brass Pressure Angle: 20 ° Precision: ISO CuZn39Pb3
Part Number: RK75B5-0310 Rack Gears - 505x3x10 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $85.41 AUD Regular price ~~$102.49 AUD~~ Sale price $85.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RK75B5-0310 --- Rack Gears - 505x3x10 mm Metric - Brass Sale RK75B5-0310 --- Rack Gears - 505x3x10 mm Metric - Brass Regular price $85.41 AUD Regular price ~~$102.49 AUD~~ Sale price $85.41 AUD Unit price per Out of stock! Backorder Now Sale
Length (L) 505 mm (Equiv. 19.882 in.)	Face Width (fw) 8.000 mm (Equiv. 0.315 in.)	Height (h) 10.000 mm (Equiv. 0.394 in.)	Pitch Type Module 0.75		Pressure Angle 20 °
Material: Brass Precision: ISO CuZn39Pb3
Part Number: RK75B5-0810 Rack Gears - 505x8x10 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $176.59 AUD Regular price ~~$211.91 AUD~~ Sale price $176.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Length (L) 505 mm (Equiv. 19.882 in.)	Face Width (fw) 8.000 mm (Equiv. 0.315 in.)	Height (h) 10.000 mm (Equiv. 0.394 in.)	Pitch Type Module 0.75
Material: Brass Pressure Angle: 20 ° Precision: ISO CuZn39Pb3
Part Number: RK75B5-0810 Rack Gears - 505x8x10 mm Metric - Brass Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $176.59 AUD Regular price ~~$211.91 AUD~~ Sale price $176.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RK75B5-0810 --- Rack Gears - 505x8x10 mm Metric - Brass Sale RK75B5-0810 --- Rack Gears - 505x8x10 mm Metric - Brass Regular price $176.59 AUD Regular price ~~$211.91 AUD~~ Sale price $176.59 AUD Unit price per Out of stock! Backorder Now Sale
