Gears - Rack - Imperial - 8DP Steel

Gears -> Rack -> Imperial -> 8DP Steel

There are 2 products in the sub-categories of Gears - Rack - Imperial - 8DP Steel. Browse the Gears - Rack - Imperial - 8DP Steel products table.

Category Details

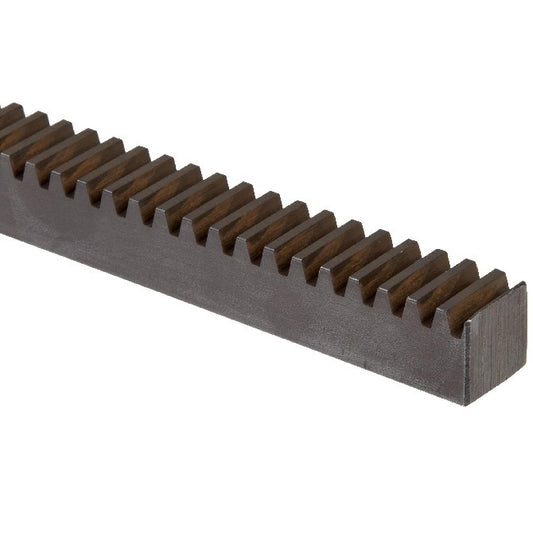

A selection of 8DP Steel Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.

  • Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
  • An expanded range may be available on special order. Please enquire.
  • Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
  • 8 DP. Approx 9.98mm between teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Rack - Imperial - 8DP Steel category on the Small Parts & Bearings online store.
Length (L) Face Width (fw) Height (h) Pitch Type Pitch Height (ph) Pressure Angle Indicative
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
31.75
mm

(Equiv. 1.25 in.)
Height (h)
19.050
mm

(Equiv. 0.75 in.)
Pitch Type
8DP - 14.5 PA
Pitch Height (ph)
15.875
mm
Pressure Angle
14.5 °
Rack Gears - 1219.2x31.75x19.05 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V8-32-1219-19-C
Rack Gears - 1219.2x31.75x19.05 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$1,327.41 AUD
$1,327.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L) Face Width (fw) Height (h) Pitch Type Indicative
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
31.75
mm

(Equiv. 1.25 in.)
Height (h)
19.050
mm

(Equiv. 0.75 in.)
Pitch Type
8DP - 14.5 PA
Rack Gears - 1219.2x31.75x19.05 mm - Steel
Material: Steel    Pitch Height (ph): 15.875 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V8-32-1219-19-C
Rack Gears - 1219.2x31.75x19.05 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$1,327.41 AUD
$1,327.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
31.75
mm

(Equiv. 1.25 in.)
Height (h)
31.750
mm

(Equiv. 1.25 in.)
Pitch Type
8DP - 14.5 PA
Pitch Height (ph)
28.575
mm
Pressure Angle
14.5 °
Rack Gears - 1219.2x31.75x31.75 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Square
Part Number: GR-V8-32-1219-32-C
Rack Gears - 1219.2x31.75x31.75 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$1,201.95 AUD
$1,442.35 AUD $1,201.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
31.75
mm

(Equiv. 1.25 in.)
Height (h)
31.750
mm

(Equiv. 1.25 in.)
Pitch Type
8DP - 14.5 PA
Rack Gears - 1219.2x31.75x31.75 mm - Steel
Material: Steel    Pitch Height (ph): 28.575 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Square
Part Number: GR-V8-32-1219-32-C
Rack Gears - 1219.2x31.75x31.75 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025
$1,201.95 AUD
$1,442.35 AUD $1,201.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
