Gears - Rack - Imperial - 64DP Stainless

Gears -> Rack -> Imperial -> 64DP Stainless

There is only 1 product in the sub-categories of Gears - Rack - Imperial - 64DP Stainless. Browse the Gears - Rack - Imperial - 64DP Stainless products table.

Category Details

A selection of 64DP Stainless Imperial Rack Gears. 20 Degree Pressure Angle. 416 stainless steel. DP stands for Diametrical Pitch imperial sizes.

  • Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
  • An expanded range may be available on special order. Please enquire.
  • Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
  • 64 DP. Approx 1.25mm between teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Rack - Imperial - 64DP Stainless category on the Small Parts & Bearings online store.
Length (L) Face Width (fw) Height (h) Pitch Type Pitch Height (ph) Pressure Angle Indicative

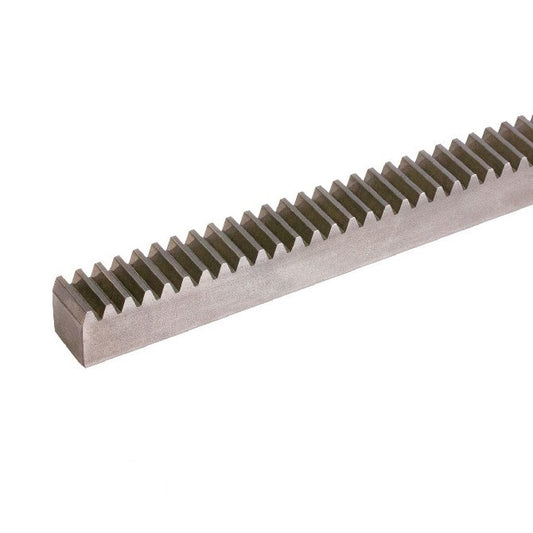

Rack Gears - 279.4x4.242x12.192 mm Imperial - Stainless Steel AISI 416 Rc 36-42
Length (L)
279.40
mm
Face Width (fw)
4.242
mm
Height (h)
12.192
mm
Pitch Type
64DP
Pitch Height (ph)
11.796
mm
Pressure Angle
20 °
Rack Gears - 279.4x4.242x12.192 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Precision: Precision    Mounting Holes: None    Shape: Rectangular
Part Number: GR-D64-04-0279-12-S41 (Each)
1 Available Now | Further orders can be expected around Sun, Sep 06, 2026
$184.59 AUD
$221.51 AUD $184.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Length (L) Face Width (fw) Height (h) Pitch Type Indicative
Rack Gears - 279.4x4.242x12.192 mm Imperial - Stainless Steel AISI 416 Rc 36-42
Length (L)
279.40
mm
Face Width (fw)
4.242
mm
Height (h)
12.192
mm
Pitch Type
64DP
Rack Gears - 279.4x4.242x12.192 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Pitch Height (ph): 11.796 mm    Pressure Angle: 20 °    Precision: Precision    Mounting Holes: None    Shape: Rectangular
Part Number: GR-D64-04-0279-12-S41 (Each)
1 Available Now | Further orders can be expected around Sun, Sep 06, 2026
$184.59 AUD
$221.51 AUD $184.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
