Gears - Rack - Imperial - 10DP

Gears -> Rack -> Imperial -> 10DP

There are 3 products in the sub-categories of Gears - Rack - Imperial - 10DP. Browse the Gears - Rack - Imperial - 10DP products table.

Category Details

A selection of 10DP Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.

  • Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
  • An expanded range may be available on special order. Please enquire.
  • Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
  • 10 DP. Approx 7.98mm between teeth.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Rack - Imperial - 10DP category on the Small Parts & Bearings online store.
Length (L) Face Width (fw) Height (h) Pitch Type Pitch Height (ph) Pressure Angle Indicative
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Pitch Height (ph)
13.335
mm
Pressure Angle
14.5 °

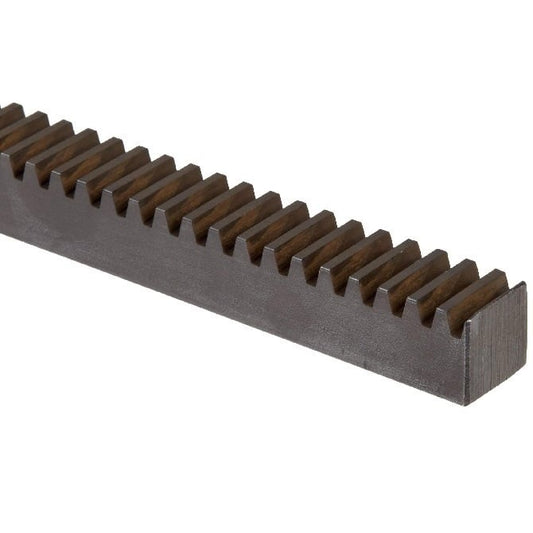

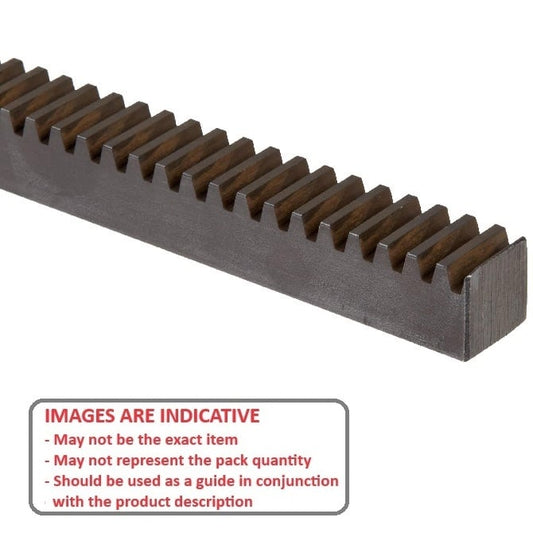

Rack Gears - 1219.2x25.4x15.875 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1219-16-C
Rack Gears - 1219.2x25.4x15.875 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025
$1,020.86 AUD
$1,020.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L) Face Width (fw) Height (h) Pitch Type Indicative
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Rack Gears - 1219.2x25.4x15.875 mm - Steel
Material: Steel    Pitch Height (ph): 13.335 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1219-16-C
Rack Gears - 1219.2x25.4x15.875 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025
$1,020.86 AUD
$1,020.86 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
25.400
mm

(Equiv. 1 in.)
Pitch Type
10DP - 14.5 PA
Pitch Height (ph)
22.860
mm
Pressure Angle
14.5 °
Rack Gears - 1219.2x25.4x25.4 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Square
Part Number: GR-V10-25-1219-25-C
Rack Gears - 1219.2x25.4x25.4 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025
$921.77 AUD
$1,106.13 AUD $921.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L)
1219.2
mm

(Equiv. 48 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
25.400
mm

(Equiv. 1 in.)
Pitch Type
10DP - 14.5 PA
Rack Gears - 1219.2x25.4x25.4 mm - Steel
Material: Steel    Pitch Height (ph): 22.860 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Square
Part Number: GR-V10-25-1219-25-C
Rack Gears - 1219.2x25.4x25.4 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025
$921.77 AUD
$1,106.13 AUD $921.77 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L)
1828.8
mm

(Equiv. 72 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Pitch Height (ph)
13.335
mm
Pressure Angle
14.5 °
Rack Gears - 1828.8x25.4x15.875 mm - Steel
Material: Steel    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1829-16-C
Rack Gears - 1828.8x25.4x15.875 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025
$1,151.50 AUD
$1,381.80 AUD $1,151.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Length (L)
1828.8
mm

(Equiv. 72 in.)
Face Width (fw)
25.4
mm

(Equiv. 1 in.)
Height (h)
15.875
mm

(Equiv. 0.625 in.)
Pitch Type
10DP - 14.5 PA
Rack Gears - 1828.8x25.4x15.875 mm - Steel
Material: Steel    Pitch Height (ph): 13.335 mm    Pressure Angle: 14.5 °    Mounting Holes: None    Shape: Rectangular
Part Number: GR-V10-25-1829-16-C
Rack Gears - 1828.8x25.4x15.875 mm Imperial - Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025
$1,151.50 AUD
$1,381.80 AUD $1,151.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
