Gears - Mitre - Module 1 - Plastic

Gears -> Mitre -> Module 1 -> Plastic

There is only 1 product in the sub-categories of Gears - Mitre - Module 1 - Plastic. Browse the Gears - Mitre - Module 1 - Plastic products table.

Category Details

A selection of Plastic Module 1 Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - Acetal.

  • An expanded range may be available on special order. Please enquire.
  • Mitre gears are used with a matching gear of the same pitch and number of teeth.
  • This provides a 1 to 1 ratio on a 90 Degree angle.
  • See Gears - Bevel for other ratios.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Mitre - Module 1 - Plastic category on the Small Parts & Bearings online store.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Sold Per Hub Diameter (hd) Indicative
Mitre Gears - 30 tooth - 30x6 mm Module 1 - Acetal - Commercial Gear
Number of Teeth
30

Pitch Diameter (pd)
30.000
mm

(Equiv. 1.181 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Overall Length (L)
15.300
mm
Hub Diameter (hd)
12.000 / No Set Screw
mm

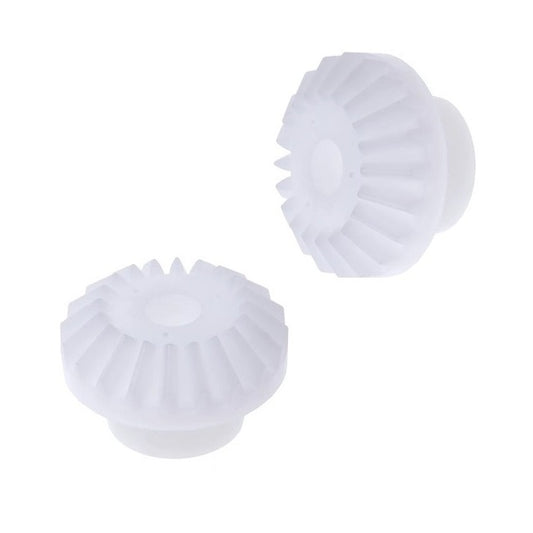

Mitre Gears - 30 tooth - 30x6 mm - Acetal - Commercial
Material: Acetal - Commercial    Hub Projection (F): 7.50 mm    Mounting Distance (C): 24.800 mm    Face Width (B): 7.200 mm
Deleted Item. Available while stocks last.
Part Number: GM-030-M1-060-A (PK-5)
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Indicative
Mitre Gears - 30 tooth - 30x6 mm Module 1 - Acetal - Commercial Gear
Number of Teeth
30

Pitch Diameter (pd)
30.000
mm

(Equiv. 1.181 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Overall Length (L)
15.300
mm

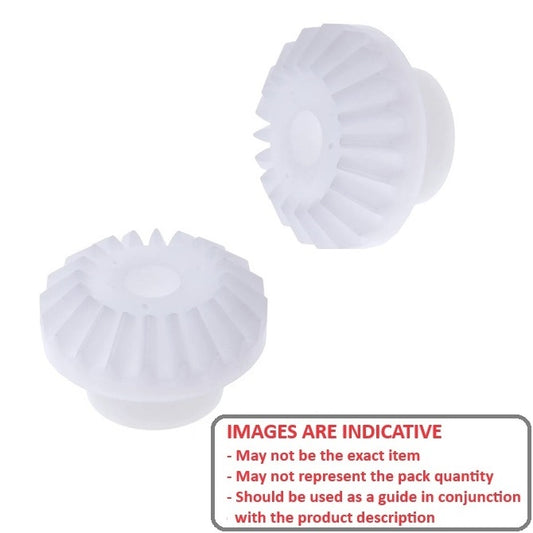

Mitre Gears - 30 tooth - 30x6 mm - Acetal - Commercial
Material: Acetal - Commercial    Hub Diameter (hd): 12.000 / No Set Screw mm    Hub Projection (F): 7.50 mm    Mounting Distance (C): 24.800 mm    Face Width (B): 7.200 mm
Deleted Item. Available while stocks last.
Part Number: GM-030-M1-060-A (PK-5)
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
