Gears - Mitre - Module 1 - Brass

Gears -> Mitre -> Module 1 -> Brass

There is only 1 product in the sub-categories of Gears - Mitre - Module 1 - Brass. Browse the Gears - Mitre - Module 1 - Brass products table.

Category Details

A selection of Brass Module 1 Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle

  • An expanded range may be available on special order. Please enquire.
  • Mitre gears are used with a matching gear of the same pitch and number of teeth.
  • This provides a 1 to 1 ratio on a 90 Degree angle.
  • See Gears - Bevel for other ratios.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Mitre - Module 1 - Brass category on the Small Parts & Bearings online store.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Sold Per Hub Diameter (hd) Indicative

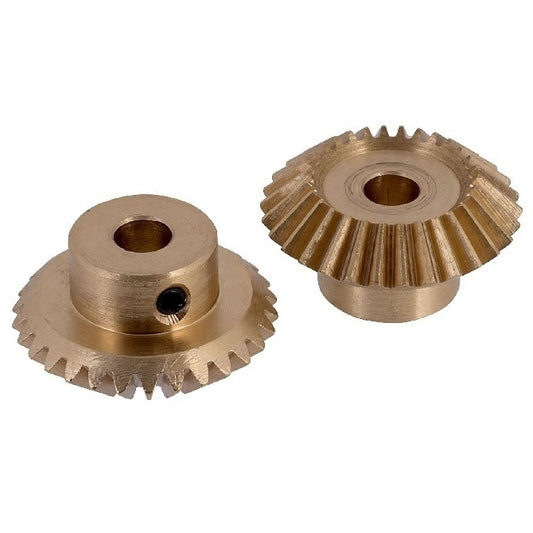

Mitre Gears - 20 tooth - 20x6 mm Module 1 - ISO 8 / Brass Gear
Number of Teeth
20

Pitch Diameter (pd)
20.000
mm

(Equiv. 0.787 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Overall Length (L)
14.000
mm
Hub Diameter (hd)
16.000 / No Set Screw
mm
Mitre Gears - 20 tooth - 20x6 mm - ISO 8 / Brass
Material: ISO 8 / Brass    Hub Projection (F): 8.50 mm    Mounting Distance (C): 20.500 mm    Face Width (B): 4.300 mm
Deleted Item. Available while stocks last.
Part Number: GM-020-M1-060-B (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Indicative

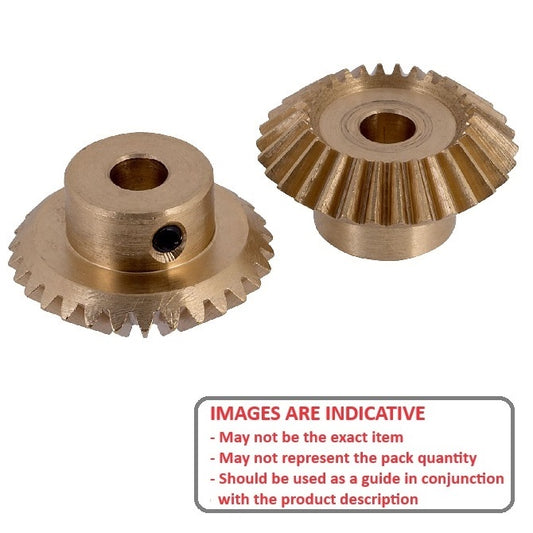

Mitre Gears - 20 tooth - 20x6 mm Module 1 - ISO 8 / Brass Gear
Number of Teeth
20

Pitch Diameter (pd)
20.000
mm

(Equiv. 0.787 in.)
Bore (d)
6.000
mm

(Equiv. 0.236 in.)
Overall Length (L)
14.000
mm
Mitre Gears - 20 tooth - 20x6 mm - ISO 8 / Brass
Material: ISO 8 / Brass    Hub Diameter (hd): 16.000 / No Set Screw mm    Hub Projection (F): 8.50 mm    Mounting Distance (C): 20.500 mm    Face Width (B): 4.300 mm
Deleted Item. Available while stocks last.
Part Number: GM-020-M1-060-B (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
