A selection of Steel Spiral Module 1.5 Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - 35 Degree Spiral tooth - Steel.

  • An expanded range may be available on special order. Please enquire.
  • A set of spiral mitre gears must be identical in module and number of teeth but opposite in spiral direction.
  • This provides a 1 to 1 ratio on a 90 Degree angle.
  • See Gears - Bevel for other ratios.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Mitre - Module 1.5 - Spiral - Steel category on the Small Parts & Bearings online store.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Direction Hub Diameter (hd) Indicative
Number of Teeth
20

Pitch Diameter (pd)
30
mm

(Equiv. 1.181 in.)
Bore (d)
10.000
mm
+0.015 / -0.000
(Equiv. 0.394 in.)
Overall Length (L)
18.430
mm
Direction
Right and Left Hand
Match Opposite Direction
Hub Diameter (hd)
24.000 / No set screw
mm
Mitre Gears - 20 tooth - 30 - 10.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Sold Per: Set of 2    Hub Projection (hp): 10.00 mm    Mounting Distance (md): 28.000 mm    Face Width (fw): 7.000 mm    Outside Diameter: 31.870 mm
Part Number: GM-S030S-M15-100-C8-N-B (Pair)
Mitre Gears - 20 tooth - 30x10 mm Module 1.5 - ISO CLASS 8 / Steel Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Per Pair
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Indicative
Number of Teeth
20

Pitch Diameter (pd)
30
mm

(Equiv. 1.181 in.)
Bore (d)
10.000
mm
+0.015 / -0.000
(Equiv. 0.394 in.)
Overall Length (L)
18.430
mm

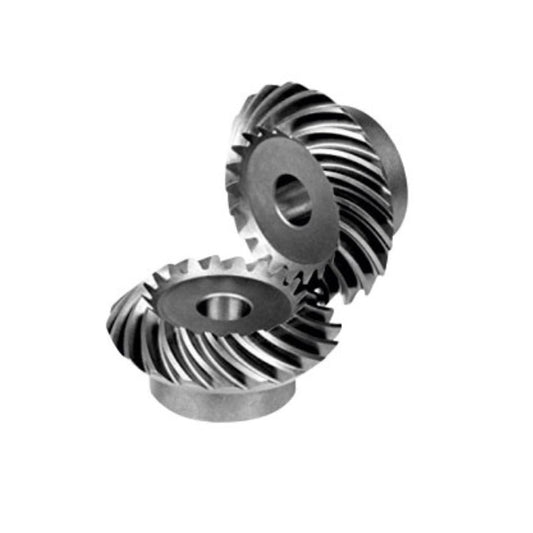

Mitre Gears - 20 tooth - 30 - 10.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Direction: Right and Left Hand Match Opposite Direction    Hub Diameter (hd): 24.000 / No set screw mm    Sold Per: Set of 2    Hub Projection (hp): 10.00 mm    Mounting Distance (md): 28.000 mm    Face Width (fw): 7.000 mm    Outside Diameter: 31.870 mm
Part Number: GM-S030S-M15-100-C8-N-B (Pair)
Mitre Gears - 20 tooth - 30x10 mm Module 1.5 - ISO CLASS 8 / Steel Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Per Pair
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
20

Pitch Diameter (pd)
30
mm

(Equiv. 1.181 in.)
Bore (d)
12.000
mm
+0.015 / -0.000
(Equiv. 0.472 in.)
Overall Length (L)
20.430
mm
Direction
Right and Left Hand
Match Opposite Direction
Hub Diameter (hd)
25.000 / With Set Screw and Keyway
mm

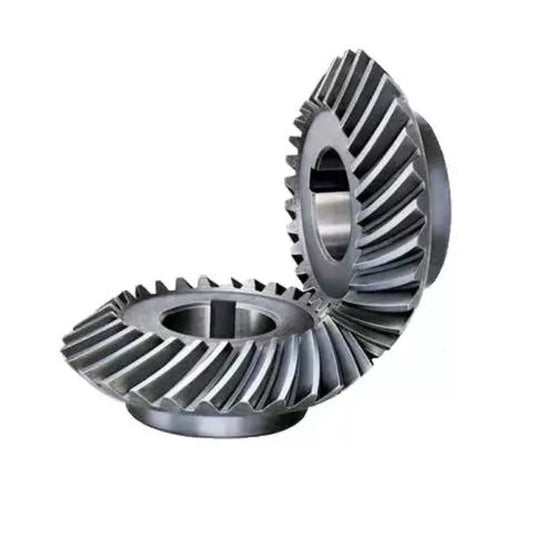

Mitre Gears - 20 tooth - 30 - 12.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Sold Per: Set of 2    Hub Projection (hp): 12.00 mm    Mounting Distance (md): 30.000 mm    Face Width (fw): 7.000 mm    Outside Diameter: 31.870 mm
Part Number: GM-S030S-M15-120-C8-GK (Pair)
Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO CLASS 8 / Steel Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$90.00 AUD
$171.00 AUD $90.00 AUD
Per Pair
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
20

Pitch Diameter (pd)
30
mm

(Equiv. 1.181 in.)
Bore (d)
12.000
mm
+0.015 / -0.000
(Equiv. 0.472 in.)
Overall Length (L)
20.430
mm
Mitre Gears - 20 tooth - 30 - 12.000 -+0.015 / -0.000- - ISO CLASS 8 / Steel
Material: ISO CLASS 8 / Steel    Direction: Right and Left Hand Match Opposite Direction    Hub Diameter (hd): 25.000 / With Set Screw and Keyway mm    Sold Per: Set of 2    Hub Projection (hp): 12.00 mm    Mounting Distance (md): 30.000 mm    Face Width (fw): 7.000 mm    Outside Diameter: 31.870 mm
Part Number: GM-S030S-M15-120-C8-GK (Pair)
Mitre Gears - 20 tooth - 30x12 mm Module 1.5 - ISO CLASS 8 / Steel Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$90.00 AUD
$171.00 AUD $90.00 AUD
Per Pair
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
