Gears - Mitre - 24DP Plastic

Gears -> Mitre -> 24DP Plastic

There is only 1 product in the sub-categories of Gears - Mitre - 24DP Plastic. Browse the Gears - Mitre - 24DP Plastic products table.

Category Details

A selection of 24DP Plastic Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - Nylon.

  • An expanded range may be available on special order. Please enquire.
  • Mitre gears are used with a matching gear of the same pitch and number of teeth.
  • This provides a 1 to 1 ratio on a 90 Degree angle.
  • See Gears - Bevel for other ratios.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Mitre - 24DP Plastic category on the Small Parts & Bearings online store.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Sold Per Hub Diameter (hd) Indicative

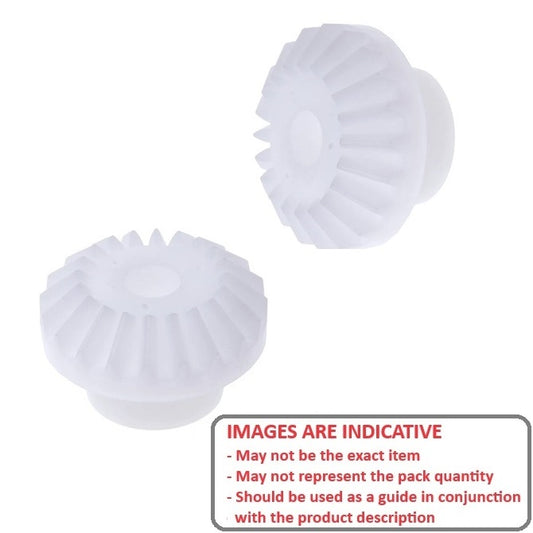

Mitre Gears - 36 tooth - 38.1x7.938 mm 24DP Plastic - Nylon - Commercial Gear
Number of Teeth
36

Pitch Diameter (pd)
38.100
mm

(Equiv. 1.5 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Overall Length (L)
15.479
mm
Hub Diameter (hd)
17.463 / No Set Screw
mm
Mitre Gears - 36 tooth - 38.1x7.938 mm - Nylon - Commercial
Material: Nylon - Commercial    Hub Projection (F): 7.94 mm    Mounting Distance (C): 30.162 mm    Face Width (B): 6.350 mm
Deleted Item. Available while stocks last.
Part Number: GM-S038-D24-079-N (Pair)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Per Pair
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Indicative

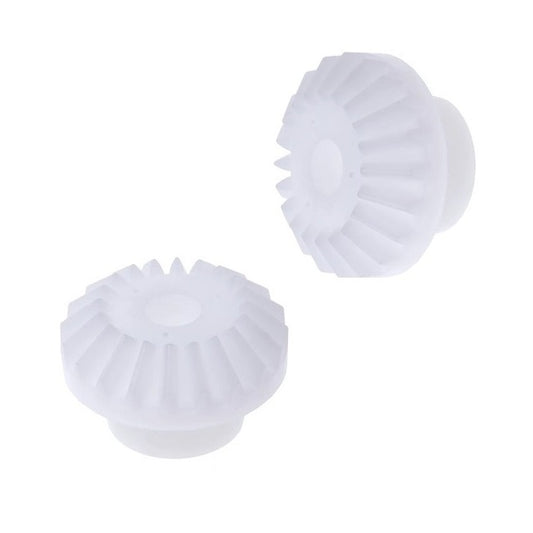

Mitre Gears - 36 tooth - 38.1x7.938 mm 24DP Plastic - Nylon - Commercial Gear
Number of Teeth
36

Pitch Diameter (pd)
38.100
mm

(Equiv. 1.5 in.)
Bore (d)
7.938
mm

(Equiv. 0.313 in.)
Overall Length (L)
15.479
mm
Mitre Gears - 36 tooth - 38.1x7.938 mm - Nylon - Commercial
Material: Nylon - Commercial    Hub Diameter (hd): 17.463 / No Set Screw mm    Hub Projection (F): 7.94 mm    Mounting Distance (C): 30.162 mm    Face Width (B): 6.350 mm
Deleted Item. Available while stocks last.
Part Number: GM-S038-D24-079-N (Pair)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Per Pair
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
