Collection: Gears - Mitre - 12DP Steel

Gears (With Images)

Mitre

5 Products in this selection

1:1 Ratio. 20 Degree Pressure Angle - Carbon steel

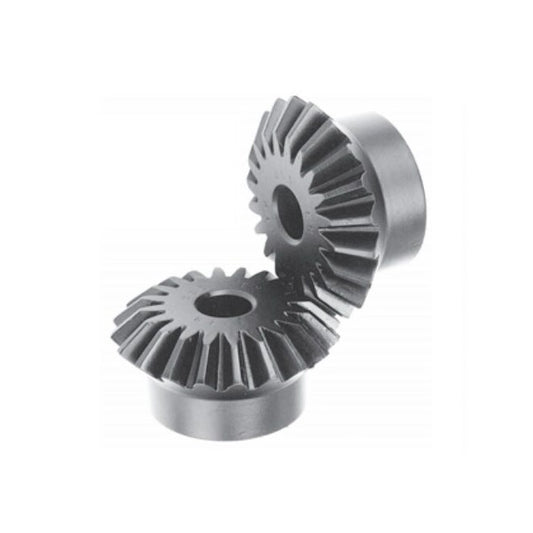

Mitre gears are used with a matching gear of the same pitch and number of teeth.
This provides a 1 to 1 ratio on a 90 Degree angle.
See Gears - Bevel for other ratios.

Additional resources:
Bevel Gears

A more concise listing may be found on the Smallparts store at Gears - Mitre - 12DP Steel. Smallparts promote the most popular MBA products.

Teeth	Pitch Diameter (pd)	Bore (d)	Overall Length (L)	Sold Per	Hub Diameter (hd)
Teeth 15	Pitch Diameter (pd) 31.750 mm _{(1.25 in.)}	Bore (d) 9.525 mm _{(0.375 in.)}	Overall Length (L) 21.946 mm		Hub Diameter (hd) 25.400 mm
Material: Steel Hub Projection (F): 12.700 mm Mounting Distance (C): 31.750 mm Face Width (B): 7.366 mm
Part Number: GM-032-D12-095-C Mitre Gears - 15 tooth - 31.75x9.525 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $156.50 AUD Regular price Sale price $156.50 AUD Unit price per Each
Teeth	Pitch Diameter (pd)	Bore (d)	Overall Length (L)	Indicative Image
Teeth 15	Pitch Diameter (pd) 31.750 mm _{(1.25 in.)}	Bore (d) 9.525 mm _{(0.375 in.)}	Overall Length (L) 21.946 mm
Material: Steel Hub Diameter (hd): 25.400 mm Hub Projection (F): 12.700 mm Mounting Distance (C): 31.750 mm Face Width (B): 7.366 mm
Part Number: GM-032-D12-095-C Mitre Gears - 15 tooth - 31.75x9.525 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $156.50 AUD Regular price Sale price $156.50 AUD Unit price per Each View the product page first if you are unsure.
GM-032-D12-095-C --- Mitre Gears - 15 tooth - 31.75x9.525 mm - Steel GM-032-D12-095-C --- Mitre Gears - 15 tooth - 31.75x9.525 mm - Steel Regular price $156.50 AUD Regular price Sale price $156.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Pitch Diameter (pd) 31.750 mm _{(1.25 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Overall Length (L) 21.946 mm		Hub Diameter (hd) 25.400 mm
Material: Steel Hub Projection (F): 12.700 mm Mounting Distance (C): 31.750 mm Face Width (B): 7.366 mm
Part Number: GM-032-D12-127-C Mitre Gears - 15 tooth - 31.75x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $151.14 AUD Regular price Sale price $151.14 AUD Unit price per Each
Teeth 15	Pitch Diameter (pd) 31.750 mm _{(1.25 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Overall Length (L) 21.946 mm
Material: Steel Hub Diameter (hd): 25.400 mm Hub Projection (F): 12.700 mm Mounting Distance (C): 31.750 mm Face Width (B): 7.366 mm
Part Number: GM-032-D12-127-C Mitre Gears - 15 tooth - 31.75x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $151.14 AUD Regular price Sale price $151.14 AUD Unit price per Each View the product page first if you are unsure.
GM-032-D12-127-C --- Mitre Gears - 15 tooth - 31.75x12.7 mm - Steel GM-032-D12-127-C --- Mitre Gears - 15 tooth - 31.75x12.7 mm - Steel Regular price $151.14 AUD Regular price Sale price $151.14 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Diameter (pd) 38.100 mm _{(1.5 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Overall Length (L) 25.933 mm		Hub Diameter (hd) 31.750 mm
Material: Steel Hub Projection (F): 16.002 mm Mounting Distance (C): 38.100 mm Face Width (B): 8.382 mm
Part Number: GM-038-D12-127-C Mitre Gears - 18 tooth - 38.1x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $192.23 AUD Regular price Sale price $192.23 AUD Unit price per Each
Teeth 18	Pitch Diameter (pd) 38.100 mm _{(1.5 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Overall Length (L) 25.933 mm
Material: Steel Hub Diameter (hd): 31.750 mm Hub Projection (F): 16.002 mm Mounting Distance (C): 38.100 mm Face Width (B): 8.382 mm
Part Number: GM-038-D12-127-C Mitre Gears - 18 tooth - 38.1x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $192.23 AUD Regular price Sale price $192.23 AUD Unit price per Each View the product page first if you are unsure.
GM-038-D12-127-C --- Mitre Gears - 18 tooth - 38.1x12.7 mm - Steel GM-038-D12-127-C --- Mitre Gears - 18 tooth - 38.1x12.7 mm - Steel Regular price $192.23 AUD Regular price Sale price $192.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Diameter (pd) 38.100 mm _{(1.5 in.)}	Bore (d) 15.875 mm _{(0.625 in.)}	Overall Length (L) 25.933 mm		Hub Diameter (hd) 31.750 mm
Material: Steel Hub Projection (F): 16.002 mm Mounting Distance (C): 38.100 mm Face Width (B): 8.382 mm
Part Number: GM-038-D12-159-C Mitre Gears - 18 tooth - 38.1x15.875 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $191.14 AUD Regular price Sale price $191.14 AUD Unit price per Each
Teeth 18	Pitch Diameter (pd) 38.100 mm _{(1.5 in.)}	Bore (d) 15.875 mm _{(0.625 in.)}	Overall Length (L) 25.933 mm
Material: Steel Hub Diameter (hd): 31.750 mm Hub Projection (F): 16.002 mm Mounting Distance (C): 38.100 mm Face Width (B): 8.382 mm
Part Number: GM-038-D12-159-C Mitre Gears - 18 tooth - 38.1x15.875 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $191.14 AUD Regular price Sale price $191.14 AUD Unit price per Each View the product page first if you are unsure.
GM-038-D12-159-C --- Mitre Gears - 18 tooth - 38.1x15.875 mm - Steel GM-038-D12-159-C --- Mitre Gears - 18 tooth - 38.1x15.875 mm - Steel Regular price $191.14 AUD Regular price Sale price $191.14 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Pitch Diameter (pd) 44.450 mm _{(1.75 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Overall Length (L) 30.277 mm		Hub Diameter (hd) 35.052 mm
Material: Steel Hub Projection (F): 17.526 mm Mounting Distance (C): 44.450 mm Face Width (B): 10.160 mm
Part Number: GM-044-D12-127-C Mitre Gears - 21 tooth - 44.45x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $111.68 AUD Regular price Sale price $111.68 AUD Unit price per Each
Teeth 21	Pitch Diameter (pd) 44.450 mm _{(1.75 in.)}	Bore (d) 12.700 mm _{(0.5 in.)}	Overall Length (L) 30.277 mm
Material: Steel Hub Diameter (hd): 35.052 mm Hub Projection (F): 17.526 mm Mounting Distance (C): 44.450 mm Face Width (B): 10.160 mm
Part Number: GM-044-D12-127-C Mitre Gears - 21 tooth - 44.45x12.7 mm - Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $111.68 AUD Regular price Sale price $111.68 AUD Unit price per Each View the product page first if you are unsure.
GM-044-D12-127-C --- Mitre Gears - 21 tooth - 44.45x12.7 mm - Steel GM-044-D12-127-C --- Mitre Gears - 21 tooth - 44.45x12.7 mm - Steel Regular price $111.68 AUD Regular price Sale price $111.68 AUD Unit price per Out of stock! Backorder Now
