Gears - Cluster Module 0.5 Brass

Gears -> Cluster Module 0.5 Brass

There is only 1 product in the sub-categories of Gears - Cluster Module 0.5 Brass. Browse the Gears - Cluster Module 0.5 Brass products table.

Category Details

A selection of Cluster Module 0.5 Brass Gears. This is the main category in this series

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Cluster Module 0.5 Brass category on the Small Parts & Bearings online store.
Number of Teeth Pitch Diameter Large - Small Outside Diameter Large - Small Bore Face Width Large / Small Overall Width Indicative
Number of Teeth
25 and 10

Pitch Diameter Large - Small
12.5 - 5.0
mm

(Equiv. 0.492 in.)
Outside Diameter Large - Small
13.0 - 5.5
mm

(Equiv. 0.512 in.)
Bore
2.38
mm
Face Width Large / Small
2.2 / 3.8
mm
Overall Width
6.0
mm

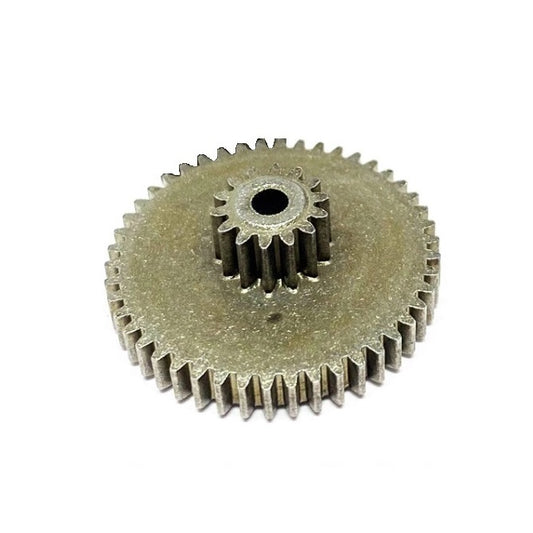

Cluster Module 0.5 Brass Gears - 25 - 10 tooth 12.5 - 5.0 - 13.0 - 5.5 - Brass and Steel
Material: Brass and Steel    Hub Diameter: None mm    Hub Projection: None mm    Other Information: No grub screws or hub. Mounting will usually be achieved by using an adhesive.    Quality: Hobby Quality
Deleted Item. Available while stocks last.
Part Number: GCL-013-M05-060-024-B (2 Pcs)
Cluster Module 0.5 Brass Gears - 25 and 10 tooth 12.5 - 5.0 - 13.0 - 5.5 - Brass and Steel Gear
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Diameter Large - Small Outside Diameter Large - Small Bore Indicative
Number of Teeth
25 and 10

Pitch Diameter Large - Small
12.5 - 5.0
mm

(Equiv. 0.492 in.)
Outside Diameter Large - Small
13.0 - 5.5
mm

(Equiv. 0.512 in.)
Bore
2.38
mm

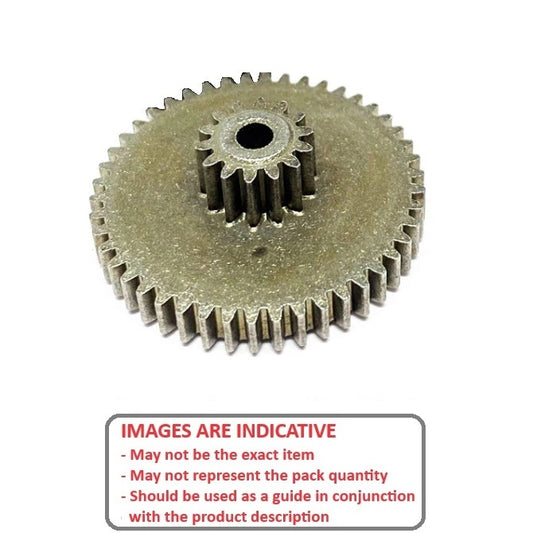

Cluster Module 0.5 Brass Gears - 25 - 10 tooth 12.5 - 5.0 - 13.0 - 5.5 - Brass and Steel
Material: Brass and Steel    Face Width Large / Small: 2.2 / 3.8 mm    Overall Width: 6.0 mm    Hub Diameter: None mm    Hub Projection: None mm    Other Information: No grub screws or hub. Mounting will usually be achieved by using an adhesive.    Quality: Hobby Quality
Deleted Item. Available while stocks last.
Part Number: GCL-013-M05-060-024-B (2 Pcs)
Cluster Module 0.5 Brass Gears - 25 and 10 tooth 12.5 - 5.0 - 13.0 - 5.5 - Brass and Steel Gear
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
