Gears - Bevel - 32DP Plastic

Gears -> Bevel -> 32DP Plastic

There are 2 products in the sub-categories of Gears - Bevel - 32DP Plastic. Browse the Gears - Bevel - 32DP Plastic products table.

Category Details

A selection of 32DP Plastic Bevel Gears. For 90 Degree angle power transfer. Ratios exceeding 1 to 1. Nylon and Acetal.

  • An expanded range may be available on special order. Please enquire.
  • 20 Degree Pressure Angle.
  • Do not mix gears from different sets.
  • See Gears - Mitre for 1 to 1 ratios.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Bevel - 32DP Plastic category on the Small Parts & Bearings online store.
Ratio Comment Matching Gear to Complete Set Teeth Bore (d) Indicative
Ratio
4 to 1

Comment
Small Gear Only

Matching Gear to Complete Set
GB-41A-D32-64-064-A

Teeth
16
Nr.
Bore (d)
4.762
mm

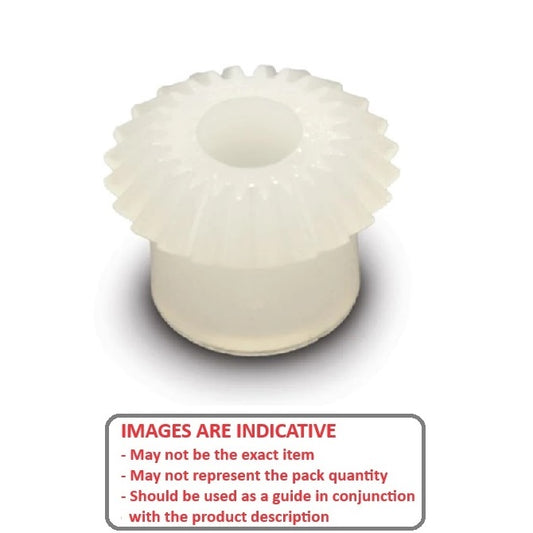

Bevel Gears - Ratio 4 to 1 Small Gear Only - GB-41A-D32-64-064-A - Acetal
Material: Acetal    Pitch Diameter (PD): 12.70 mm    Face Width (S): 5.73 mm    Overall Width (L): 11.91 mm    Hub Diameter (D1): 11.112 / No Locking mm    Mounting Distance (A): 31.750 mm    Hub Length (l1): 5.56 mm
Deleted Item. Available while stocks last.
Part Number: GB-41A-D32-16-048-A
Bevel Gears - Ratio 4 to 1 Small Gear Only - GB-41A-D32-64-064-A 32DP Plastic - Acetal Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Ratio Comment Matching Gear to Complete Set Teeth Indicative
Ratio
4 to 1

Comment
Small Gear Only

Matching Gear to Complete Set
GB-41A-D32-64-064-A

Teeth
16
Nr.
Bevel Gears - Ratio 4 to 1 Small Gear Only - GB-41A-D32-64-064-A - Acetal
Material: Acetal    Bore (d): 4.762 mm    Pitch Diameter (PD): 12.70 mm    Face Width (S): 5.73 mm    Overall Width (L): 11.91 mm    Hub Diameter (D1): 11.112 / No Locking mm    Mounting Distance (A): 31.750 mm    Hub Length (l1): 5.56 mm
Deleted Item. Available while stocks last.
Part Number: GB-41A-D32-16-048-A
Bevel Gears - Ratio 4 to 1 Small Gear Only - GB-41A-D32-64-064-A 32DP Plastic - Acetal Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Ratio
4 to 1

Comment
Large Gear Only

Matching Gear to Complete Set
GB-41A-D32-16-048-A

Teeth
64
Nr.
Bore (d)
6.401
mm
Bevel Gears - Ratio 4 to 1 Large Gear Only - GB-41A-D32-16-048-A - Acetal
Material: Acetal    Pitch Diameter (PD): 50.80 mm    Face Width (S): 5.73 mm    Overall Width (L): 10.32 mm    Hub Diameter (D1): 19.05 / No Locking mm    Mounting Distance (A): 17.463 mm    Hub Length (l1): 7.94 mm
Deleted Item. Available while stocks last.
Part Number: GB-41A-D32-64-064-A
Bevel Gears - Ratio 4 to 1 Large Gear Only - GB-41A-D32-16-048-A 32DP Plastic - Acetal Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Ratio
4 to 1

Comment
Large Gear Only

Matching Gear to Complete Set
GB-41A-D32-16-048-A

Teeth
64
Nr.
Bevel Gears - Ratio 4 to 1 Large Gear Only - GB-41A-D32-16-048-A - Acetal
Material: Acetal    Bore (d): 6.401 mm    Pitch Diameter (PD): 50.80 mm    Face Width (S): 5.73 mm    Overall Width (L): 10.32 mm    Hub Diameter (D1): 19.05 / No Locking mm    Mounting Distance (A): 17.463 mm    Hub Length (l1): 7.94 mm
Deleted Item. Available while stocks last.
Part Number: GB-41A-D32-64-064-A
Bevel Gears - Ratio 4 to 1 Large Gear Only - GB-41A-D32-16-048-A 32DP Plastic - Acetal Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
