Collection: Dual Vee - Adaptor Bushings
Dual Vee -> Adaptor BushingsThere are 16 products in the sub-categories of Dual Vee - Adaptor Bushings. Browse the Dual Vee - Adaptor Bushings products table.
Category Details

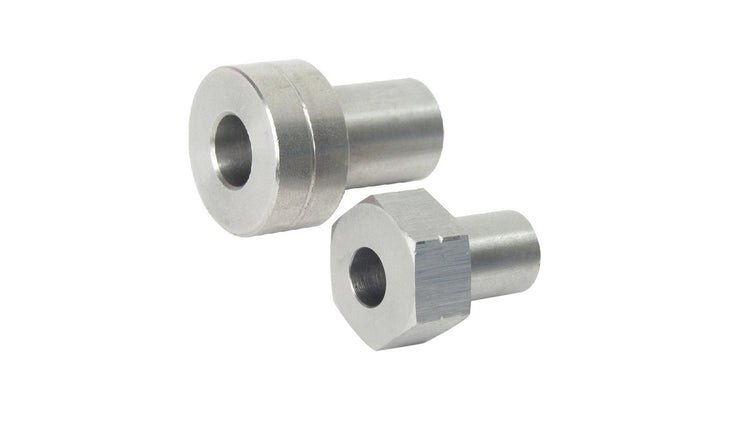

A selection of Adaptor Bushings Dual Vee. Vee grooved track roller bushings.

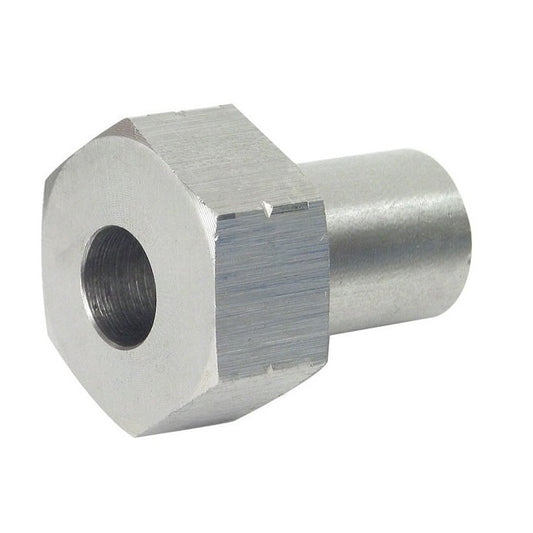

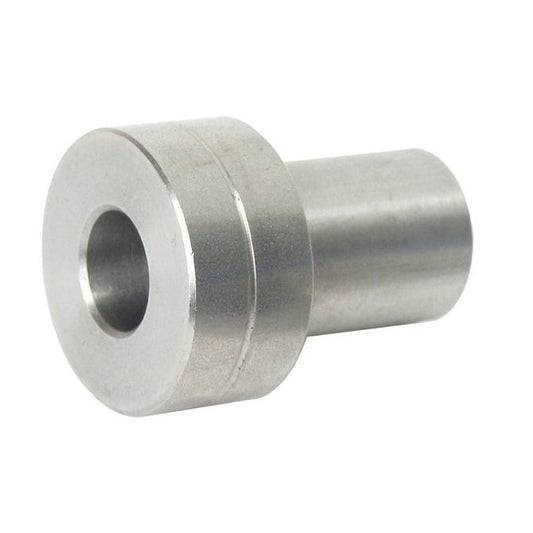

- Stationary bushings have a concentric hole

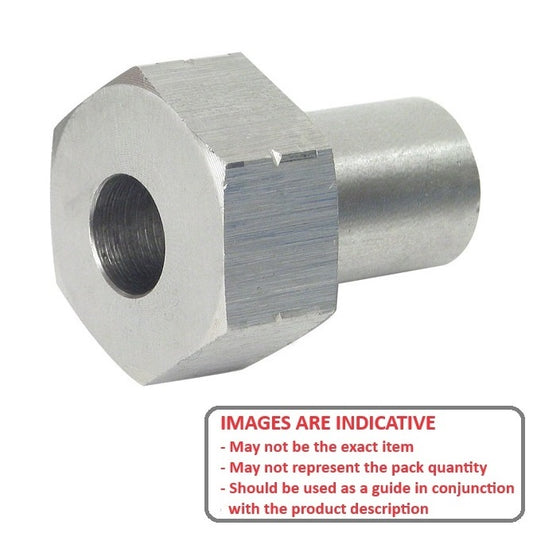

- Adjustable bushings have an eccentric hole allowing positioning of the guide wheel as the bush is turned
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Dual Vee - Adaptor Bushings category on the Small Parts & Bearings online store.
| Bushing Size | Overall Length (L) | Head Width (l) | Shank Diameter (D1) | Diameter / Hex (D or A) | Inside Diameter (N or d) |

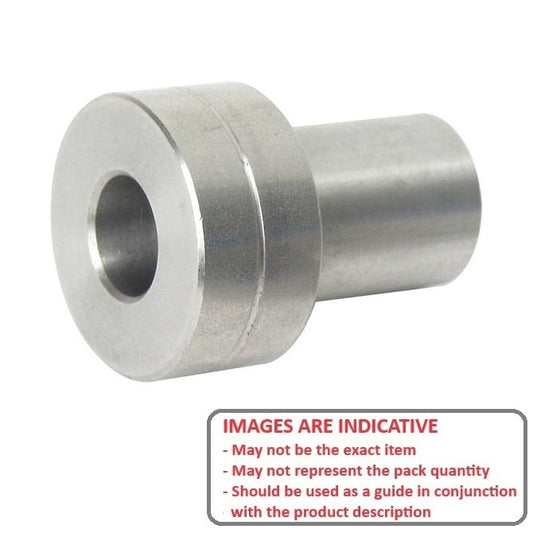

Indicative Image |
|---|---|---|---|---|---|---|
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
11.200
mm |
Inside Diameter (N or d)
3.505
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB1-ST-035-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
|
||||||
| Bushing Size | Overall Length (L) | Head Width (l) | Shank Diameter (D1) |
Indicative Image |
||
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 11.200 mm Inside Diameter (N or d): 3.505 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB1-ST-035-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$12.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
11.200
mm |
Inside Diameter (N or d)
4.01
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB1-ST-040-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$17.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 11.200 mm Inside Diameter (N or d): 4.01 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB1-ST-040-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$17.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
12.000
mm |
Inside Diameter (N or d)
3.505
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 0.180 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB1-ST-035-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$24.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 12.000 mm Inside Diameter (N or d): 3.505 mm + 0.050 / - 0.000 Offset Value (s): 0.180 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB1-ST-035-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$24.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
12.000
mm |
Inside Diameter (N or d)
4.01
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 0.180 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB1-ST-040-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$42.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
1
|
Overall Length (L)
14.000
mm + 0.000 / - 0.030 (Equiv. 0.551 in.) |
Head Width (l)
6.220
mm +/ - 0.03 (Equiv. 0.245 in.) |
Shank Diameter (D1)
4.760
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 12.000 mm Inside Diameter (N or d): 4.01 mm + 0.050 / - 0.000 Offset Value (s): 0.180 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB1-ST-040-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 1 - 14x6.22 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$42.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
14.000
mm |
Inside Diameter (N or d)
6.10
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 0.610 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB2-ST-060-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$50.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 14.000 mm Inside Diameter (N or d): 6.10 mm + 0.050 / - 0.000 Offset Value (s): 0.610 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB2-ST-060-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$50.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
14.000
mm |
Inside Diameter (N or d)
6.350
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 0.610 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB2-ST-064-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 1 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 14.000 mm Inside Diameter (N or d): 6.350 mm + 0.050 / - 0.000 Offset Value (s): 0.610 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB2-ST-064-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 1 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
14.200
mm |
Inside Diameter (N or d)
6.10
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB2-ST-060-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$24.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 14.200 mm Inside Diameter (N or d): 6.10 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB2-ST-060-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$24.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
14.200
mm |
Inside Diameter (N or d)
6.350
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB2-ST-064-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 2 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$10.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
2
|
Overall Length (L)
18.000
mm + 0.000 / - 0.070 (Equiv. 0.709 in.) |
Head Width (l)
6.650
mm +/ - 0.03 (Equiv. 0.262 in.) |
Shank Diameter (D1)
9.520
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 14.200 mm Inside Diameter (N or d): 6.350 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB2-ST-064-303
Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8 2 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$10.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
19.000
mm |
Inside Diameter (N or d)
7.938
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 1.070 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB3-ST-079-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$33.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 19.000 mm Inside Diameter (N or d): 7.938 mm + 0.050 / - 0.000 Offset Value (s): 1.070 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB3-ST-079-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$33.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
19.000
mm |
Inside Diameter (N or d)
8.10
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 1.070 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB3-ST-080-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 12, 2025 Regular price
$62.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 19.000 mm Inside Diameter (N or d): 8.10 mm + 0.050 / - 0.000 Offset Value (s): 1.070 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB3-ST-080-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 12, 2025 Regular price
$62.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
19.100
mm |
Inside Diameter (N or d)
7.938
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB3-ST-079-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 19.100 mm Inside Diameter (N or d): 7.938 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB3-ST-079-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
19.100
mm |
Inside Diameter (N or d)
8.10
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB3-ST-080-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$33.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
3
|
Overall Length (L)
25.200
mm + 0.000 / - 0.100 (Equiv. 0.992 in.) |
Head Width (l)
9.470
mm +/ - 0.03 (Equiv. 0.373 in.) |
Shank Diameter (D1)
12.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 19.100 mm Inside Diameter (N or d): 8.10 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB3-ST-080-303
Adaptor Bushings Dual Vee - Bushing Size 3 - 25.2x9.47 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025 Regular price
$33.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
22.000
mm |
Inside Diameter (N or d)
10.10
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 1.520 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB4-ST-100-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 2 Available Now | Further orders can be expected around Mon, Sep 29, 2025 Regular price
$67.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 22.000 mm Inside Diameter (N or d): 10.10 mm + 0.050 / - 0.000 Offset Value (s): 1.520 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB4-ST-100-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 2 Available Now | Further orders can be expected around Mon, Sep 29, 2025 Regular price
$67.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
22.000
mm |
Inside Diameter (N or d)
9.525
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Offset Value (s): 1.520 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB4-ST-095-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$40.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 22.000 mm Inside Diameter (N or d): 9.525 mm + 0.050 / - 0.000 Offset Value (s): 1.520 mm Bush Type: Adjustable Head Configuration: Hexagon | ||||||
|
Part Number: DVAB4-ST-095-ADJ-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$40.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
22.400
mm |
Inside Diameter (N or d)
10.10
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB4-ST-100-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 2 Available Now | Further orders can be expected around Mon, Sep 29, 2025 Regular price
$35.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 22.400 mm Inside Diameter (N or d): 10.10 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB4-ST-100-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 2 Available Now | Further orders can be expected around Mon, Sep 29, 2025 Regular price
$35.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
Diameter / Hex (D or A)
22.400
mm |
Inside Diameter (N or d)
9.525
mm + 0.050 / - 0.000 |
|
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB4-ST-095-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$28.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bushing Size
4
|
Overall Length (L)
30.000
mm + 0.000 / - 0.100 (Equiv. 1.181 in.) |
Head Width (l)
11.100
mm +/ - 0.03 (Equiv. 0.437 in.) |
Shank Diameter (D1)
15.000
mm + 0.000 / - 0.030 |
|
||
| Material: Stainless Steel 303 (Similar to A2, 304, 18-8) Diameter / Hex (D or A): 22.400 mm Inside Diameter (N or d): 9.525 mm + 0.050 / - 0.000 Bush Type: Stationary Head Configuration: Round | ||||||
|
Part Number: DVAB4-ST-095-303
Adaptor Bushings Dual Vee - Bushing Size 4 - 30x11.1 mm - Stainless Steel 303 Similar to A2, 304, 18-8 Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$28.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
