Collection: Couplings - Neo Flex
Couplings -> Neo FlexThere are 3 products in the sub-categories of Couplings - Neo Flex. Browse the Couplings - Neo Flex products table.
This product group is not included in our range. Try the full range at Minibearings instead.
Category Details

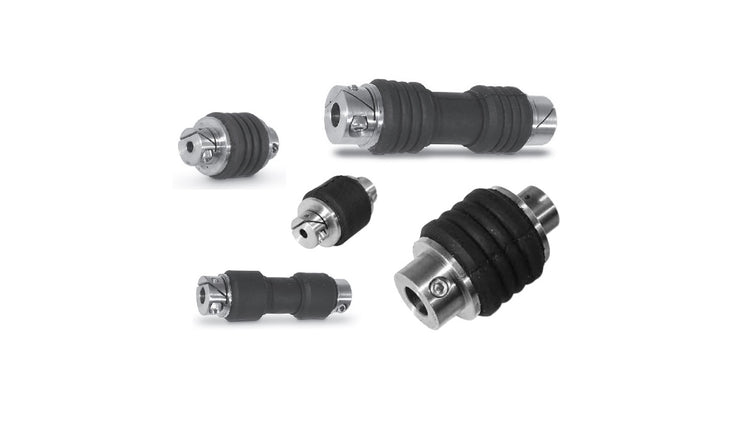

A selection of Neo Flex Couplings. 0.71 to 1.27 Nm.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- 303 stainless steel with 73 durometer neoprene centre.
- Shaft to shaft insulation.
- Torsional vibration isolation.
- Ribbed style are more flexible than smooth style.
- Bore Tolerances: +0.025 / -0.000.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Couplings - Neo Flex category on the Small Parts & Bearings online store.
| Bore (A1) | Bore (A2) | OD | Overall Length (L) | Max. Torque | Max. Speed |
Indicative Image |
|---|---|---|---|---|---|---|
|
Bore (A1)
3.000
mm (Equiv. 0.118 in.) |
Bore (A2)
4.000
mm (Equiv. 0.157 in.) |
OD
20.6
mm (Equiv. 0.811 in.) |
Overall Length (L)
31.8
mm |
Max. Torque
0.71
n.m |
Max. Speed
Not Listed
RPM |
|
| Material: Stainless Steel 303 and Neoprene Hub Config. / Hub Diameter(s): Set Screw / 7.900 / 9.500 mm Body Type: Ribbed Angle Misalignment: 5 ° Max. Parallel Offset: 0.250 mm | ||||||
|
Part Number: CP-030-040-21-032-NF-R3S
Neo Flex Couplings - 3x4x20.6 mm - Stainless Steel 303 and Neoprene Coupling 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Bore (A1) | Bore (A2) | OD | Overall Length (L) |
Indicative Image |
||
|
Bore (A1)
3.000
mm (Equiv. 0.118 in.) |
Bore (A2)
4.000
mm (Equiv. 0.157 in.) |
OD
20.6
mm (Equiv. 0.811 in.) |
Overall Length (L)
31.8
mm |
|
||
| Material: Stainless Steel 303 and Neoprene Max. Torque: 0.71 n.m Max. Speed: Not Listed RPM Hub Config. / Hub Diameter(s): Set Screw / 7.900 / 9.500 mm Body Type: Ribbed Angle Misalignment: 5 ° Max. Parallel Offset: 0.250 mm | ||||||
|
Part Number: CP-030-040-21-032-NF-R3S
Neo Flex Couplings - 3x4x20.6 mm - Stainless Steel 303 and Neoprene Coupling 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Bore (A1)
4.000
mm (Equiv. 0.157 in.) |
Bore (A2)
6.000
mm (Equiv. 0.236 in.) |
OD
20.6
mm (Equiv. 0.811 in.) |
Overall Length (L)
31.8
mm |
Max. Torque
0.84
n.m |
Max. Speed
Not Listed
RPM |
|
| Material: Stainless Steel 303 and Neoprene Hub Config. / Hub Diameter(s): Set Screw / 9.500 / 12.700 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-032-NF-S3S
Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene Coupling 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Bore (A1)
4.000
mm (Equiv. 0.157 in.) |
Bore (A2)
6.000
mm (Equiv. 0.236 in.) |
OD
20.6
mm (Equiv. 0.811 in.) |
Overall Length (L)
31.8
mm |
|
||
| Material: Stainless Steel 303 and Neoprene Max. Torque: 0.84 n.m Max. Speed: Not Listed RPM Hub Config. / Hub Diameter(s): Set Screw / 9.500 / 12.700 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-032-NF-S3S
Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene Coupling 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$45.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Bore (A1)
4.000
mm (Equiv. 0.157 in.) |
Bore (A2)
6.000
mm (Equiv. 0.236 in.) |
OD
20.6
mm (Equiv. 0.811 in.) |
Overall Length (L)
34.6
mm |
Max. Torque
0.84
n.m |
Max. Speed
Not Listed
RPM |
|
| Material: Stainless Steel 303 and Neoprene Hub Config. / Hub Diameter(s): Fairloc / 16.000 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-035-NF-S3C
Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene Coupling 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Bore (A1)
4.000
mm (Equiv. 0.157 in.) |
Bore (A2)
6.000
mm (Equiv. 0.236 in.) |
OD
20.6
mm (Equiv. 0.811 in.) |
Overall Length (L)
34.6
mm |
|
||
| Material: Stainless Steel 303 and Neoprene Max. Torque: 0.84 n.m Max. Speed: Not Listed RPM Hub Config. / Hub Diameter(s): Fairloc / 16.000 mm Body Type: Smooth Angle Misalignment: 1 ° Max. Parallel Offset: 0.130 mm | ||||||
|
Part Number: CP-040-060-21-035-NF-S3C
Neo Flex Couplings - 4x6x20.6 mm - Stainless Steel 303 and Neoprene Coupling 2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$40.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
