Clutches - Slip Magnetic Particle - No Power Without Shaft

Clutches -> Slip Magnetic Particle -> No Power Without Shaft

There are 7 products in the sub-categories of Clutches - Slip Magnetic Particle - No Power Without Shaft. Browse the Clutches - Slip Magnetic Particle - No Power Without Shaft products table.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

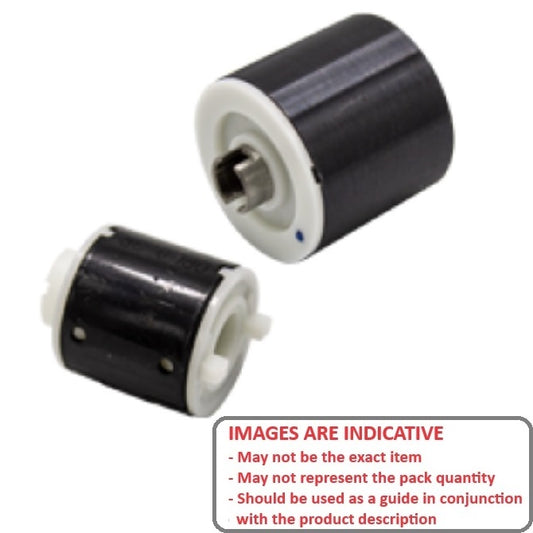

A selection of No Power Without Shaft Slip Magnetic Particle Clutches. Requires no power.

  • Sealed from contamination.
  • Uses permanent magnets and magnetic particles.
  • Constant torque levels.
  • Zero maintenance - Long operational life.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Clutches - Slip Magnetic Particle - No Power Without Shaft category on the Small Parts & Bearings online store.
Optimum Torque Range Inner Diameter (d) Overall Length Static Torque Hub Diameter (D1) Max. Speed Indicative
Optimum Torque Range
193 to 408
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
27.5
mm

(Equiv. 1.083 in.)
Static Torque
306
g.cm
Hub Diameter (D1)
17.0
mm
Max. Speed
300
RPM
Slip Magnetic Particle Clutches - 193 to 408 g.cm 8x27.5 mm
Body Diameter: 20.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0200-28-408
Slip Magnetic Particle Clutches - 193 to 408 g.cm 8x27.5 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$112.41 AUD
$112.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range Inner Diameter (d) Overall Length Static Torque Indicative
Optimum Torque Range
193 to 408
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
27.5
mm

(Equiv. 1.083 in.)
Static Torque
306
g.cm
Slip Magnetic Particle Clutches - 193 to 408 g.cm 8x27.5 mm
Hub Diameter (D1): 17.0 mm    Max. Speed: 300 RPM    Body Diameter: 20.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0200-28-408
Slip Magnetic Particle Clutches - 193 to 408 g.cm 8x27.5 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$112.41 AUD
$112.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
408 to 612
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
27.5
mm

(Equiv. 1.083 in.)
Static Torque
612
g.cm
Hub Diameter (D1)
17.0
mm
Max. Speed
300
RPM
Slip Magnetic Particle Clutches - 408 to 612 g.cm 8x27.5 mm
Body Diameter: 20.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0200-28-612
Slip Magnetic Particle Clutches - 408 to 612 g.cm 8x27.5 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$98.14 AUD
$117.76 AUD $98.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
408 to 612
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
27.5
mm

(Equiv. 1.083 in.)
Static Torque
612
g.cm
Slip Magnetic Particle Clutches - 408 to 612 g.cm 8x27.5 mm
Hub Diameter (D1): 17.0 mm    Max. Speed: 300 RPM    Body Diameter: 20.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0200-28-612
Slip Magnetic Particle Clutches - 408 to 612 g.cm 8x27.5 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$98.14 AUD
$117.76 AUD $98.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
612 to 1224
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
34.5
mm

(Equiv. 1.358 in.)
Static Torque
1224
g.cm
Hub Diameter (D1)
17.0
mm
Max. Speed
250
RPM
Slip Magnetic Particle Clutches - 612 to 1224 g.cm 8x34.5 mm
Body Diameter: 20.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0200-35-1224
Slip Magnetic Particle Clutches - 612 to 1224 g.cm 8x34.5 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$145.05 AUD
$174.05 AUD $145.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
612 to 1224
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
34.5
mm

(Equiv. 1.358 in.)
Static Torque
1224
g.cm
Slip Magnetic Particle Clutches - 612 to 1224 g.cm 8x34.5 mm
Hub Diameter (D1): 17.0 mm    Max. Speed: 250 RPM    Body Diameter: 20.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0200-35-1224
Slip Magnetic Particle Clutches - 612 to 1224 g.cm 8x34.5 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$145.05 AUD
$174.05 AUD $145.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
714 to 1010
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
37.0
mm

(Equiv. 1.457 in.)
Static Torque
1010
g.cm
Hub Diameter (D1)
20.0
mm
Max. Speed
400
RPM
Slip Magnetic Particle Clutches - 714 to 1010 g.cm 8x37 mm
Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-37-1010
Slip Magnetic Particle Clutches - 714 to 1010 g.cm 8x37 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$382.05 AUD
$382.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
714 to 1010
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
37.0
mm

(Equiv. 1.457 in.)
Static Torque
1010
g.cm
Slip Magnetic Particle Clutches - 714 to 1010 g.cm 8x37 mm
Hub Diameter (D1): 20.0 mm    Max. Speed: 400 RPM    Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-37-1010
Slip Magnetic Particle Clutches - 714 to 1010 g.cm 8x37 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$382.05 AUD
$382.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
1010 to 1530
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
37.0
mm

(Equiv. 1.457 in.)
Static Torque
1531
g.cm
Hub Diameter (D1)
20.0
mm
Max. Speed
400
RPM
Slip Magnetic Particle Clutches - 1010 to 1530 g.cm 8x37 mm
Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-37-1530
Slip Magnetic Particle Clutches - 1010 to 1530 g.cm 8x37 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$394.05 AUD
$394.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
1010 to 1530
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
37.0
mm

(Equiv. 1.457 in.)
Static Torque
1531
g.cm
Slip Magnetic Particle Clutches - 1010 to 1530 g.cm 8x37 mm
Hub Diameter (D1): 20.0 mm    Max. Speed: 400 RPM    Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-37-1530
Slip Magnetic Particle Clutches - 1010 to 1530 g.cm 8x37 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$394.05 AUD
$394.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
1530 to 2030
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
44.0
mm

(Equiv. 1.732 in.)
Static Torque
2031
g.cm
Hub Diameter (D1)
20.0
mm
Max. Speed
300
RPM
Slip Magnetic Particle Clutches - 1530 to 2030 g.cm 8x44 mm
Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-44-2030
Slip Magnetic Particle Clutches - 1530 to 2030 g.cm 8x44 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$456.14 AUD
$456.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
1530 to 2030
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
44.0
mm

(Equiv. 1.732 in.)
Static Torque
2031
g.cm
Slip Magnetic Particle Clutches - 1530 to 2030 g.cm 8x44 mm
Hub Diameter (D1): 20.0 mm    Max. Speed: 300 RPM    Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-44-2030
Slip Magnetic Particle Clutches - 1530 to 2030 g.cm 8x44 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$456.14 AUD
$456.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
2030 to 3071
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
44.0
mm

(Equiv. 1.732 in.)
Static Torque
3071
g.cm
Hub Diameter (D1)
20.0
mm
Max. Speed
300
RPM
Slip Magnetic Particle Clutches - 2030 to 3071 g.cm 8x44 mm
Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-44-3071
Slip Magnetic Particle Clutches - 2030 to 3071 g.cm 8x44 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$474.23 AUD
$474.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Optimum Torque Range
2030 to 3071
g.cm
Inner Diameter (d)
8.000
mm

(Equiv. 0.315 in.)
Overall Length
44.0
mm

(Equiv. 1.732 in.)
Static Torque
3071
g.cm
Slip Magnetic Particle Clutches - 2030 to 3071 g.cm 8x44 mm
Hub Diameter (D1): 20.0 mm    Max. Speed: 300 RPM    Body Diameter: 32.0 mm    Shell (Material): Steel    End Caps (Material): Plastic
Part Number: CMP-0800-0320-44-3071
Slip Magnetic Particle Clutches - 2030 to 3071 g.cm 8x44 mm No Power Without Shaft
Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 13, 2026
$474.23 AUD
$474.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
