Clamps - Gear - Split

Clamps -> Gear -> Split

There are 2 products in the sub-categories of Clamps - Gear - Split. Browse the Clamps - Gear - Split products table.

Category Details

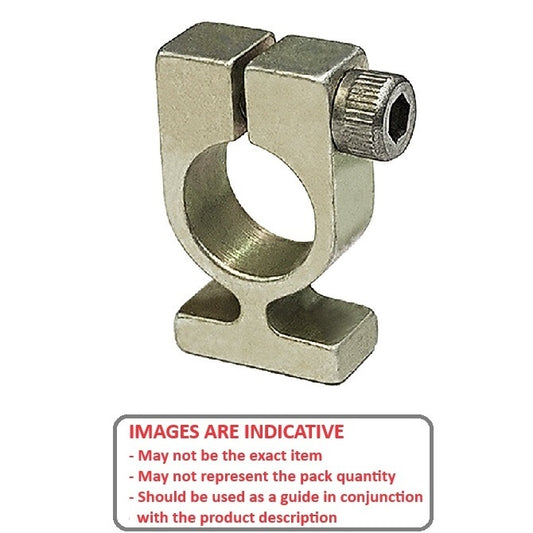

A selection of Split Gear Clamps. Commercial - Precision - Stainless - Aluminium - Carbon Steel - For clamp type gears.

  • This category will be discontinued when the remaining items are sold.
  • All items are priced to quit.
  • Backorders or orders for previously listed items in the category may still be possible - please enquire.
  • Precision Type : Height and Clearance Radii Tolerances +/- 0.397.
  • Precision Type : All other dimensional tolerances except ID +/-0.127.
  • Commercial Type : Height and Clearance Radii Tolerances +/- 0.794.
  • Commercial Type : All other dimensional tolerances except ID +/-0.254.
  • ID Tolerances - Refer to table.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Clamps - Gear - Split category on the Small Parts & Bearings online store.
Inside Diameter (ID) Clearance Radius Depth (t) Type Grade Indicative
Gear Clamps - 6.35x12.7x6.35 mm Split - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Clamp
Inside Diameter (ID)
6.350
mm
+0.051 / - 0.000
(Equiv. 0.25 in.)
Clearance Radius
12.700
mm
Depth (t)
6.350
mm
Type
Rectangular - Type 2
Grade
Commercial / Balanced
Gear Clamps - 6.35x12.7x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Screw Size: 6-32 mm    Height: 20.241 mm    Width (B): 9.525 mm
Deleted Item. Available while stocks last.
Part Number: CGS-0635-R2C-3 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inside Diameter (ID) Clearance Radius Depth (t) Indicative
Gear Clamps - 6.35x12.7x6.35 mm Split - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Clamp
Inside Diameter (ID)
6.350
mm
+0.051 / - 0.000
(Equiv. 0.25 in.)
Clearance Radius
12.700
mm
Depth (t)
6.350
mm
Gear Clamps - 6.35x12.7x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Type: Rectangular - Type 2    Grade: Commercial / Balanced    Screw Size: 6-32 mm    Height: 20.241 mm    Width (B): 9.525 mm
Deleted Item. Available while stocks last.
Part Number: CGS-0635-R2C-3 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Gear Clamps - 7.938x12.304x6.35 mm Split - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Clamp
Inside Diameter (ID)
7.938
mm
+0.051 / - 0.000
(Equiv. 0.313 in.)
Clearance Radius
12.304
mm
Depth (t)
6.350
mm
Type
Rectangular - Type 2
Grade
Commercial / Balanced
Gear Clamps - 7.938x12.304x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Screw Size: 6-32 mm    Height: 20.638 mm    Width (B): 11.100 mm
Deleted Item. Available while stocks last.
Part Number: CGS-0794-R2SC-3 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Gear Clamps - 7.938x12.304x6.35 mm Split - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Clamp
Inside Diameter (ID)
7.938
mm
+0.051 / - 0.000
(Equiv. 0.313 in.)
Clearance Radius
12.304
mm
Depth (t)
6.350
mm
Gear Clamps - 7.938x12.304x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Type: Rectangular - Type 2    Grade: Commercial / Balanced    Screw Size: 6-32 mm    Height: 20.638 mm    Width (B): 11.100 mm
Deleted Item. Available while stocks last.
Part Number: CGS-0794-R2SC-3 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
