Clamps - Gear - Screw Type

Clamps -> Gear -> Screw Type

There is only 1 product in the sub-categories of Clamps - Gear - Screw Type. Browse the Clamps - Gear - Screw Type products table.

Category Details

A selection of Screw Type Gear Clamps. Commercial - Precision - Stainless - Aluminium - Carbon Steel - For clamp type gears.

  • This category will be discontinued when the remaining items are sold.
  • All items are priced to quit.
  • Backorders or orders for previously listed items in the category may still be possible - please enquire.
  • Precision Type : Height and Clearance Radii Tolerances +/- 0.397.
  • Precision Type : All other dimensional tolerances except ID +/-0.127.
  • Commercial Type : Height and Clearance Radii Tolerances +/- 0.794.
  • Commercial Type : All other dimensional tolerances except ID +/-0.254.
  • ID Tolerances - Refer to table.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Clamps - Gear - Screw Type category on the Small Parts & Bearings online store.
Inside Diameter (ID) Clearance Radius Depth (B) Type Grade Indicative

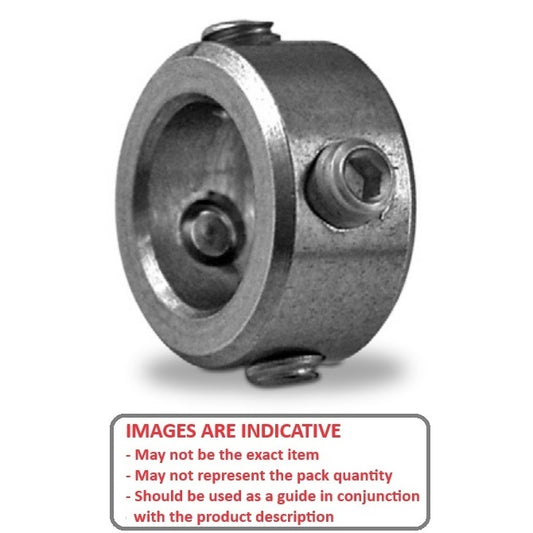

Gear Clamps - 7.938x6.35x6.35 mm Screw Type - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Clamp
Inside Diameter (ID)
7.938
mm
+0.051 / - 0.000
(Equiv. 0.313 in.)
Clearance Radius
6.350
mm
Depth (B)
6.350
mm
Type
Screw Type
Grade
Commercial / Not Balanced
Gear Clamps - 7.938x6.35x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Screw Size: 6-32 mm    Height (A): 12.700 mm    Width (D): 12.700 mm
Deleted Item. Available while stocks last.
Part Number: CGW-0794-SCC-3 (Each)
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Inside Diameter (ID) Clearance Radius Depth (B) Indicative
Gear Clamps - 7.938x6.35x6.35 mm Screw Type - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Clamp
Inside Diameter (ID)
7.938
mm
+0.051 / - 0.000
(Equiv. 0.313 in.)
Clearance Radius
6.350
mm
Depth (B)
6.350
mm
Gear Clamps - 7.938x6.35x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Type: Screw Type    Grade: Commercial / Not Balanced    Screw Size: 6-32 mm    Height (A): 12.700 mm    Width (D): 12.700 mm
Deleted Item. Available while stocks last.
Part Number: CGW-0794-SCC-3 (Each)
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
