Bushings - Spherical - Plastic

Bushings -> Spherical -> Plastic

There are 35 products in the sub-categories of Bushings - Spherical - Plastic. Scroll down or follow the link to Bushings - Spherical - Plastic in the products table to see all these items combined into a handy table with filters.

Category Details

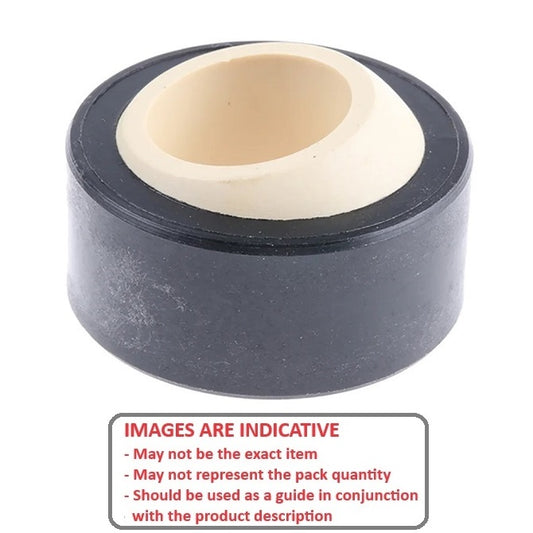

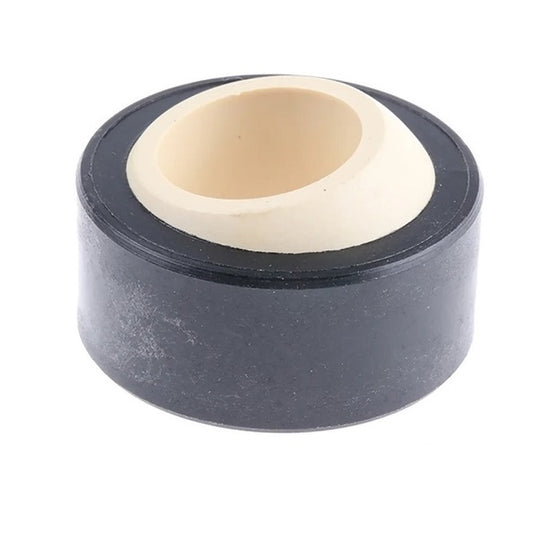

A selection of Plastic Spherical Bushings. Plastic spherical plain bearings. Also known as ball bushings.

  • Ball Material W300. Housing Iglidur G.
  • Maintenance Free. Self lubricating.
  • Compensates for axial loads and misalignment.
  • Corrosion resistant.
  • High vibration dampening capacity.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushings - Spherical - Plastic category on the Small Parts & Bearings online store.
Bore (d1) OD (d2) Width (B) Outer Width (C) Max Pivot angle Max Torque Indicative
Bore (d1)
2.000
mm
+ 0.014 / + 0.054
(Equiv. 0.079 in.)
OD (d2)
8.000
mm

(Equiv. 0.315 in.)
Width (B)
4.000
mm

(Equiv. 0.157 in.)
Outer Width (C)
3.000
mm
Max Pivot angle
32
Deg.
Max Torque
1.0
Nm
Spherical Bushings - 2x8x4 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 300 N    Max Static Comp. str. (Axial): 60 N
Part Number: GE-00200-00800-W300 (10 Pcs)
Spherical Bushings - 2x8x4 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$80.50 AUD
$96.60 AUD $80.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1) OD (d2) Width (B) Outer Width (C) Indicative
Bore (d1)
2.000
mm
+ 0.014 / + 0.054
(Equiv. 0.079 in.)
OD (d2)
8.000
mm

(Equiv. 0.315 in.)
Width (B)
4.000
mm

(Equiv. 0.157 in.)
Outer Width (C)
3.000
mm
Spherical Bushings - 2x8x4 mm Plastic
Material: W300 Plastic    Max Pivot angle: 32 Deg.    Max Torque: 1.0 Nm    Max Static Comp. str. (Radial): 300 N    Max Static Comp. str. (Axial): 60 N
Part Number: GE-00200-00800-W300 (10 Pcs)
Spherical Bushings - 2x8x4 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$80.50 AUD
$96.60 AUD $80.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
3.000
mm
+ 0.014 / + 0.054
(Equiv. 0.118 in.)
OD (d2)
10.000
mm

(Equiv. 0.394 in.)
Width (B)
6.000
mm

(Equiv. 0.236 in.)
Outer Width (C)
4.50
mm
Max Pivot angle
32
Deg.
Max Torque
3.0
Nm
Spherical Bushings - 3x10x6 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 530 N    Max Static Comp. str. (Axial): 200 N
Part Number: GE-00300-01000-W300 (10 Pcs)
Spherical Bushings - 3x10x6 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$104.68 AUD
$125.62 AUD $104.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
3.000
mm
+ 0.014 / + 0.054
(Equiv. 0.118 in.)
OD (d2)
10.000
mm

(Equiv. 0.394 in.)
Width (B)
6.000
mm

(Equiv. 0.236 in.)
Outer Width (C)
4.50
mm
Spherical Bushings - 3x10x6 mm Plastic
Material: W300 Plastic    Max Pivot angle: 32 Deg.    Max Torque: 3.0 Nm    Max Static Comp. str. (Radial): 530 N    Max Static Comp. str. (Axial): 200 N
Part Number: GE-00300-01000-W300 (10 Pcs)
Spherical Bushings - 3x10x6 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$104.68 AUD
$125.62 AUD $104.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
4.000
mm
+ 0.020 / + 0.068
(Equiv. 0.157 in.)
OD (d2)
12.000
mm

(Equiv. 0.472 in.)
Width (B)
5.000
mm

(Equiv. 0.197 in.)
Outer Width (C)
3.00
mm
Max Pivot angle
37
Deg.
Max Torque
2.0
Nm
Spherical Bushings - 4x12x5 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 600 N    Max Static Comp. str. (Axial): 100 N
Part Number: GE-00400-01200-W300 (10 Pcs)
Spherical Bushings - 4x12x5 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$156.77 AUD
$188.13 AUD $156.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
4.000
mm
+ 0.020 / + 0.068
(Equiv. 0.157 in.)
OD (d2)
12.000
mm

(Equiv. 0.472 in.)
Width (B)
5.000
mm

(Equiv. 0.197 in.)
Outer Width (C)
3.00
mm
Spherical Bushings - 4x12x5 mm Plastic
Material: W300 Plastic    Max Pivot angle: 37 Deg.    Max Torque: 2.0 Nm    Max Static Comp. str. (Radial): 600 N    Max Static Comp. str. (Axial): 100 N
Part Number: GE-00400-01200-W300 (10 Pcs)
Spherical Bushings - 4x12x5 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$156.77 AUD
$188.13 AUD $156.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
4.830
mm

(Equiv. 0.19 in.)
OD (d2)
14.290
mm

(Equiv. 0.563 in.)
Width (B)
7.930
mm

(Equiv. 0.312 in.)
Outer Width (C)
5.54
mm
Max Pivot angle
34
Deg.
Max Torque
5.0
Nm
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 1000 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00483-01429-W300
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic Bushing
20 Available Now | Further orders can be expected around Tue, Sep 09, 2025
$18.14 AUD
$18.14 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
Bore (d1)
4.830
mm

(Equiv. 0.19 in.)
OD (d2)
14.290
mm

(Equiv. 0.563 in.)
Width (B)
7.930
mm

(Equiv. 0.312 in.)
Outer Width (C)
5.54
mm
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic
Material: Plastic    Max Pivot angle: 34 Deg.    Max Torque: 5.0 Nm    Max Static Comp. str. (Radial): 1000 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00483-01429-W300
Spherical Bushings - 4.83x14.29x7.93 mm - Plastic Bushing
20 Available Now | Further orders can be expected around Tue, Sep 09, 2025
$18.14 AUD
$18.14 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
Bore (d1)
5.000
mm

(Equiv. 0.197 in.)
OD (d2)
13.000
mm

(Equiv. 0.512 in.)
Width (B)
8.000
mm

(Equiv. 0.315 in.)
Outer Width (C)
6.00
mm
Max Pivot angle
30
Deg.
Max Torque
5.0
Nm
Spherical Bushings - 5x13x8 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 1250 N    Max Static Comp. str. (Axial): 500 N
Part Number: GE-00500-01300-W300
Spherical Bushings - 5x13x8 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$9.95 AUD
$11.95 AUD $9.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
5.000
mm

(Equiv. 0.197 in.)
OD (d2)
13.000
mm

(Equiv. 0.512 in.)
Width (B)
8.000
mm

(Equiv. 0.315 in.)
Outer Width (C)
6.00
mm
Spherical Bushings - 5x13x8 mm - Plastic
Material: Plastic    Max Pivot angle: 30 Deg.    Max Torque: 5.0 Nm    Max Static Comp. str. (Radial): 1250 N    Max Static Comp. str. (Axial): 500 N
Part Number: GE-00500-01300-W300
Spherical Bushings - 5x13x8 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$9.95 AUD
$11.95 AUD $9.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
5.000
mm
+ 0.020 / + 0.068
(Equiv. 0.197 in.)
OD (d2)
14.000
mm

(Equiv. 0.551 in.)
Width (B)
6.000
mm

(Equiv. 0.236 in.)
Outer Width (C)
4.00
mm
Max Pivot angle
33
Deg.
Max Torque
2.0
Nm
Spherical Bushings - 5x14x6 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 950 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00500-01400-W300 (10 Pcs)
Spherical Bushings - 5x14x6 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$168.95 AUD
$202.75 AUD $168.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
5.000
mm
+ 0.020 / + 0.068
(Equiv. 0.197 in.)
OD (d2)
14.000
mm

(Equiv. 0.551 in.)
Width (B)
6.000
mm

(Equiv. 0.236 in.)
Outer Width (C)
4.00
mm
Spherical Bushings - 5x14x6 mm Plastic
Material: W300 Plastic    Max Pivot angle: 33 Deg.    Max Torque: 2.0 Nm    Max Static Comp. str. (Radial): 950 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00500-01400-W300 (10 Pcs)
Spherical Bushings - 5x14x6 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$168.95 AUD
$202.75 AUD $168.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
6.000
mm
+ 0.020 / + 0.068
(Equiv. 0.236 in.)
OD (d2)
14.000
mm

(Equiv. 0.551 in.)
Width (B)
6.000
mm

(Equiv. 0.236 in.)
Outer Width (C)
4.00
mm
Max Pivot angle
27
Deg.
Max Torque
2.5
Nm
Spherical Bushings - 6x14x6 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 1050 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00600-01400-W300 (10 Pcs)
Spherical Bushings - 6x14x6 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$171.68 AUD
$206.02 AUD $171.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
6.000
mm
+ 0.020 / + 0.068
(Equiv. 0.236 in.)
OD (d2)
14.000
mm

(Equiv. 0.551 in.)
Width (B)
6.000
mm

(Equiv. 0.236 in.)
Outer Width (C)
4.00
mm
Spherical Bushings - 6x14x6 mm Plastic
Material: W300 Plastic    Max Pivot angle: 27 Deg.    Max Torque: 2.5 Nm    Max Static Comp. str. (Radial): 1050 N    Max Static Comp. str. (Axial): 150 N
Part Number: GE-00600-01400-W300 (10 Pcs)
Spherical Bushings - 6x14x6 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$171.68 AUD
$206.02 AUD $171.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
6.000
mm
+ 0.020 / + 0.068
(Equiv. 0.236 in.)
OD (d2)
16.000
mm

(Equiv. 0.63 in.)
Width (B)
9.000
mm

(Equiv. 0.354 in.)
Outer Width (C)
6.50
mm
Max Pivot angle
29
Deg.
Max Torque
10.0
Nm
Spherical Bushings - 6x16x9 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 1750 N    Max Static Comp. str. (Axial): 700 N
Part Number: GE-00600-01600-W300 (10 Pcs)
Spherical Bushings - 6x16x9 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$125.50 AUD
$150.60 AUD $125.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
6.000
mm
+ 0.020 / + 0.068
(Equiv. 0.236 in.)
OD (d2)
16.000
mm

(Equiv. 0.63 in.)
Width (B)
9.000
mm

(Equiv. 0.354 in.)
Outer Width (C)
6.50
mm
Spherical Bushings - 6x16x9 mm Plastic
Material: W300 Plastic    Max Pivot angle: 29 Deg.    Max Torque: 10.0 Nm    Max Static Comp. str. (Radial): 1750 N    Max Static Comp. str. (Axial): 700 N
Part Number: GE-00600-01600-W300 (10 Pcs)
Spherical Bushings - 6x16x9 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$125.50 AUD
$150.60 AUD $125.50 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
OD (d2)
16.670
mm

(Equiv. 0.656 in.)
Width (B)
9.530
mm

(Equiv. 0.375 in.)
Outer Width (C)
6.35
mm
Max Pivot angle
30
Deg.
Max Torque
10.0
Nm
Spherical Bushings - 6.35x16.67x9.53 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 1500 N    Max Static Comp. str. (Axial): 250 N
Part Number: GE-00635-01667-W300
Spherical Bushings - 6.35x16.67x9.53 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$7.23 AUD
$8.67 AUD $7.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
6.350
mm

(Equiv. 0.25 in.)
OD (d2)
16.670
mm

(Equiv. 0.656 in.)
Width (B)
9.530
mm

(Equiv. 0.375 in.)
Outer Width (C)
6.35
mm
Spherical Bushings - 6.35x16.67x9.53 mm - Plastic
Material: Plastic    Max Pivot angle: 30 Deg.    Max Torque: 10.0 Nm    Max Static Comp. str. (Radial): 1500 N    Max Static Comp. str. (Axial): 250 N
Part Number: GE-00635-01667-W300
Spherical Bushings - 6.35x16.67x9.53 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$7.23 AUD
$8.67 AUD $7.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
7.940
mm

(Equiv. 0.313 in.)
OD (d2)
19.050
mm

(Equiv. 0.75 in.)
Width (B)
11.100
mm

(Equiv. 0.437 in.)
Outer Width (C)
7.14
mm
Max Pivot angle
29
Deg.
Max Torque
12.0
Nm
Spherical Bushings - 7.94x19.05x11.1 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 2000 N    Max Static Comp. str. (Axial): 300 N
Part Number: GE-00794-01905-W300
Spherical Bushings - 7.94x19.05x11.1 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$7.50 AUD
$9.00 AUD $7.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
7.940
mm

(Equiv. 0.313 in.)
OD (d2)
19.050
mm

(Equiv. 0.75 in.)
Width (B)
11.100
mm

(Equiv. 0.437 in.)
Outer Width (C)
7.14
mm
Spherical Bushings - 7.94x19.05x11.1 mm - Plastic
Material: Plastic    Max Pivot angle: 29 Deg.    Max Torque: 12.0 Nm    Max Static Comp. str. (Radial): 2000 N    Max Static Comp. str. (Axial): 300 N
Part Number: GE-00794-01905-W300
Spherical Bushings - 7.94x19.05x11.1 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$7.50 AUD
$9.00 AUD $7.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
OD (d2)
16.000
mm

(Equiv. 0.63 in.)
Width (B)
8.000
mm

(Equiv. 0.315 in.)
Outer Width (C)
5.00
mm
Max Pivot angle
24
Deg.
Max Torque
7.0
Nm
Spherical Bushings - 8x16x8 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 1350 N    Max Static Comp. str. (Axial): 200 N
Part Number: GE-00800-01600-W300 (10 Pcs)
Spherical Bushings - 8x16x8 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$147.14 AUD
$176.56 AUD $147.14 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
OD (d2)
16.000
mm

(Equiv. 0.63 in.)
Width (B)
8.000
mm

(Equiv. 0.315 in.)
Outer Width (C)
5.00
mm
Spherical Bushings - 8x16x8 mm - Plastic
Material: Plastic    Max Pivot angle: 24 Deg.    Max Torque: 7.0 Nm    Max Static Comp. str. (Radial): 1350 N    Max Static Comp. str. (Axial): 200 N
Part Number: GE-00800-01600-W300 (10 Pcs)
Spherical Bushings - 8x16x8 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$147.14 AUD
$176.56 AUD $147.14 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
OD (d2)
19.000
mm

(Equiv. 0.748 in.)
Width (B)
12.000
mm

(Equiv. 0.472 in.)
Outer Width (C)
9.00
mm
Max Pivot angle
25
Deg.
Max Torque
12.0
Nm
Spherical Bushings - 8x19x12 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 2350 N    Max Static Comp. str. (Axial): 1000 N
Part Number: GE-00800-01900-W300
Spherical Bushings - 8x19x12 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$11.14 AUD
$13.36 AUD $11.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
8.000
mm

(Equiv. 0.315 in.)
OD (d2)
19.000
mm

(Equiv. 0.748 in.)
Width (B)
12.000
mm

(Equiv. 0.472 in.)
Outer Width (C)
9.00
mm
Spherical Bushings - 8x19x12 mm - Plastic
Material: Plastic    Max Pivot angle: 25 Deg.    Max Torque: 12.0 Nm    Max Static Comp. str. (Radial): 2350 N    Max Static Comp. str. (Axial): 1000 N
Part Number: GE-00800-01900-W300
Spherical Bushings - 8x19x12 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$11.14 AUD
$13.36 AUD $11.14 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
9.530
mm

(Equiv. 0.375 in.)
OD (d2)
20.640
mm

(Equiv. 0.813 in.)
Width (B)
12.700
mm

(Equiv. 0.5 in.)
Outer Width (C)
7.93
mm
Max Pivot angle
25
Deg.
Max Torque
20.0
Nm
Spherical Bushings - 9.53x20.64x12.7 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 2800 N    Max Static Comp. str. (Axial): 325 N
Part Number: GE-00953-02064-W300
Spherical Bushings - 9.53x20.64x12.7 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$9.05 AUD
$10.85 AUD $9.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
9.530
mm

(Equiv. 0.375 in.)
OD (d2)
20.640
mm

(Equiv. 0.813 in.)
Width (B)
12.700
mm

(Equiv. 0.5 in.)
Outer Width (C)
7.93
mm
Spherical Bushings - 9.53x20.64x12.7 mm - Plastic
Material: Plastic    Max Pivot angle: 25 Deg.    Max Torque: 20.0 Nm    Max Static Comp. str. (Radial): 2800 N    Max Static Comp. str. (Axial): 325 N
Part Number: GE-00953-02064-W300
Spherical Bushings - 9.53x20.64x12.7 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$9.05 AUD
$10.85 AUD $9.05 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
10.000
mm
+ 0.025 / + 0.083
(Equiv. 0.394 in.)
OD (d2)
19.000
mm

(Equiv. 0.748 in.)
Width (B)
9.000
mm

(Equiv. 0.354 in.)
Outer Width (C)
6.00
mm
Max Pivot angle
24
Deg.
Max Torque
14.0
Nm
Spherical Bushings - 10x19x9 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 2000 N    Max Static Comp. str. (Axial): 300 N
Part Number: GE-01000-01900-W300 (10 Pcs)
Spherical Bushings - 10x19x9 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$189.41 AUD
$227.29 AUD $189.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
10.000
mm
+ 0.025 / + 0.083
(Equiv. 0.394 in.)
OD (d2)
19.000
mm

(Equiv. 0.748 in.)
Width (B)
9.000
mm

(Equiv. 0.354 in.)
Outer Width (C)
6.00
mm
Spherical Bushings - 10x19x9 mm Plastic
Material: W300 Plastic    Max Pivot angle: 24 Deg.    Max Torque: 14.0 Nm    Max Static Comp. str. (Radial): 2000 N    Max Static Comp. str. (Axial): 300 N
Part Number: GE-01000-01900-W300 (10 Pcs)
Spherical Bushings - 10x19x9 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$189.41 AUD
$227.29 AUD $189.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
10.000
mm

(Equiv. 0.394 in.)
OD (d2)
22.000
mm

(Equiv. 0.866 in.)
Width (B)
14.000
mm

(Equiv. 0.551 in.)
Outer Width (C)
10.50
mm
Max Pivot angle
25
Deg.
Max Torque
20.0
Nm
Spherical Bushings - 10x22x14 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 3550 N    Max Static Comp. str. (Axial): 1100 N
Part Number: GE-01000-02200-W300
Spherical Bushings - 10x22x14 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$9.95 AUD
$11.95 AUD $9.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
10.000
mm

(Equiv. 0.394 in.)
OD (d2)
22.000
mm

(Equiv. 0.866 in.)
Width (B)
14.000
mm

(Equiv. 0.551 in.)
Outer Width (C)
10.50
mm
Spherical Bushings - 10x22x14 mm - Plastic
Material: Plastic    Max Pivot angle: 25 Deg.    Max Torque: 20.0 Nm    Max Static Comp. str. (Radial): 3550 N    Max Static Comp. str. (Axial): 1100 N
Part Number: GE-01000-02200-W300
Spherical Bushings - 10x22x14 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$9.95 AUD
$11.95 AUD $9.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
11.110
mm
+ 0.032 / + 0.102
(Equiv. 0.437 in.)
OD (d2)
23.810
mm

(Equiv. 0.937 in.)
Width (B)
14.280
mm

(Equiv. 0.562 in.)
Outer Width (C)
8.71
mm
Max Pivot angle
25
Deg.
Max Torque
30.0
Nm
Spherical Bushings - 11.11x23.81x14.28 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 3750 N    Max Static Comp. str. (Axial): 350 N
Part Number: GE-01111-02381-W300 (10 Pcs)
Spherical Bushings - 11.11x23.81x14.28 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$147.23 AUD
$176.67 AUD $147.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
11.110
mm
+ 0.032 / + 0.102
(Equiv. 0.437 in.)
OD (d2)
23.810
mm

(Equiv. 0.937 in.)
Width (B)
14.280
mm

(Equiv. 0.562 in.)
Outer Width (C)
8.71
mm
Spherical Bushings - 11.11x23.81x14.28 mm Plastic
Material: W300 Plastic    Max Pivot angle: 25 Deg.    Max Torque: 30.0 Nm    Max Static Comp. str. (Radial): 3750 N    Max Static Comp. str. (Axial): 350 N
Part Number: GE-01111-02381-W300 (10 Pcs)
Spherical Bushings - 11.11x23.81x14.28 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$147.23 AUD
$176.67 AUD $147.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
12.000
mm
+ 0.032 / + 0.102
(Equiv. 0.472 in.)
OD (d2)
22.000
mm

(Equiv. 0.866 in.)
Width (B)
10.000
mm

(Equiv. 0.394 in.)
Outer Width (C)
7.00
mm
Max Pivot angle
21
Deg.
Max Torque
25.0
Nm
Spherical Bushings - 12x22x10 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 2250 N    Max Static Comp. str. (Axial): 450 N
Part Number: GE-01200-02200-W300 (10 Pcs)
Spherical Bushings - 12x22x10 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$209.77 AUD
$251.73 AUD $209.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
12.000
mm
+ 0.032 / + 0.102
(Equiv. 0.472 in.)
OD (d2)
22.000
mm

(Equiv. 0.866 in.)
Width (B)
10.000
mm

(Equiv. 0.394 in.)
Outer Width (C)
7.00
mm
Spherical Bushings - 12x22x10 mm Plastic
Material: W300 Plastic    Max Pivot angle: 21 Deg.    Max Torque: 25.0 Nm    Max Static Comp. str. (Radial): 2250 N    Max Static Comp. str. (Axial): 450 N
Part Number: GE-01200-02200-W300 (10 Pcs)
Spherical Bushings - 12x22x10 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$209.77 AUD
$251.73 AUD $209.77 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
12.000
mm
+ 0.032 / + 0.102
(Equiv. 0.472 in.)
OD (d2)
26.000
mm

(Equiv. 1.024 in.)
Width (B)
16.000
mm

(Equiv. 0.63 in.)
Outer Width (C)
12.00
mm
Max Pivot angle
25
Deg.
Max Torque
30.0
Nm
Spherical Bushings - 12x26x16 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 4200 N    Max Static Comp. str. (Axial): 1150 N
Part Number: GE-01200-02600-W300 (10 Pcs)
Spherical Bushings - 12x26x16 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$164.86 AUD
$197.84 AUD $164.86 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
12.000
mm
+ 0.032 / + 0.102
(Equiv. 0.472 in.)
OD (d2)
26.000
mm

(Equiv. 1.024 in.)
Width (B)
16.000
mm

(Equiv. 0.63 in.)
Outer Width (C)
12.00
mm
Spherical Bushings - 12x26x16 mm Plastic
Material: W300 Plastic    Max Pivot angle: 25 Deg.    Max Torque: 30.0 Nm    Max Static Comp. str. (Radial): 4200 N    Max Static Comp. str. (Axial): 1150 N
Part Number: GE-01200-02600-W300 (10 Pcs)
Spherical Bushings - 12x26x16 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$164.86 AUD
$197.84 AUD $164.86 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
OD (d2)
26.990
mm

(Equiv. 1.063 in.)
Width (B)
15.880
mm

(Equiv. 0.625 in.)
Outer Width (C)
9.91
mm
Max Pivot angle
25
Deg.
Max Torque
35.0
Nm
Spherical Bushings - 12.7x26.99x15.88 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 4250 N    Max Static Comp. str. (Axial): 400 N
Part Number: GE-01270-02699-W300
Spherical Bushings - 12.7x26.99x15.88 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$24.32 AUD
$29.18 AUD $24.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
12.700
mm

(Equiv. 0.5 in.)
OD (d2)
26.990
mm

(Equiv. 1.063 in.)
Width (B)
15.880
mm

(Equiv. 0.625 in.)
Outer Width (C)
9.91
mm
Spherical Bushings - 12.7x26.99x15.88 mm - Plastic
Material: Plastic    Max Pivot angle: 25 Deg.    Max Torque: 35.0 Nm    Max Static Comp. str. (Radial): 4250 N    Max Static Comp. str. (Axial): 400 N
Part Number: GE-01270-02699-W300
Spherical Bushings - 12.7x26.99x15.88 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$24.32 AUD
$29.18 AUD $24.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
14.000
mm
+ 0.032 / + 0.102
(Equiv. 0.551 in.)
OD (d2)
28.000
mm

(Equiv. 1.102 in.)
Width (B)
19.000
mm

(Equiv. 0.748 in.)
Outer Width (C)
13.50
mm
Max Pivot angle
23
Deg.
Max Torque
35.0
Nm
Spherical Bushings - 14x28x19 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 5700 N    Max Static Comp. str. (Axial): 1200 N
Part Number: GE-01400-02800-W300 (10 Pcs)
Spherical Bushings - 14x28x19 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$186.68 AUD
$224.02 AUD $186.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
14.000
mm
+ 0.032 / + 0.102
(Equiv. 0.551 in.)
OD (d2)
28.000
mm

(Equiv. 1.102 in.)
Width (B)
19.000
mm

(Equiv. 0.748 in.)
Outer Width (C)
13.50
mm
Spherical Bushings - 14x28x19 mm Plastic
Material: W300 Plastic    Max Pivot angle: 23 Deg.    Max Torque: 35.0 Nm    Max Static Comp. str. (Radial): 5700 N    Max Static Comp. str. (Axial): 1200 N
Part Number: GE-01400-02800-W300 (10 Pcs)
Spherical Bushings - 14x28x19 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$186.68 AUD
$224.02 AUD $186.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
15.000
mm
+ 0.032 / + 0.102
(Equiv. 0.591 in.)
OD (d2)
26.000
mm

(Equiv. 1.024 in.)
Width (B)
12.000
mm

(Equiv. 0.472 in.)
Outer Width (C)
9.00
mm
Max Pivot angle
21
Deg.
Max Torque
30.0
Nm
Spherical Bushings - 15x26x12 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 3450 N    Max Static Comp. str. (Axial): 500 N
Part Number: GE-01500-02600-W300 (10 Pcs)
Spherical Bushings - 15x26x12 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$239.68 AUD
$287.62 AUD $239.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
15.000
mm
+ 0.032 / + 0.102
(Equiv. 0.591 in.)
OD (d2)
26.000
mm

(Equiv. 1.024 in.)
Width (B)
12.000
mm

(Equiv. 0.472 in.)
Outer Width (C)
9.00
mm
Spherical Bushings - 15x26x12 mm Plastic
Material: W300 Plastic    Max Pivot angle: 21 Deg.    Max Torque: 30.0 Nm    Max Static Comp. str. (Radial): 3450 N    Max Static Comp. str. (Axial): 500 N
Part Number: GE-01500-02600-W300 (10 Pcs)
Spherical Bushings - 15x26x12 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$239.68 AUD
$287.62 AUD $239.68 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
15.880
mm

(Equiv. 0.625 in.)
OD (d2)
30.160
mm

(Equiv. 1.187 in.)
Width (B)
19.050
mm

(Equiv. 0.75 in.)
Outer Width (C)
12.70
mm
Max Pivot angle
23
Deg.
Max Torque
40.0
Nm
Spherical Bushings - 15.88x30.16x19.05 mm - Plastic
Material: Plastic    Max Static Comp. str. (Radial): 5300 N    Max Static Comp. str. (Axial): 450 N
Part Number: GE-01588-03016-W300
Spherical Bushings - 15.88x30.16x19.05 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$23.41 AUD
$28.09 AUD $23.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
15.880
mm

(Equiv. 0.625 in.)
OD (d2)
30.160
mm

(Equiv. 1.187 in.)
Width (B)
19.050
mm

(Equiv. 0.75 in.)
Outer Width (C)
12.70
mm
Spherical Bushings - 15.88x30.16x19.05 mm - Plastic
Material: Plastic    Max Pivot angle: 23 Deg.    Max Torque: 40.0 Nm    Max Static Comp. str. (Radial): 5300 N    Max Static Comp. str. (Axial): 450 N
Part Number: GE-01588-03016-W300
Spherical Bushings - 15.88x30.16x19.05 mm - Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 09, 2025
$23.41 AUD
$28.09 AUD $23.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Bore (d1)
16.000
mm
+ 0.032 / + 0.102
(Equiv. 0.63 in.)
OD (d2)
28.000
mm

(Equiv. 1.102 in.)
Width (B)
13.000
mm

(Equiv. 0.512 in.)
Outer Width (C)
9.50
mm
Max Pivot angle
21
Deg.
Max Torque
32.0
Nm
Spherical Bushings - 16x28x13 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 3900 N    Max Static Comp. str. (Axial): 750 N
Part Number: GE-01600-02800-W300 (10 Pcs)
Spherical Bushings - 16x28x13 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$275.05 AUD
$330.05 AUD $275.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
16.000
mm
+ 0.032 / + 0.102
(Equiv. 0.63 in.)
OD (d2)
28.000
mm

(Equiv. 1.102 in.)
Width (B)
13.000
mm

(Equiv. 0.512 in.)
Outer Width (C)
9.50
mm
Spherical Bushings - 16x28x13 mm Plastic
Material: W300 Plastic    Max Pivot angle: 21 Deg.    Max Torque: 32.0 Nm    Max Static Comp. str. (Radial): 3900 N    Max Static Comp. str. (Axial): 750 N
Part Number: GE-01600-02800-W300 (10 Pcs)
Spherical Bushings - 16x28x13 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$275.05 AUD
$330.05 AUD $275.05 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
16.000
mm
+ 0.032 / + 0.102
(Equiv. 0.63 in.)
OD (d2)
32.000
mm

(Equiv. 1.26 in.)
Width (B)
21.000
mm

(Equiv. 0.827 in.)
Outer Width (C)
15.00
mm
Max Pivot angle
23
Deg.
Max Torque
40.0
Nm
Spherical Bushings - 16x32x21 mm Plastic
Material: W300 Plastic    Max Static Comp. str. (Radial): 7500 N    Max Static Comp. str. (Axial): 1800 N
Part Number: GE-01600-03200-W300 (10 Pcs)
Spherical Bushings - 16x32x21 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$208.41 AUD
$250.09 AUD $208.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Bore (d1)
16.000
mm
+ 0.032 / + 0.102
(Equiv. 0.63 in.)
OD (d2)
32.000
mm

(Equiv. 1.26 in.)
Width (B)
21.000
mm

(Equiv. 0.827 in.)
Outer Width (C)
15.00
mm
Spherical Bushings - 16x32x21 mm Plastic
Material: W300 Plastic    Max Pivot angle: 23 Deg.    Max Torque: 40.0 Nm    Max Static Comp. str. (Radial): 7500 N    Max Static Comp. str. (Axial): 1800 N
Part Number: GE-01600-03200-W300 (10 Pcs)
Spherical Bushings - 16x32x21 mm - W300 Plastic Bushing
Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025
$208.41 AUD
$250.09 AUD $208.41 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
