Bushings - Integral Taper

Bushings -> Integral Taper

There is only 1 product in the sub-categories of Bushings - Integral Taper. Browse the Bushings - Integral Taper products table.

Category Details

A selection of Integral Taper Bushings. Stainless Steel Taper Bushings.

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category may still be possible - please enquire.
  • Will not mar shafts.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushings - Integral Taper category on the Small Parts & Bearings online store.
Suitable Shaft Size (d) H7 Component ID (D) h7 Sleeve Length (l) Max. Torque Overall Length (L) +/-0.1 Indicative

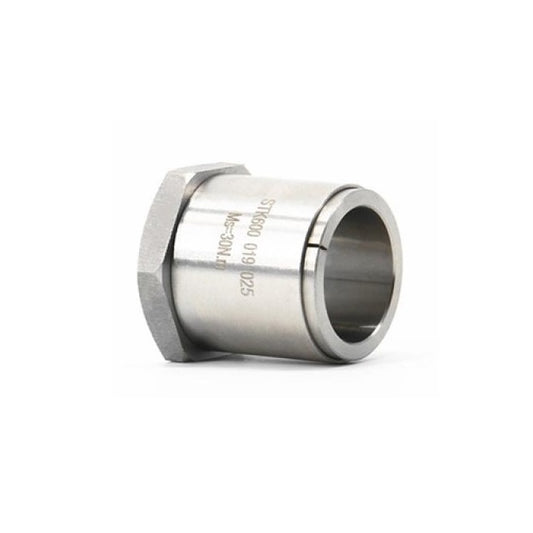

Integral Taper Bushings - 6.35x10x12.5 mm - Steel Bushing
Suitable Shaft Size (d) H7
6.350
mm
Component ID (D) h7
10.000
mm
Sleeve Length (l)
12.500
mm
Max. Torque
7
N.m
Overall Length (L) +/-0.1
15.00
mm
Integral Taper Bushings - 6.35x10x12.5 mm
Material: Steel    Bore Tolerances: +.012/-.000 mm    OD Tolerance: +.000/-.015 mm    Dimension Across Flats: 10 mm    Thread Size (T): M8x0.5
Deleted Item. Available while stocks last.
Part Number: BIT-064-10 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft Size (d) H7 Component ID (D) h7 Sleeve Length (l) Max. Torque Indicative

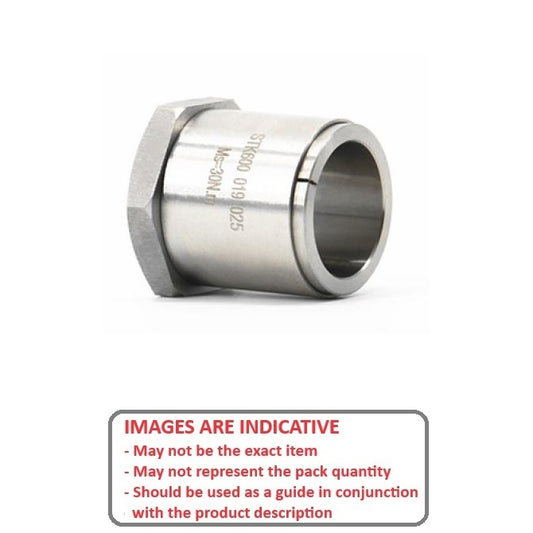

Integral Taper Bushings - 6.35x10x12.5 mm - Steel Bushing
Suitable Shaft Size (d) H7
6.350
mm
Component ID (D) h7
10.000
mm
Sleeve Length (l)
12.500
mm
Max. Torque
7
N.m
Integral Taper Bushings - 6.35x10x12.5 mm
Material: Steel    Overall Length (L) +/-0.1: 15.00 mm    Bore Tolerances: +.012/-.000 mm    OD Tolerance: +.000/-.015 mm    Dimension Across Flats: 10 mm    Thread Size (T): M8x0.5
Deleted Item. Available while stocks last.
Part Number: BIT-064-10 (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$25.00 AUD
$47.50 AUD $25.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
